Service Specifications

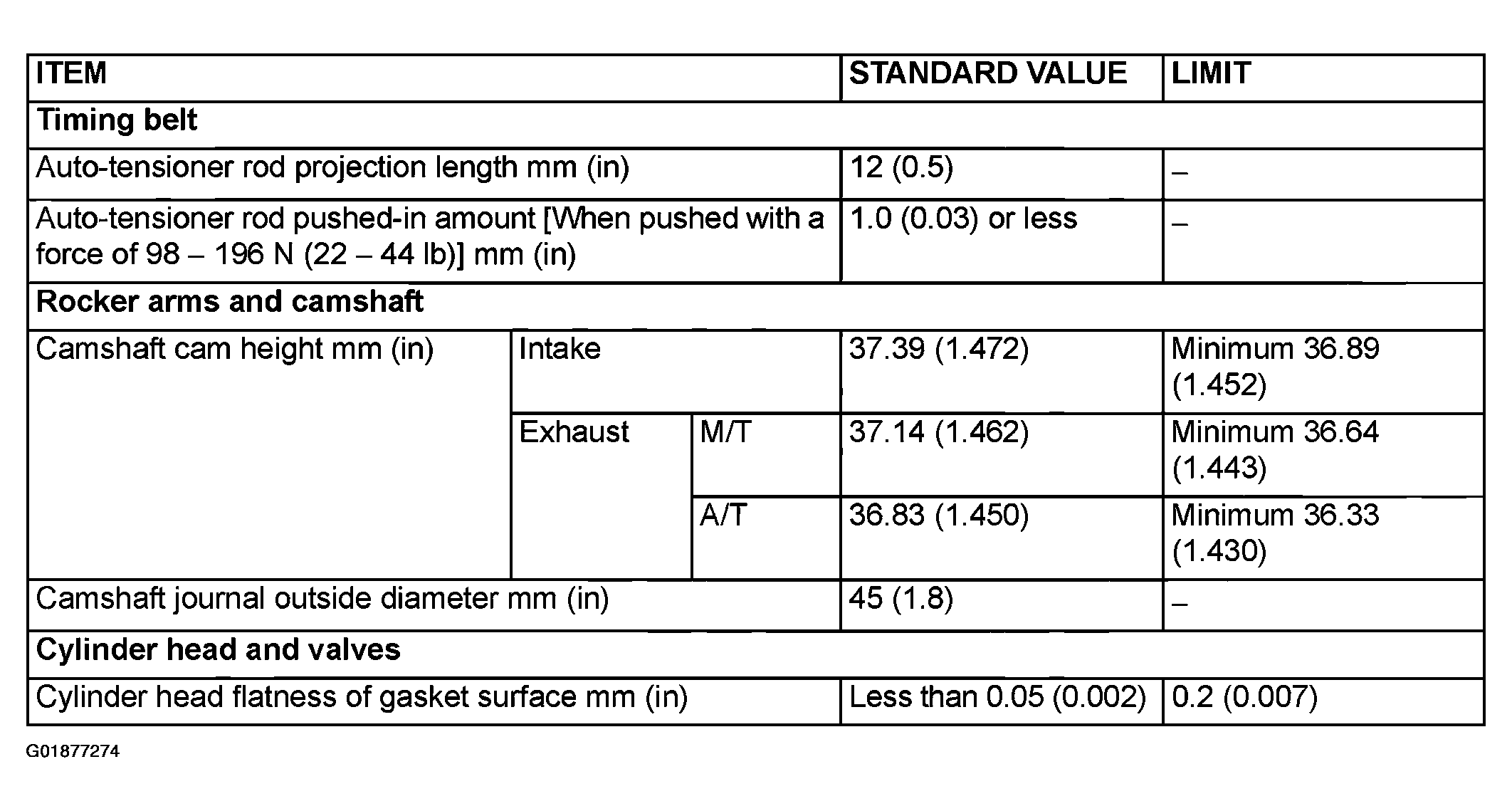

Fig 1: Service Specifications Table (1 Of 3)
G01877274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

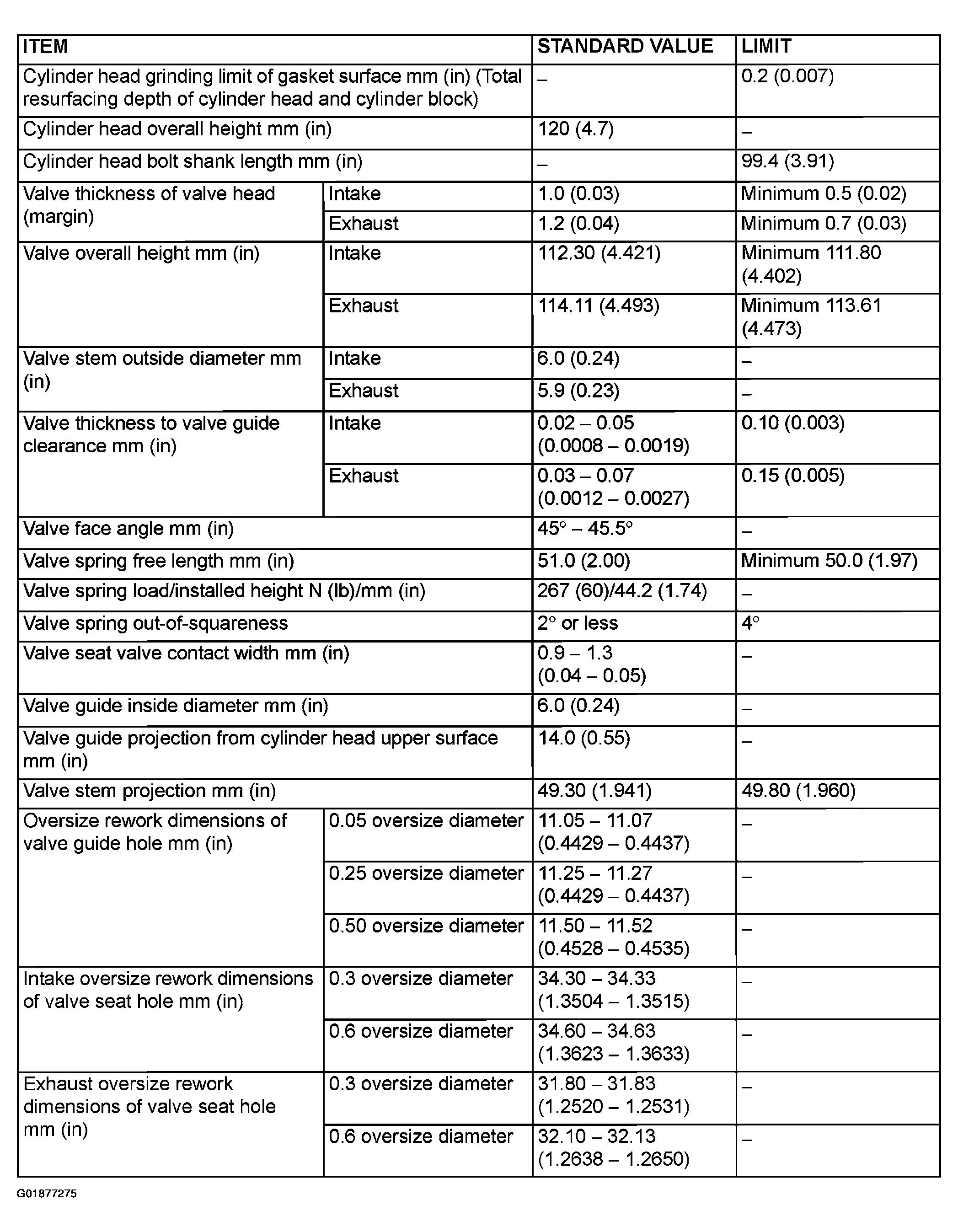

Fig 2: Service Specifications Table (2 Of 3)
G01877275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

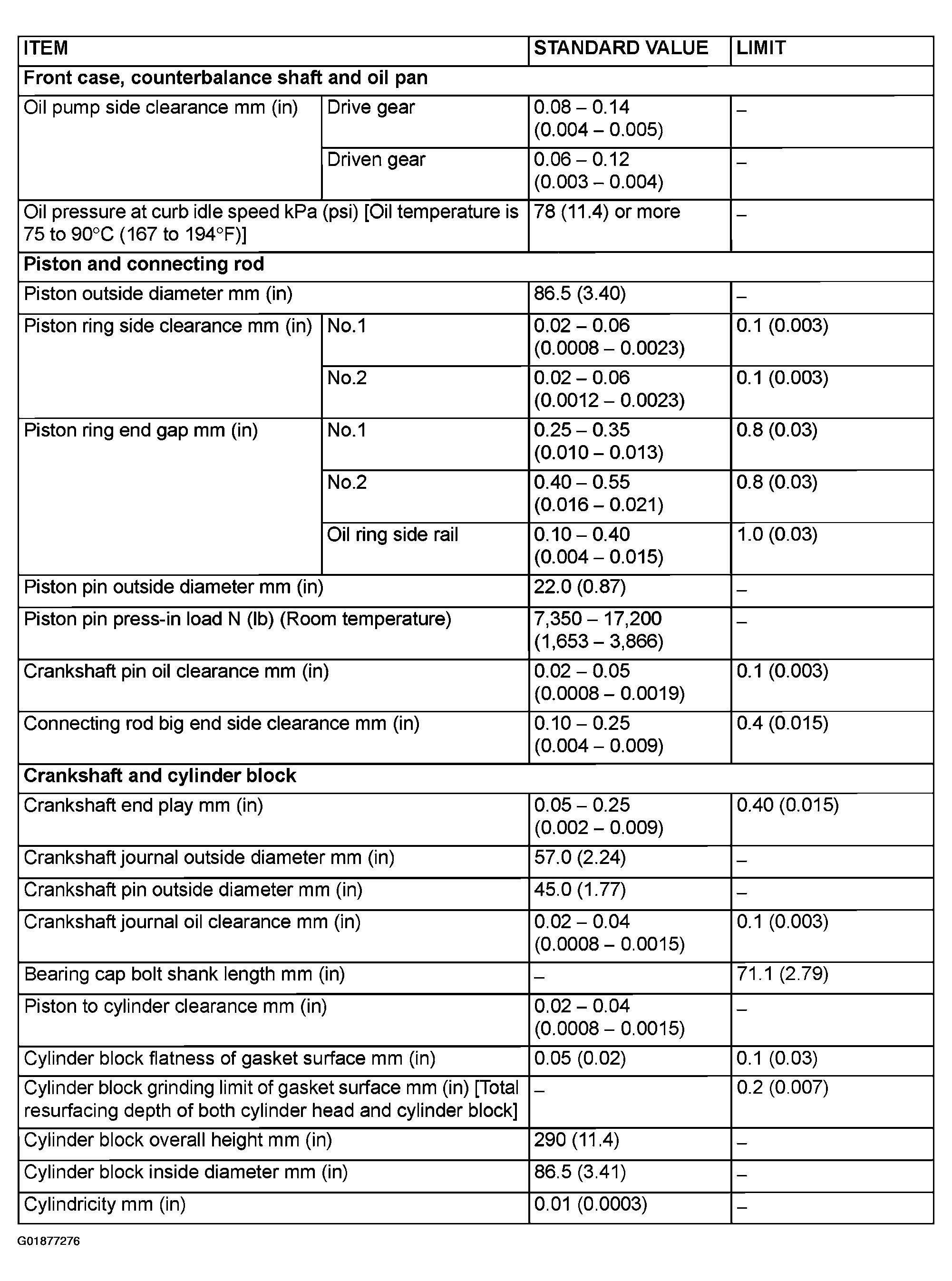

Fig 3: Service Specifications Table (3 Of 3)
G01877276Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
