Service Specifications

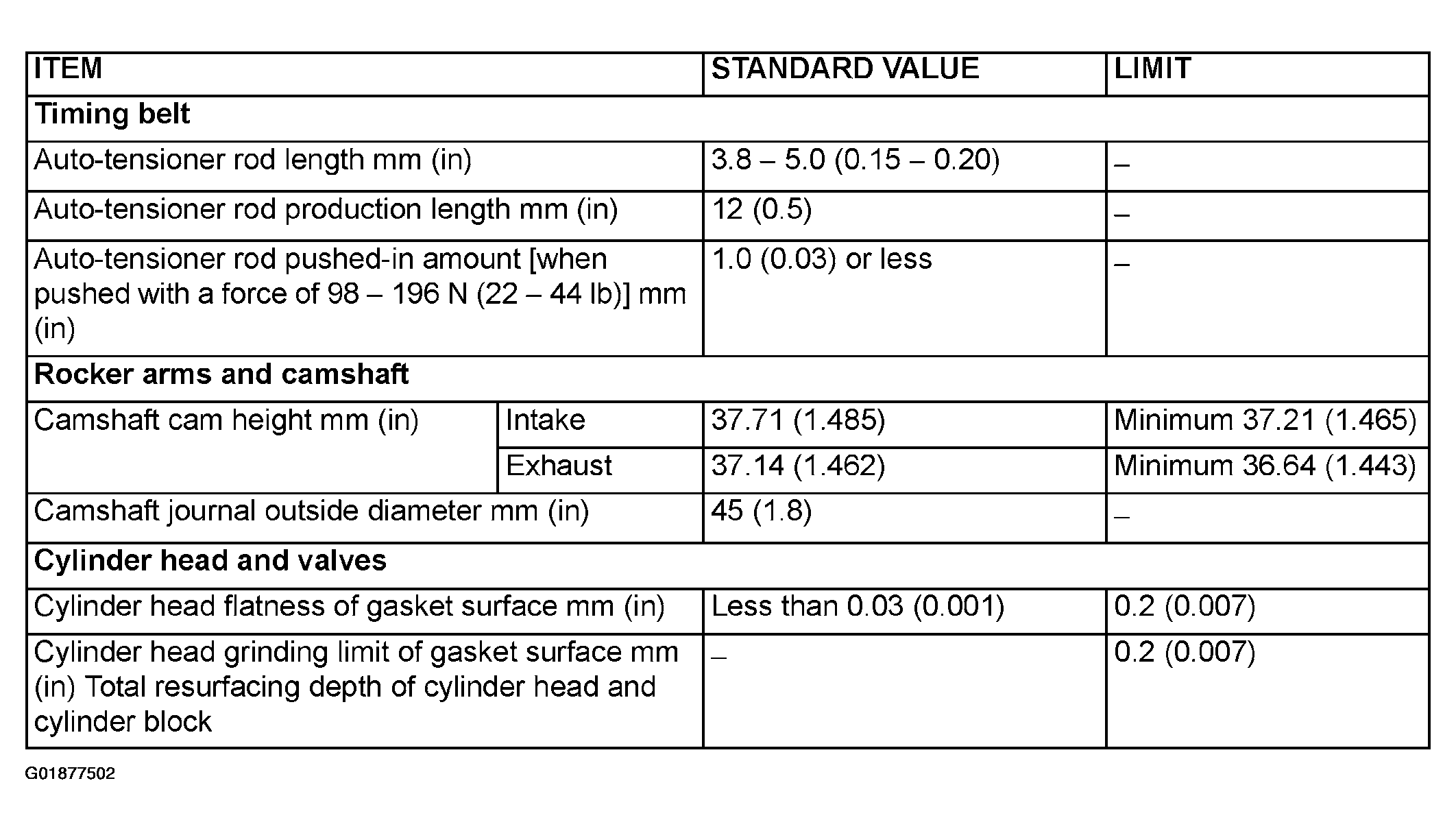

Fig 1: Service Specifications (1 Of 3)
G01877502Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

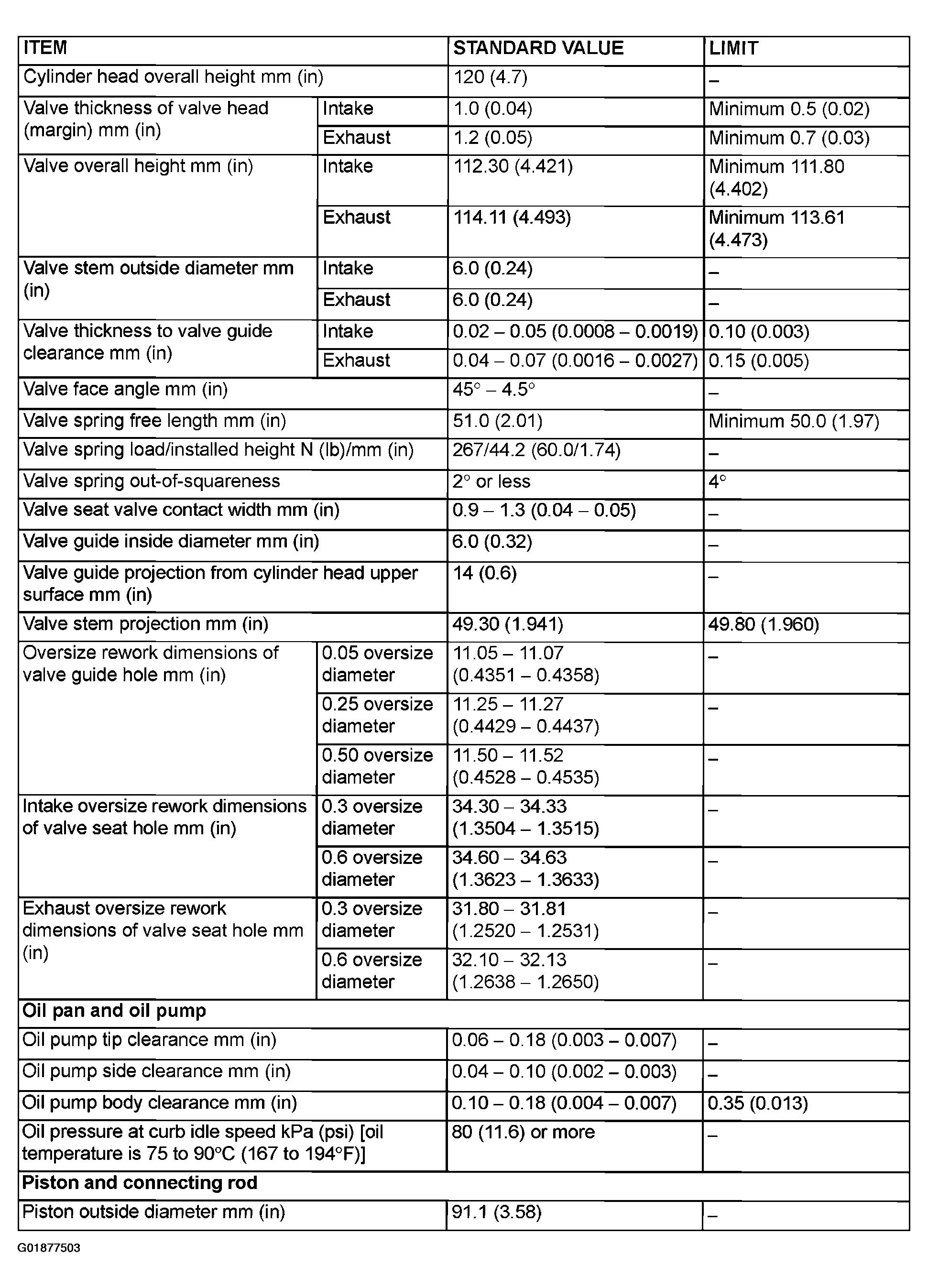

Fig 2: Service Specifications (2 Of 3)
G01877503Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

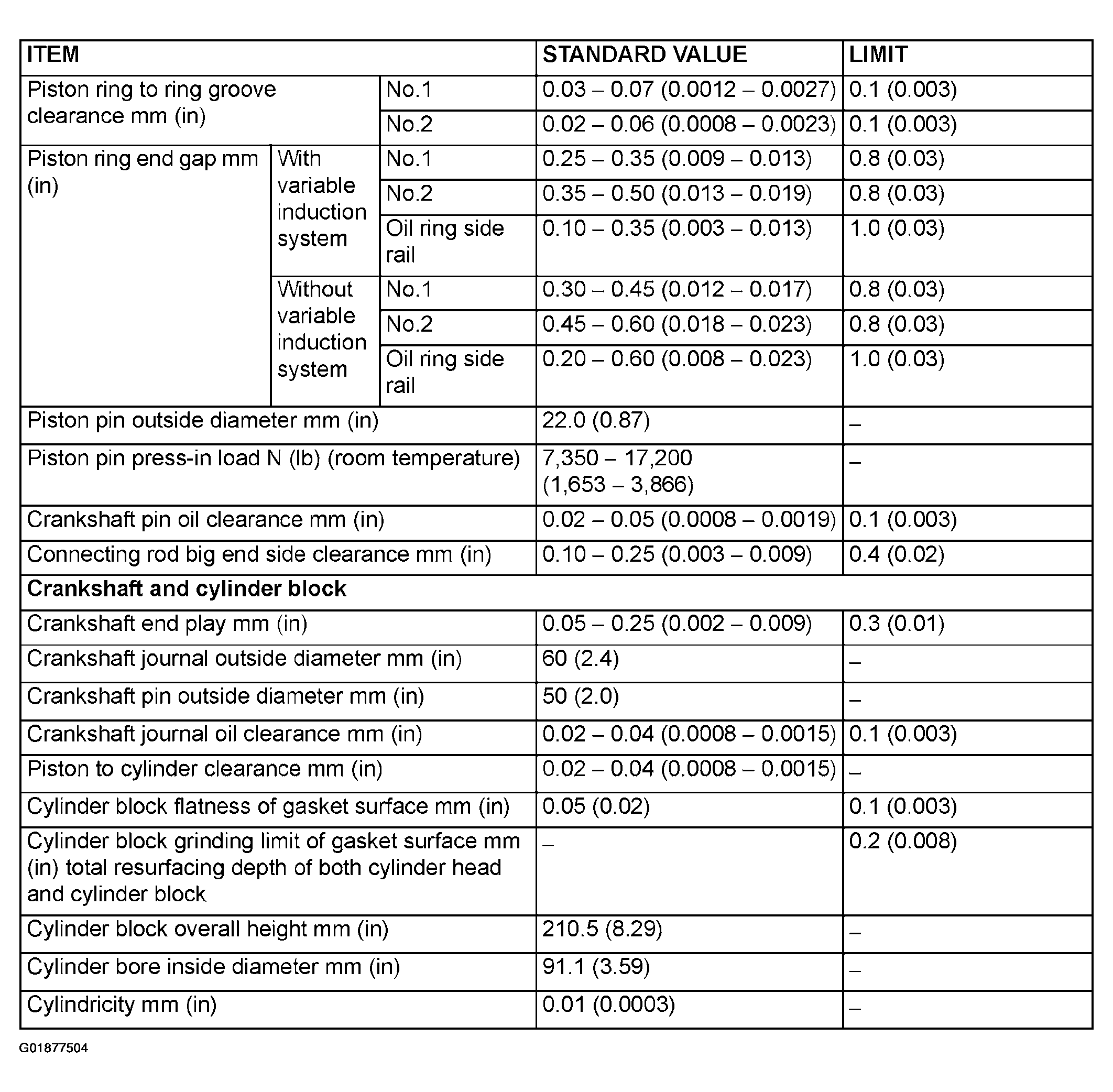

Fig 3: Service Specifications (3 Of 3)
G01877504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
