>>K<< Thrust Plate Stopper Installation

Install the thrust plate stopper by pressing special tools MD998812, MD998813, MD998824 < F5M42 > and MD998825 < F5M51 > by hand. Make sure that it is not tilted.

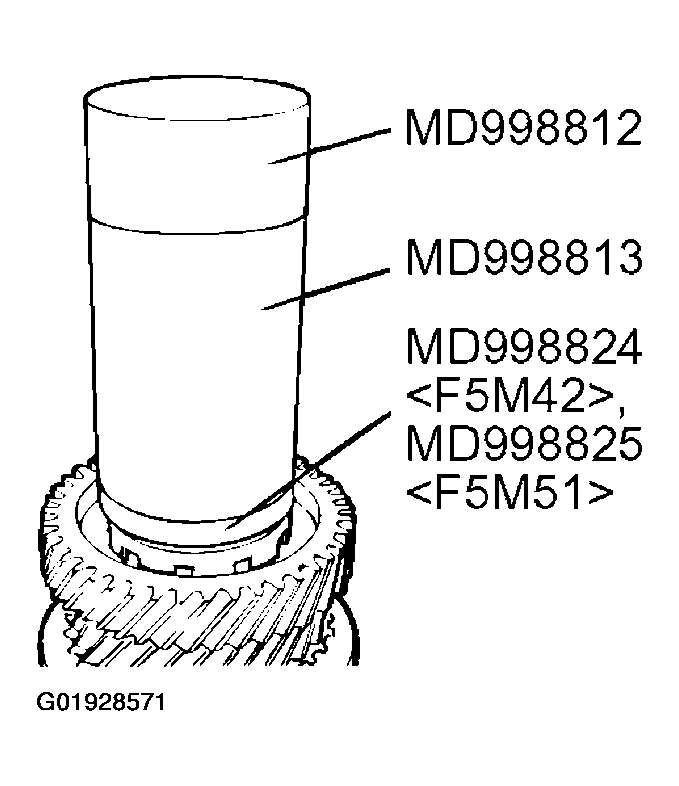

Fig 1: Installing Thrust Plate Stopper
G01928571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
