>>G<< 1ST-2ND Speed Synchronizer Hub Installation

Set the output shaft on the press support stand.
Check that the 1st-2nd speed synchronizer hub is in the correct installation direction, and put it on the output shaft.
Using special tools MD998812, MD998814, MD998825 < F5M42 >, MD998824 < F5M51 > and MD998364 < F5M51 >, press install the 1st-2nd speed synchronizer hub with the press.
Make sure that the outer synchronizer ring on the 1st speed gear side can rotate freely.

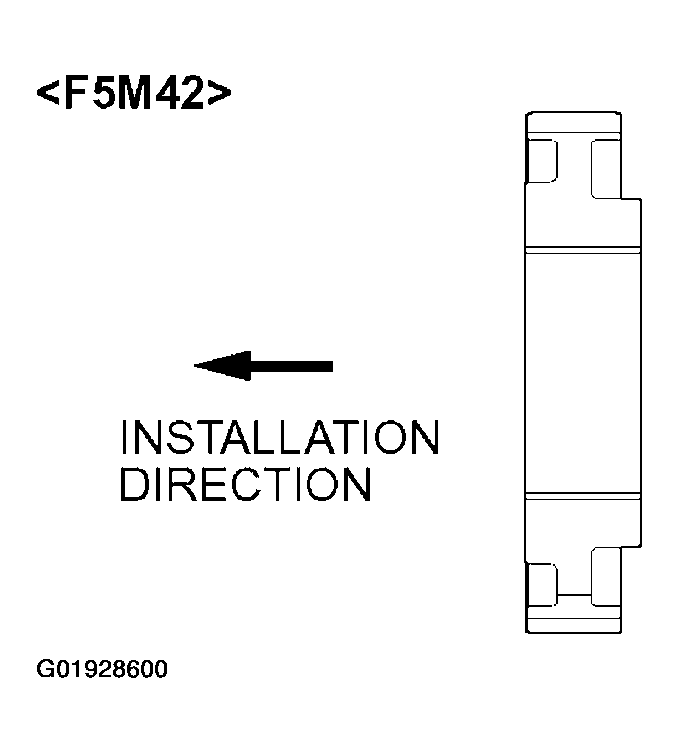

Fig 1: Identifying Installation Direction Of 1St-2Nd Speed Synchronizer Hub F5M42
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

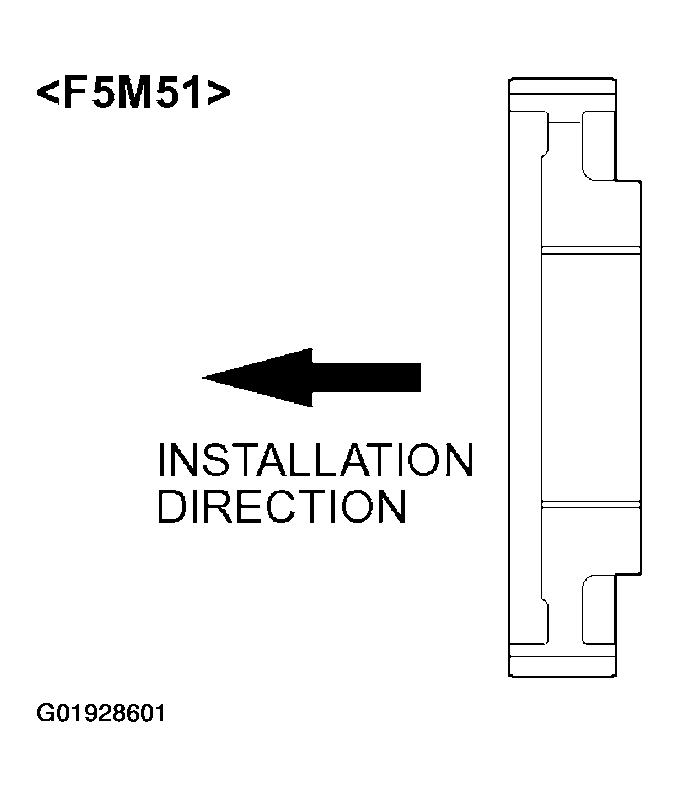

Fig 2: Identifying Installation Direction Of 1St-2Nd Speed Synchronizer Hub F5M51
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

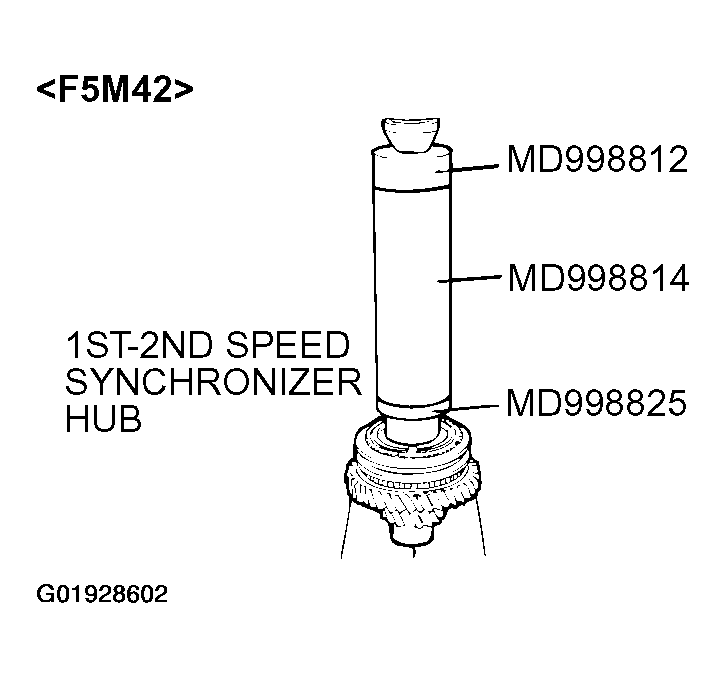

Fig 3: Installing 1St-2Nd Speed Synchronizer Hub F5M42
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

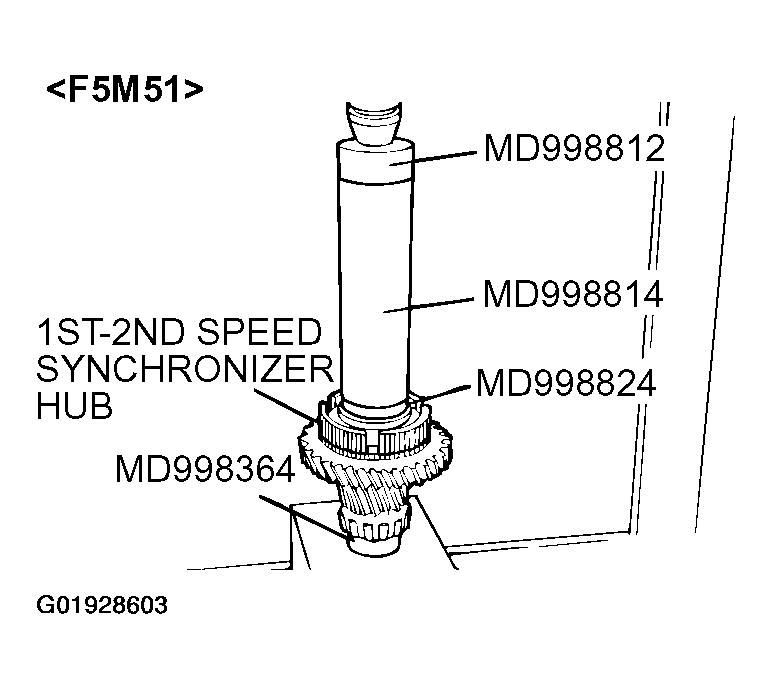

Fig 4: Installing 1St-2Nd Speed Synchronizer Hub F5M51
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
