Disassembly And Assembly: Notes

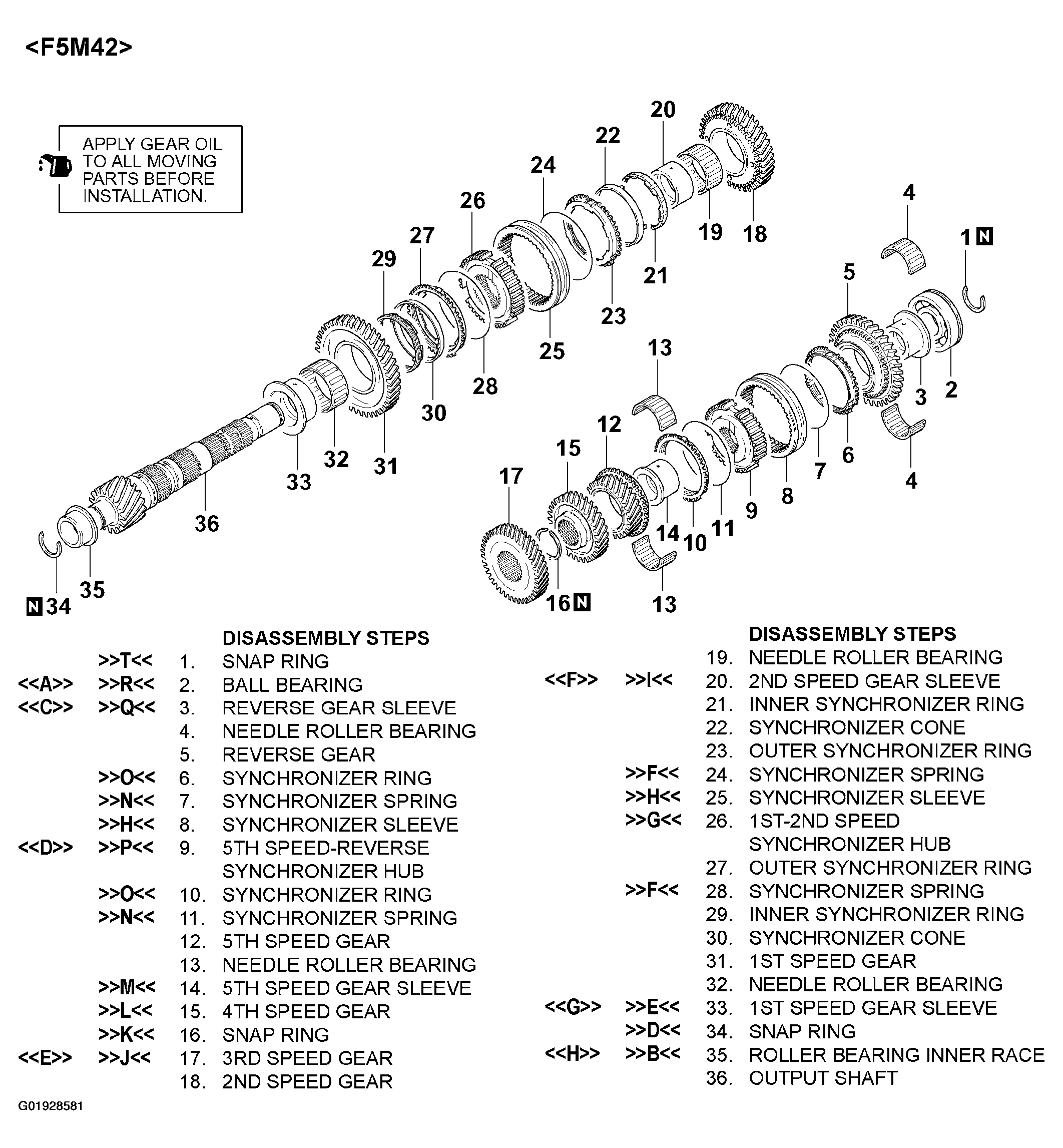

Fig 1: Exploded View Of Output Shaft F5M42

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998364: Camshaft Oil Seal Installer < F5M51 >
• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer- 100 < F5M42 >
• MD998814: Installer-200
• MD998818: Installer Adapter (38) < F5M42 >
• MD998819: Installer Adapter (40)
• MD998820: Installer Adapter (42) < F5M51 >
• MD998821: Installer Adapter (44) < F5M51 >
• MD998824: Installer Adapter (46) < F5M42 >
• MD998825: Installer Adapter (50) < F5M51 >
• MD998817: Bearing Remover

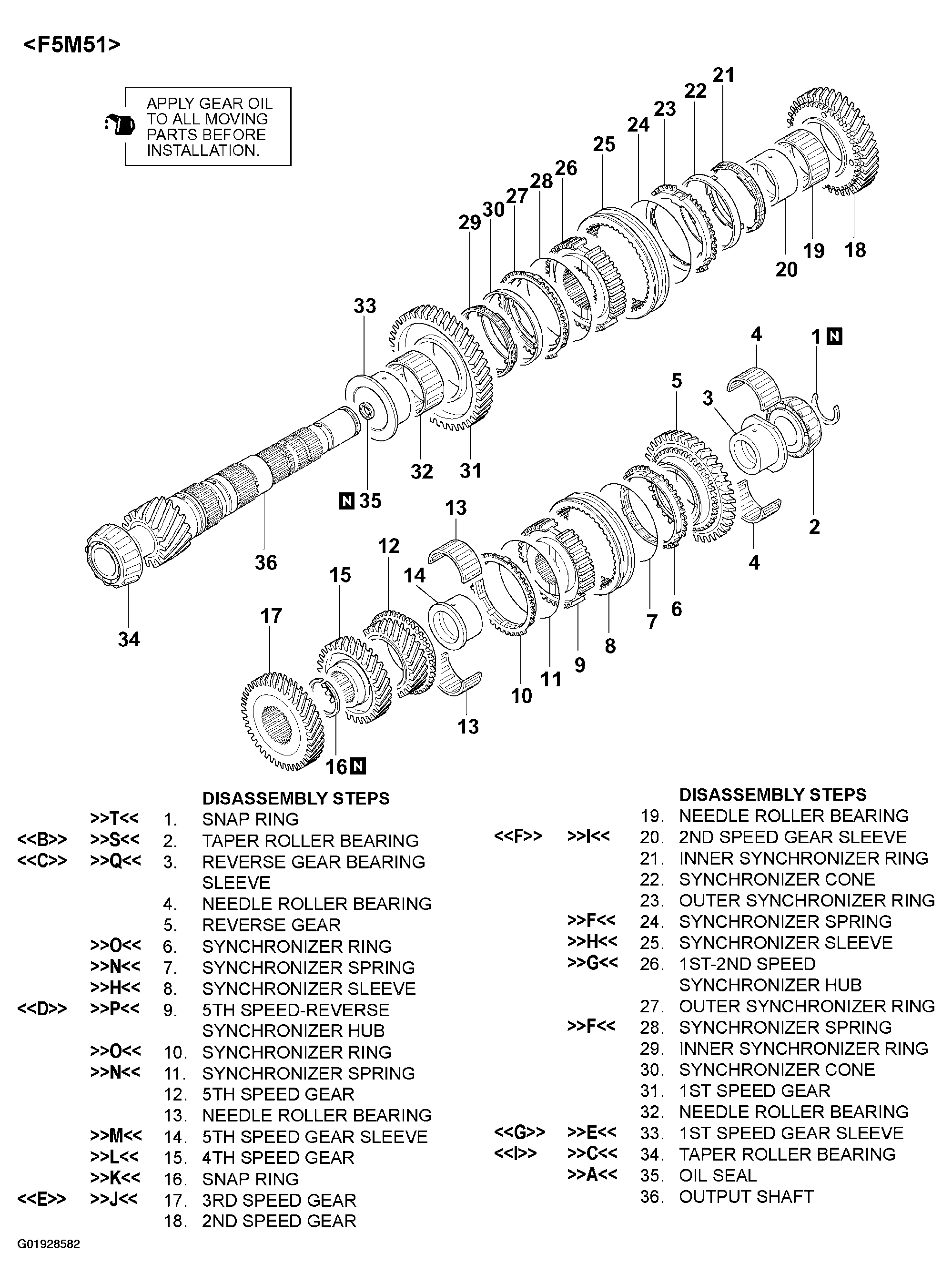

Fig 2: Exploded View Of Output Shaft F5M51

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
