Synchronizer Spring

Check that the spring is not sagging, deformed or broken.

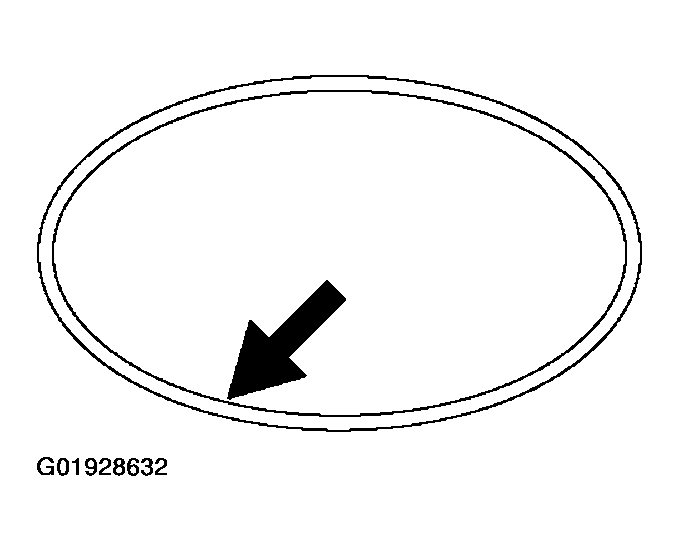

Fig 1: Locating Synchronizer Spring
G01928632Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
