Disassembly And Assembly: Notes

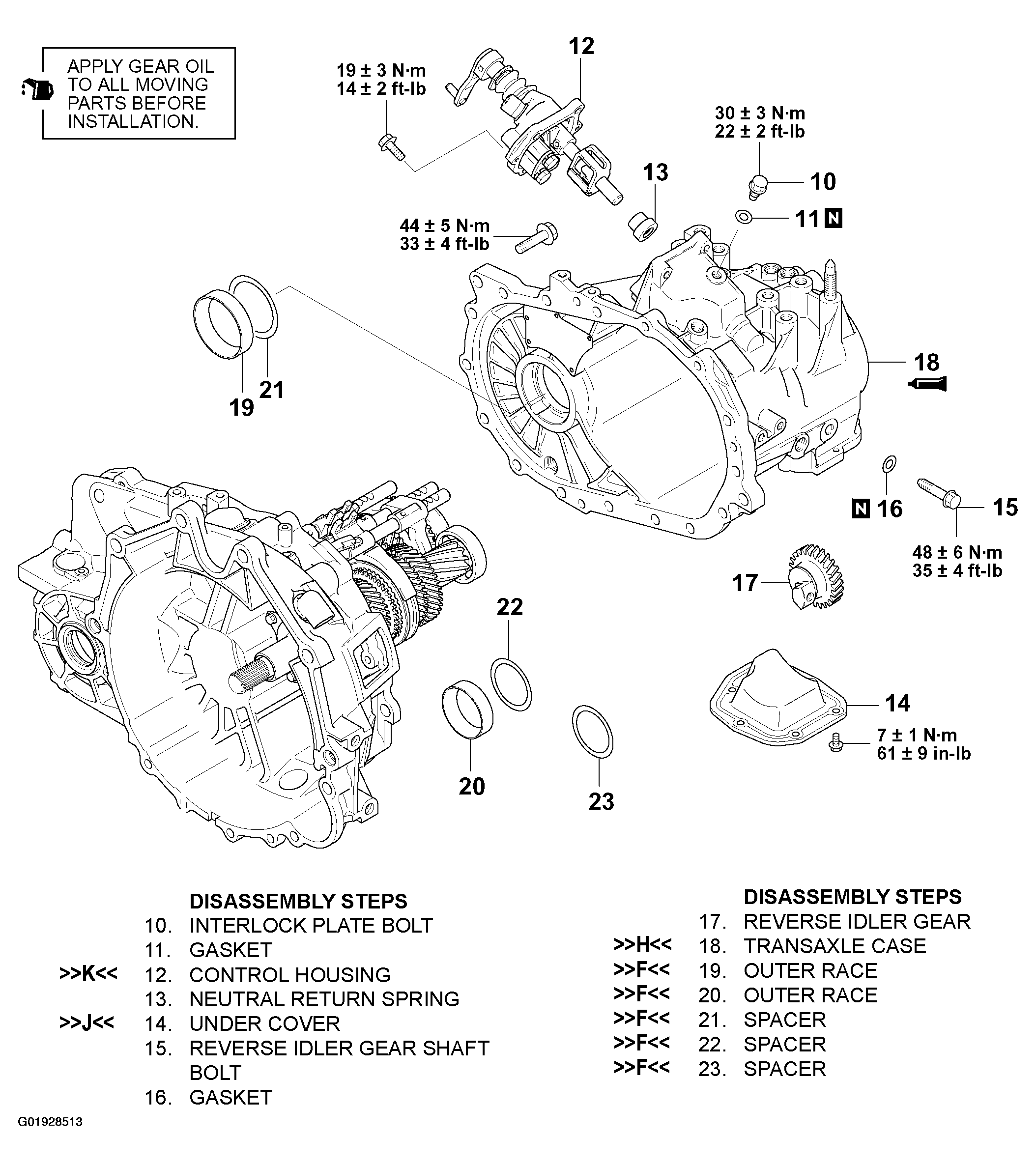

Fig 1: Exploded View And Torque Specifications Of Transaxle(Transmission) F5M42 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990927: Installer Adapter < F5M42 >
• MB990935: Installer Adapter
• MB990938: Handle

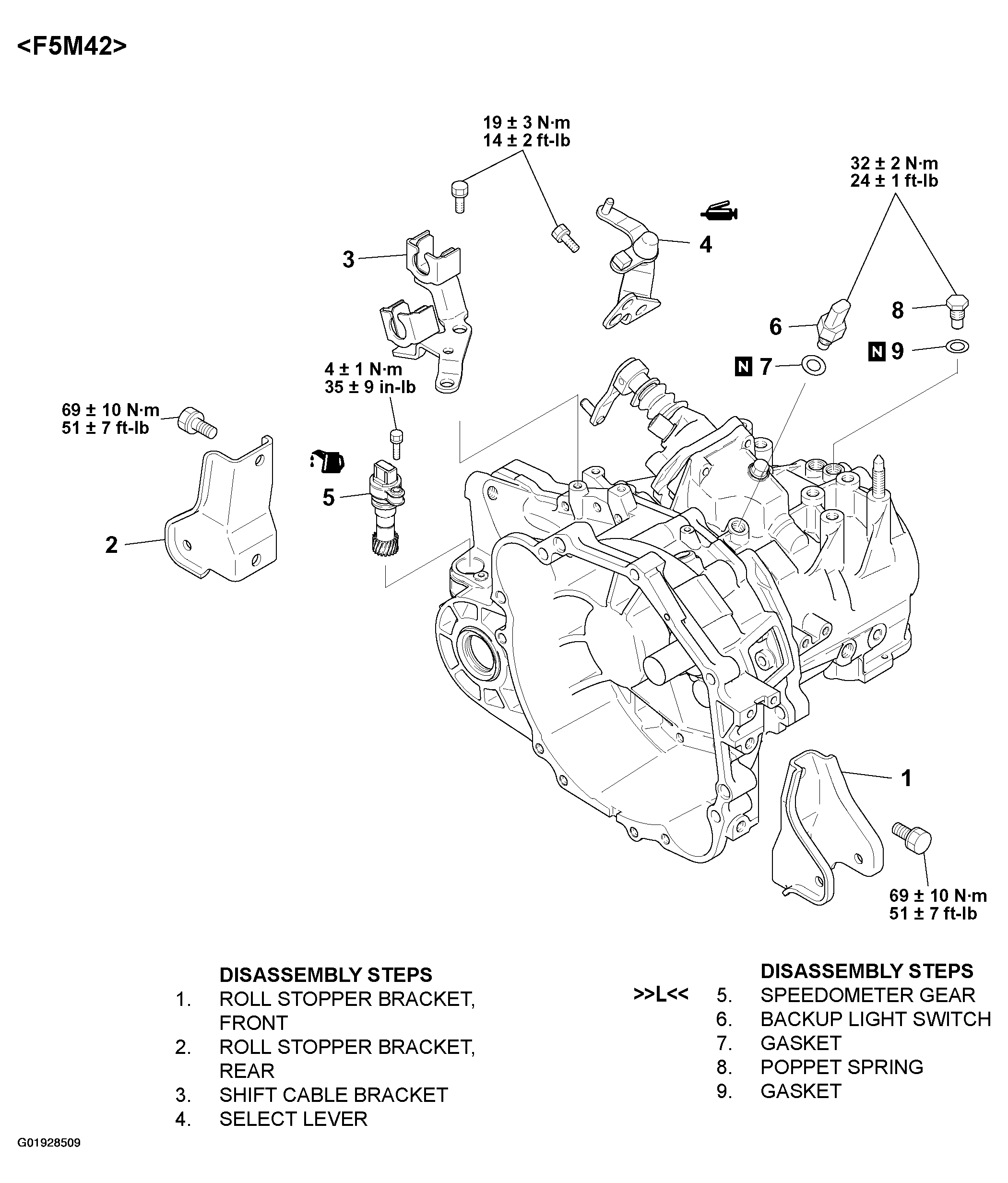

Fig 2: Exploded View And Torque Specifications Of Transaxle (Transmission) F5M42 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

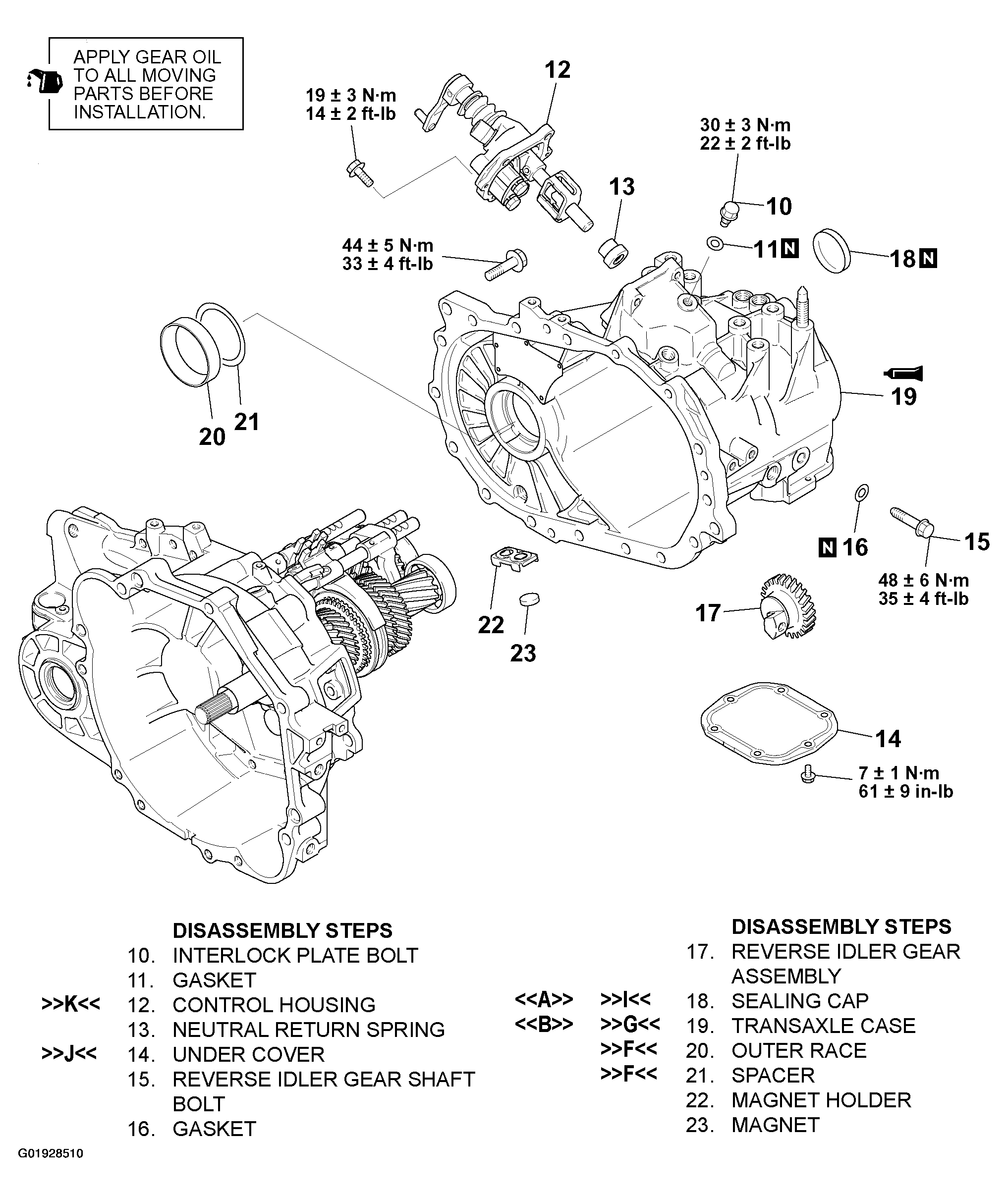

Fig 3: Exploded View And Torque Specifications Of Transaxle (Transmission) F5M42 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

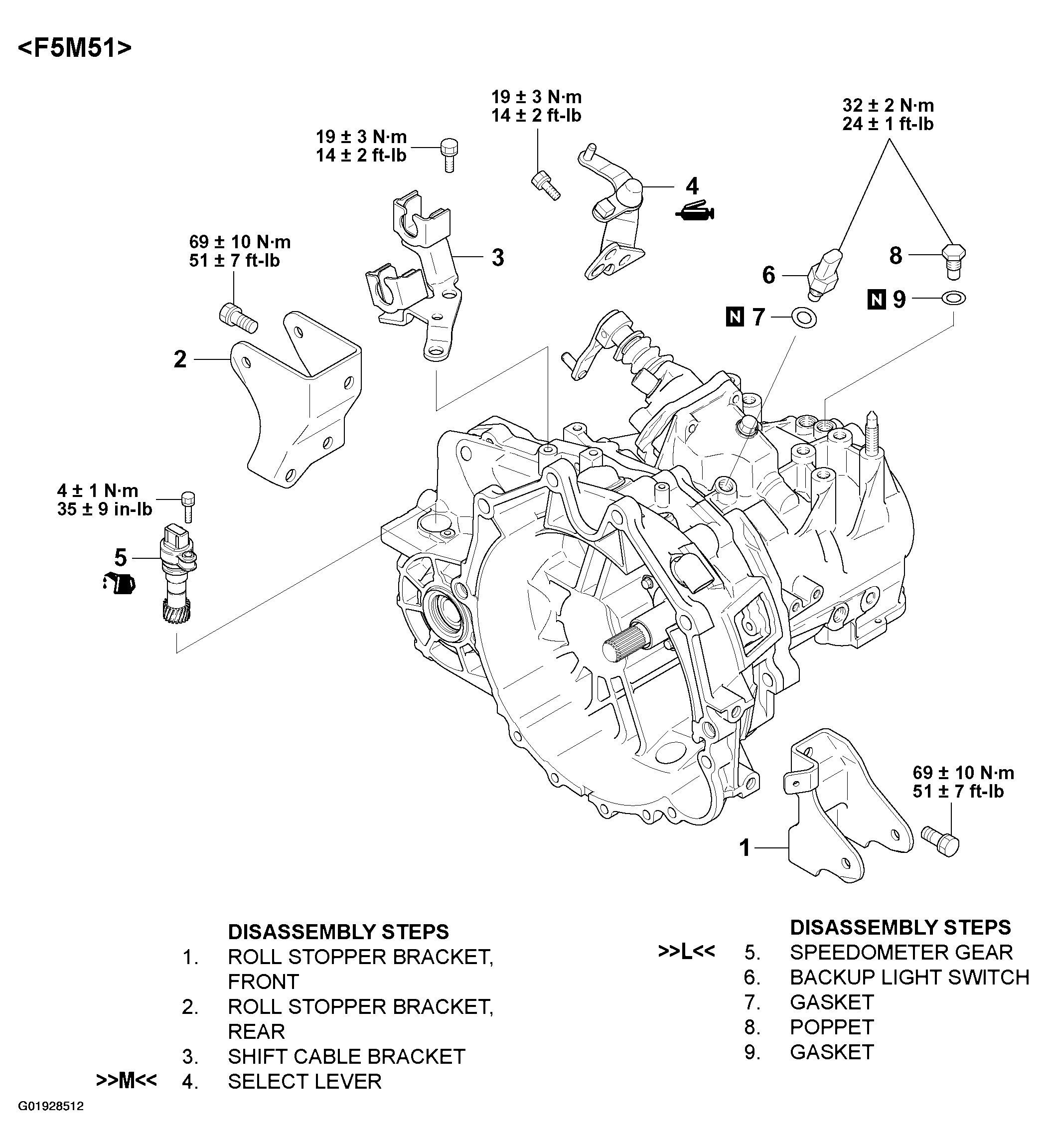

Fig 4: Exploded View And Torque Specifications Of Manual Transaxle (Transmission) F5M51 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

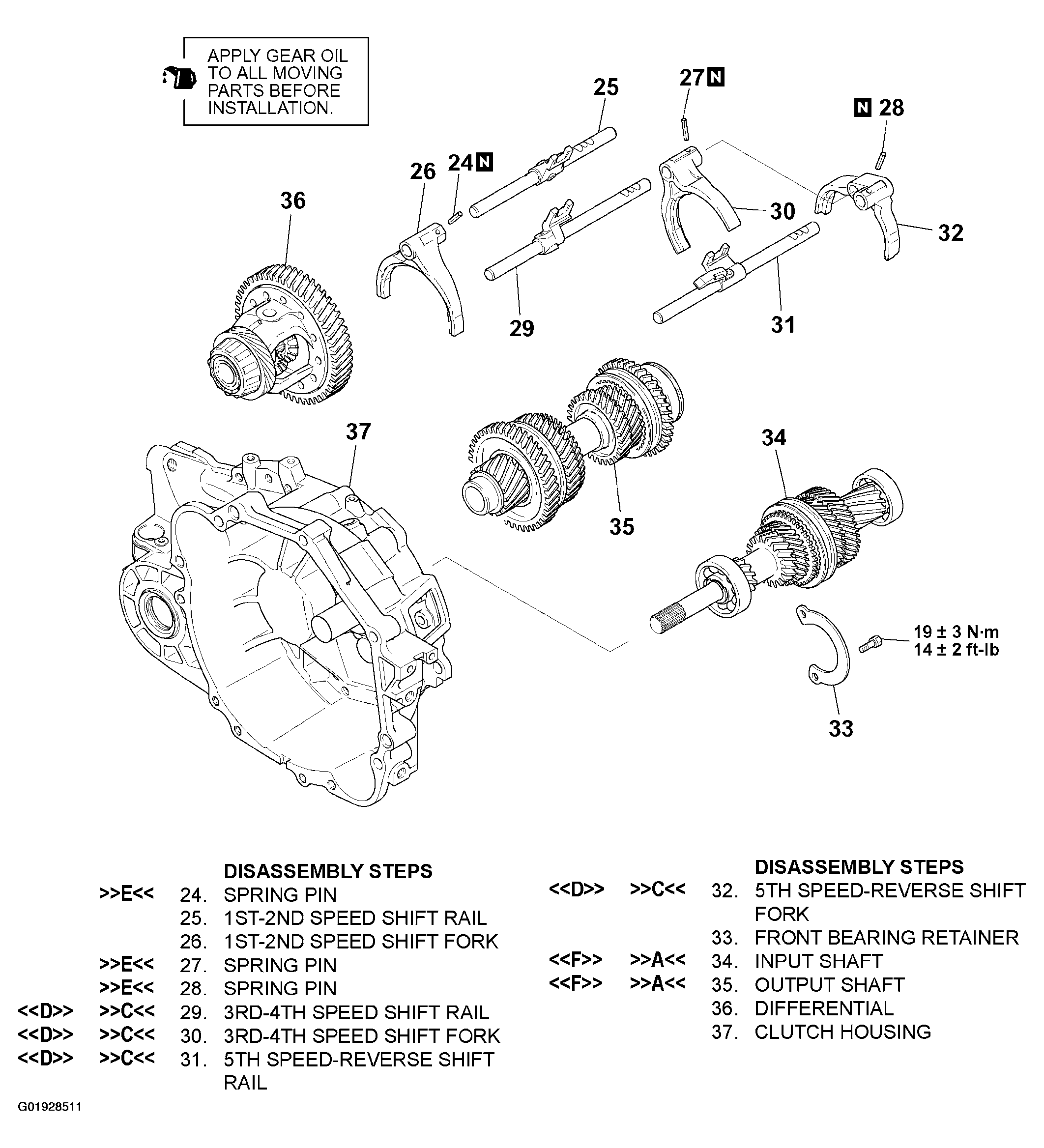

Fig 5: Exploded View And Torque Specifications Of Manual Transaxle (Transmission) F5M51 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

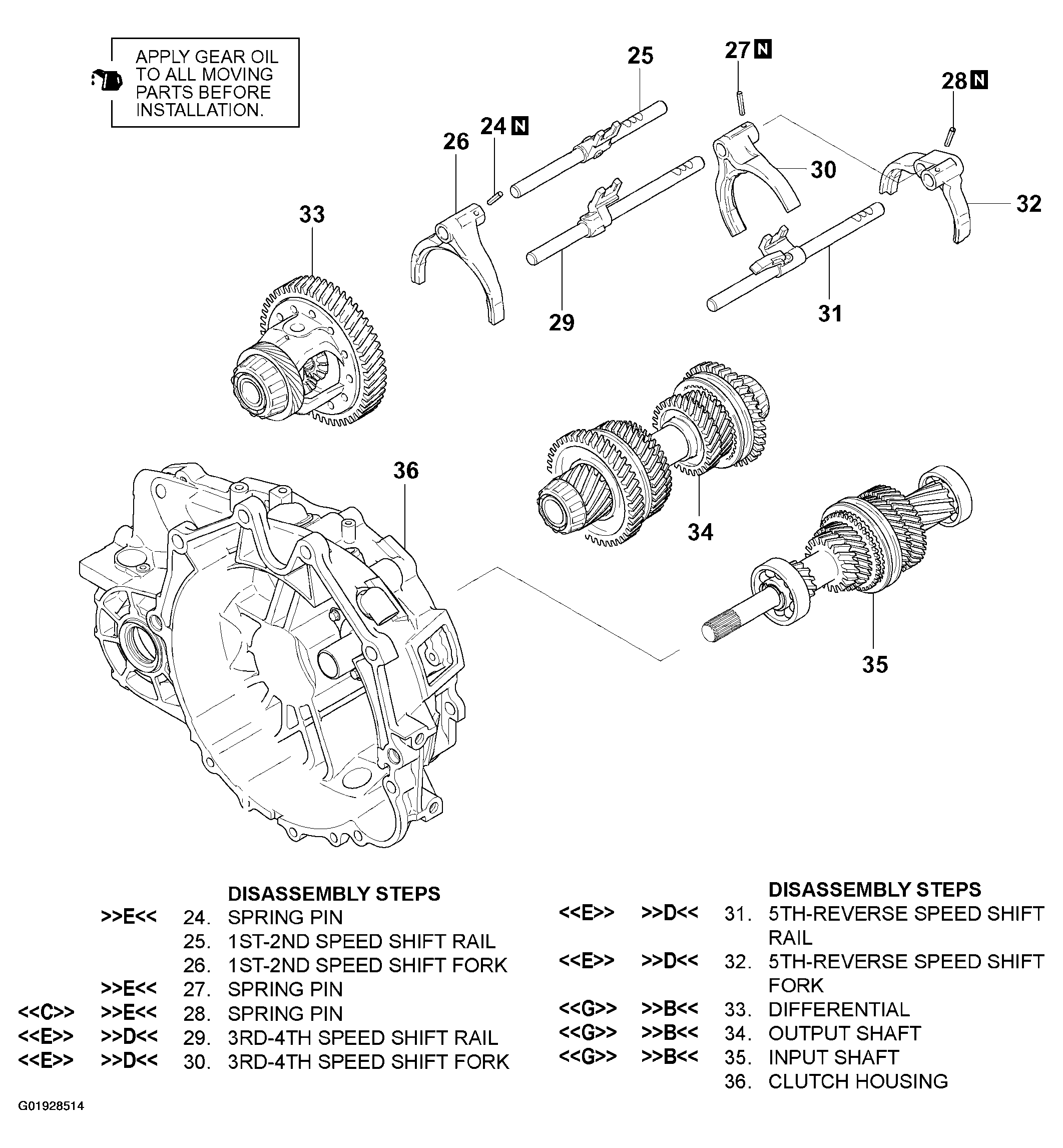

Fig 6: Exploded View And Torque Specifications Of Manual Transaxle (Transmission) F5M51 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
