INSPECTION PROCEDURE 4: The TCL Indicator Light Remains Illuminated After the Engine is started.: Notes

NOTE: This diagnosis procedure is limited to cases where communication with the scan tool is possible (ABS-ECU power supply is normal) and no diagnostic trouble code is set.

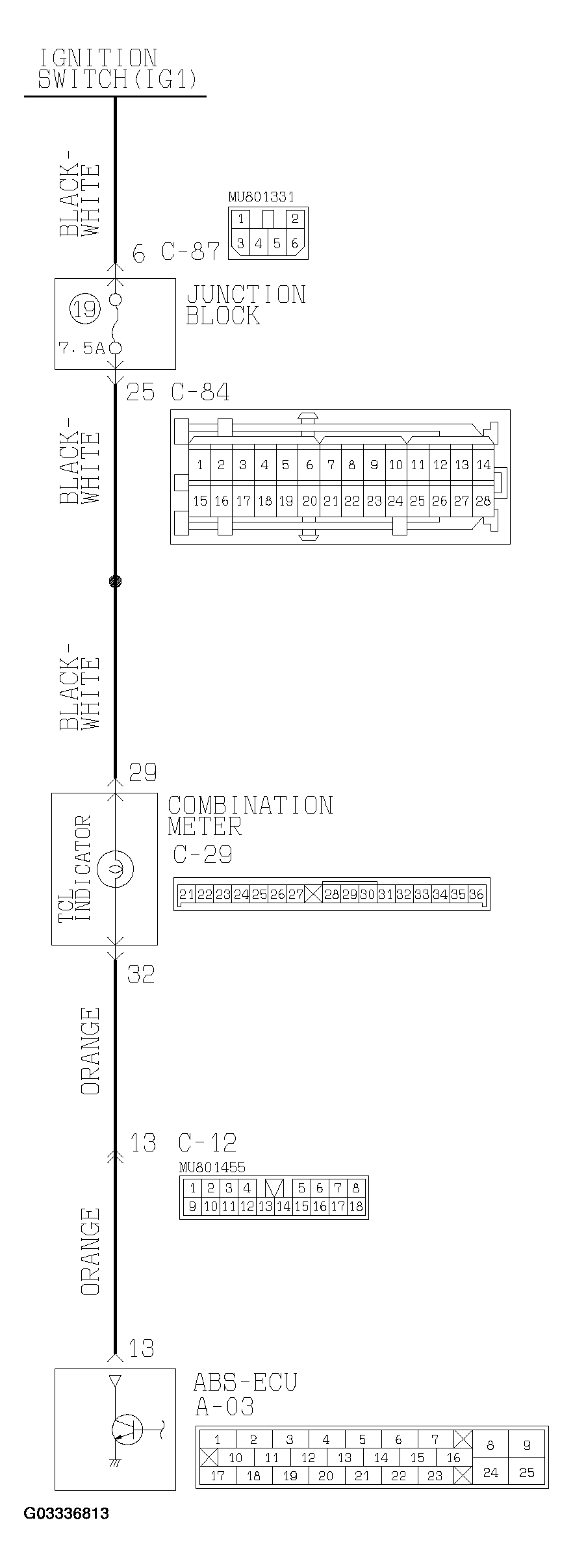

Fig 1: TCL Indicator Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

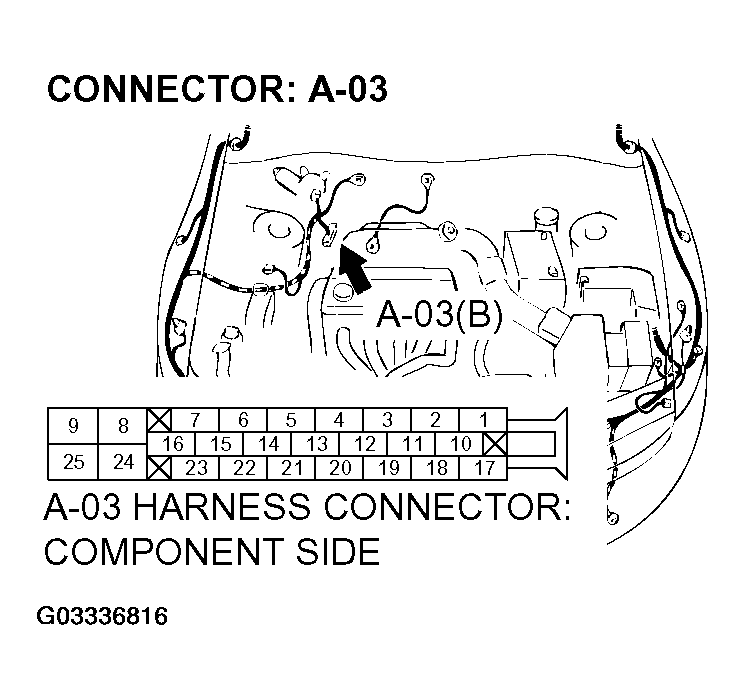

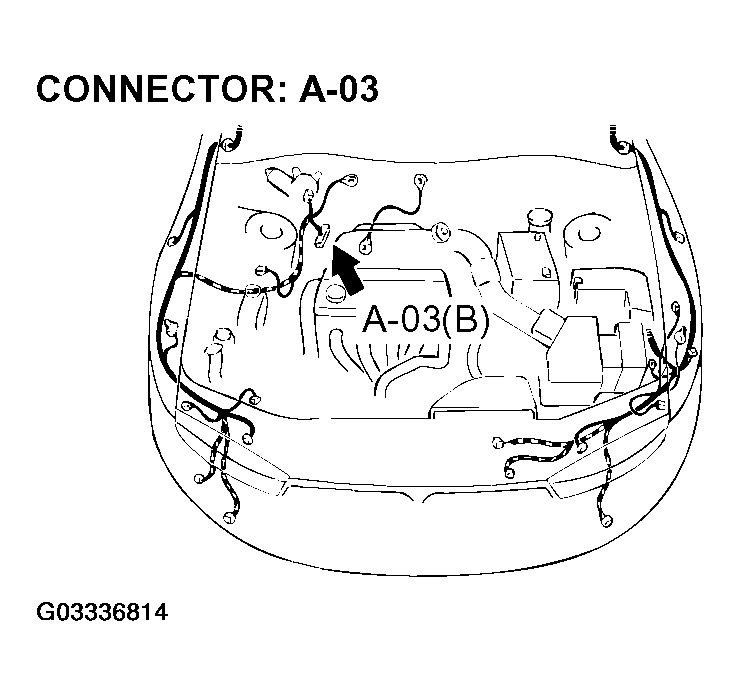

Fig 2: Identifying Connector A-03

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

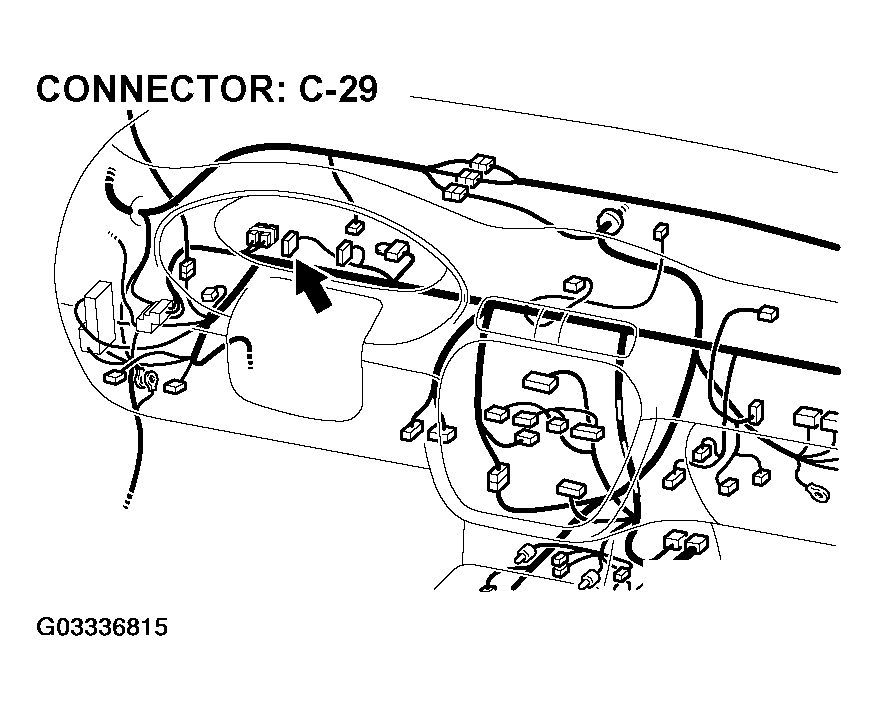

Fig 3: Identifying Connector C-29

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Connector C-12

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
