Basic Brake System
MASTER CYLINDER OVERHAUL W/ RELATED COMPONENTS

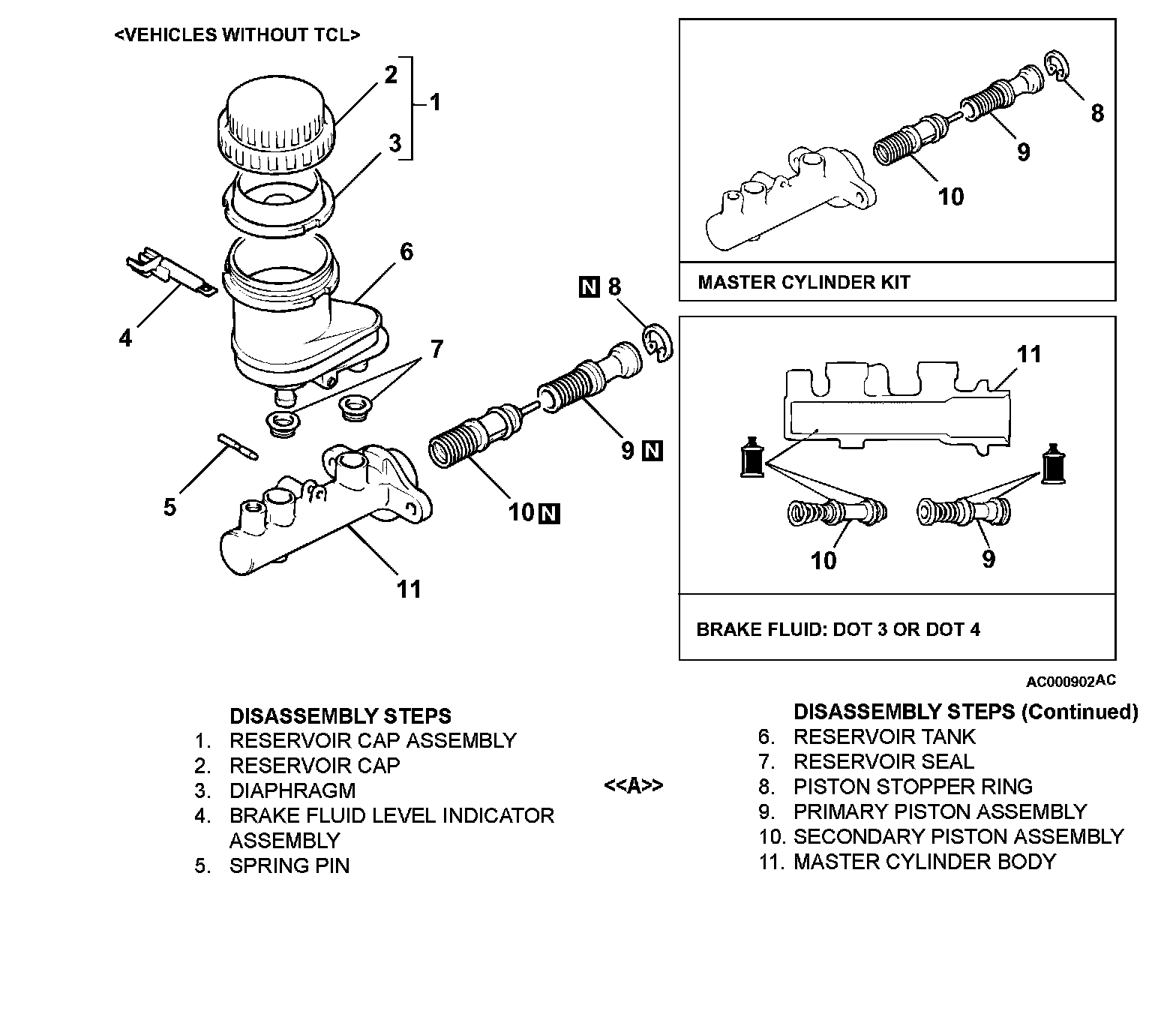

VEHICLES WITHOUT TCL

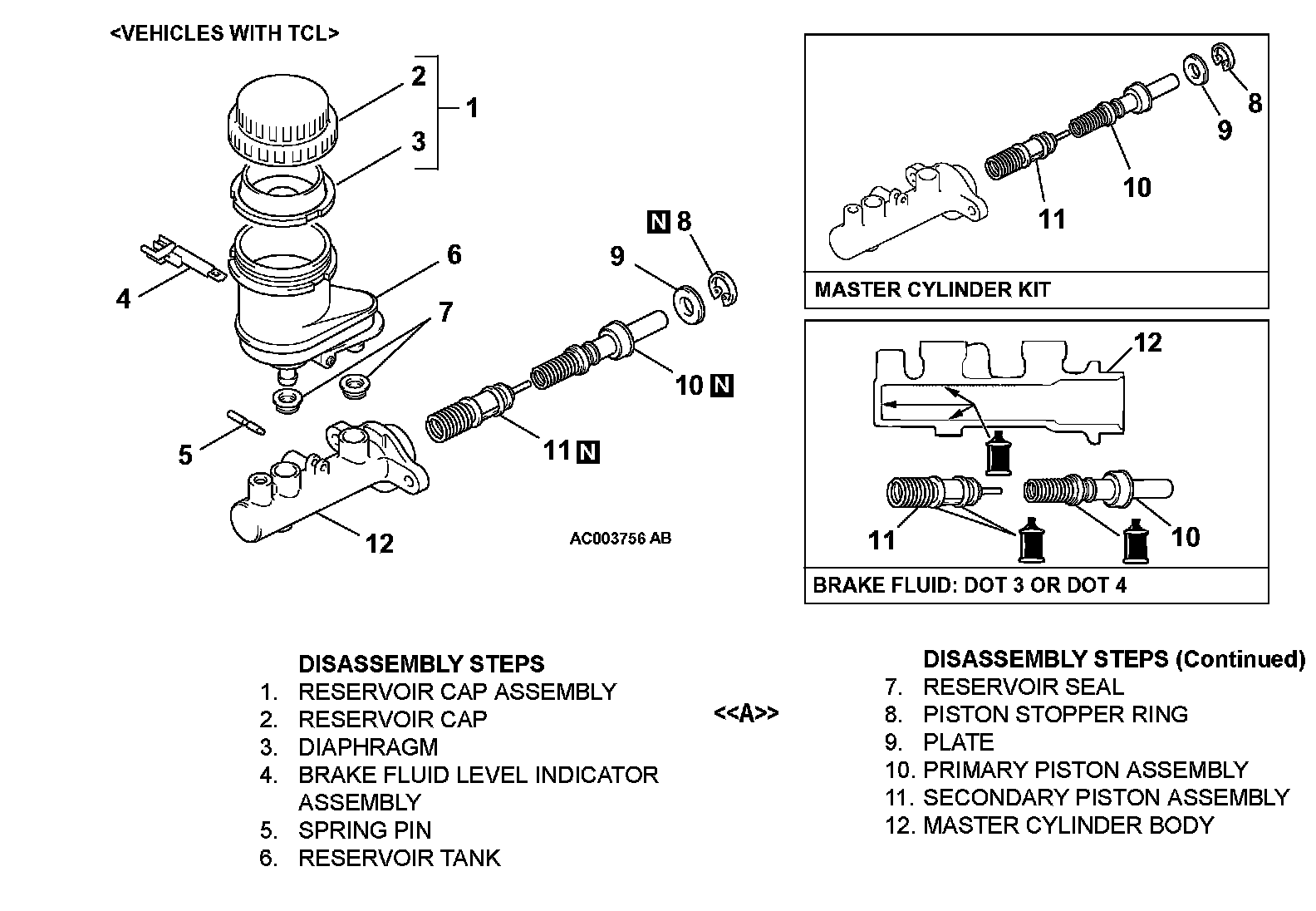

VEHICLES WITH TCL
