Removal and Installation

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

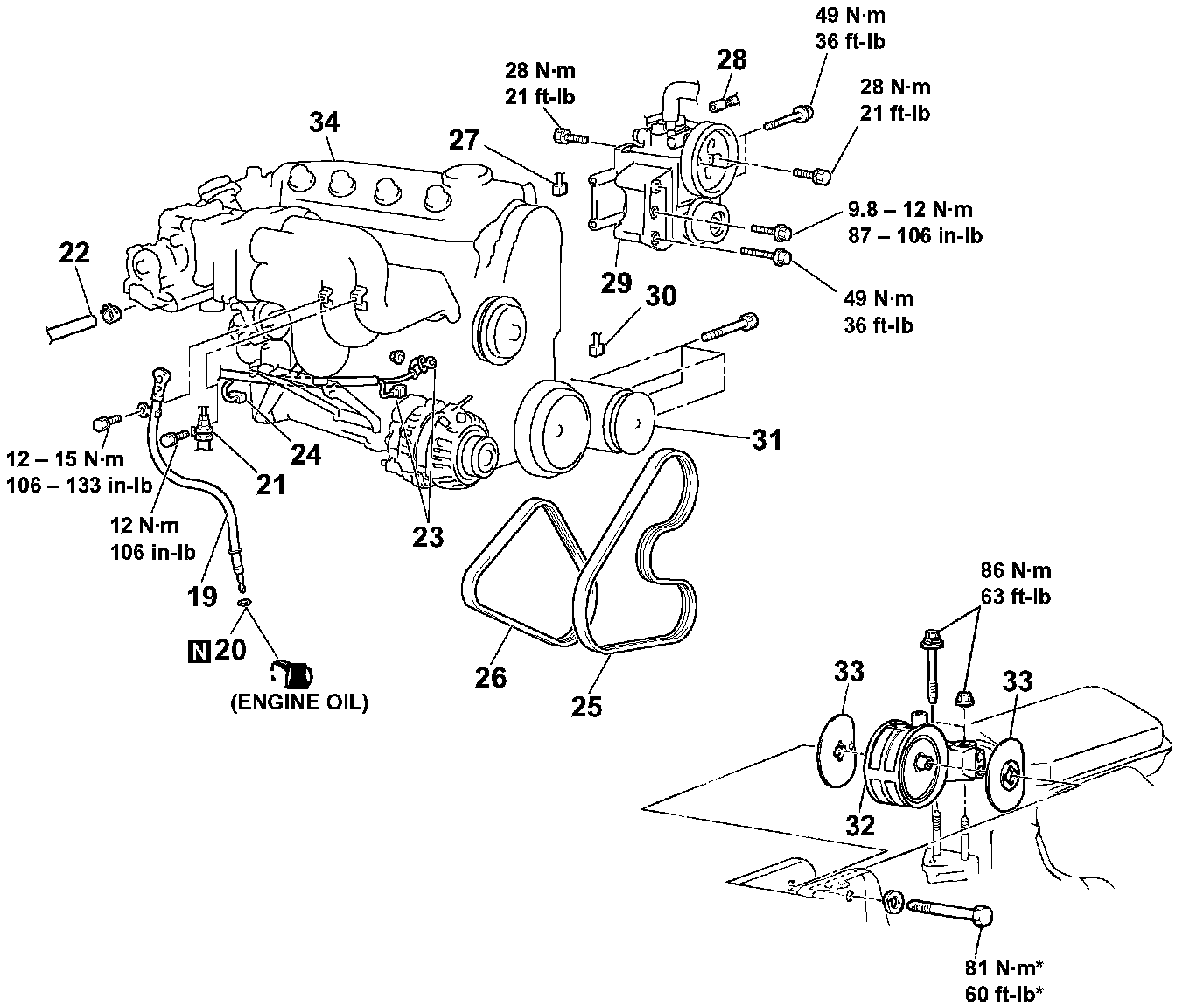

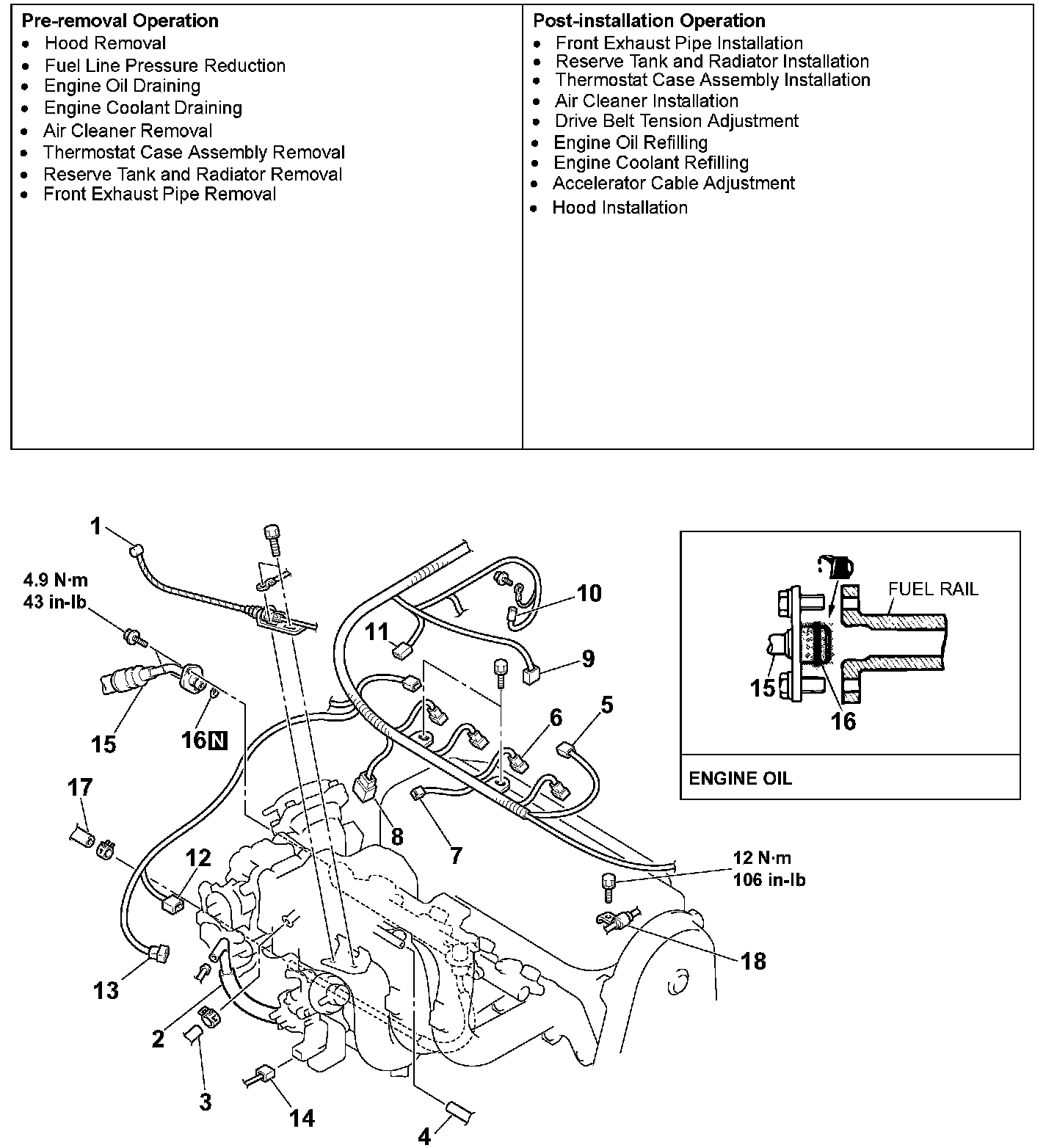

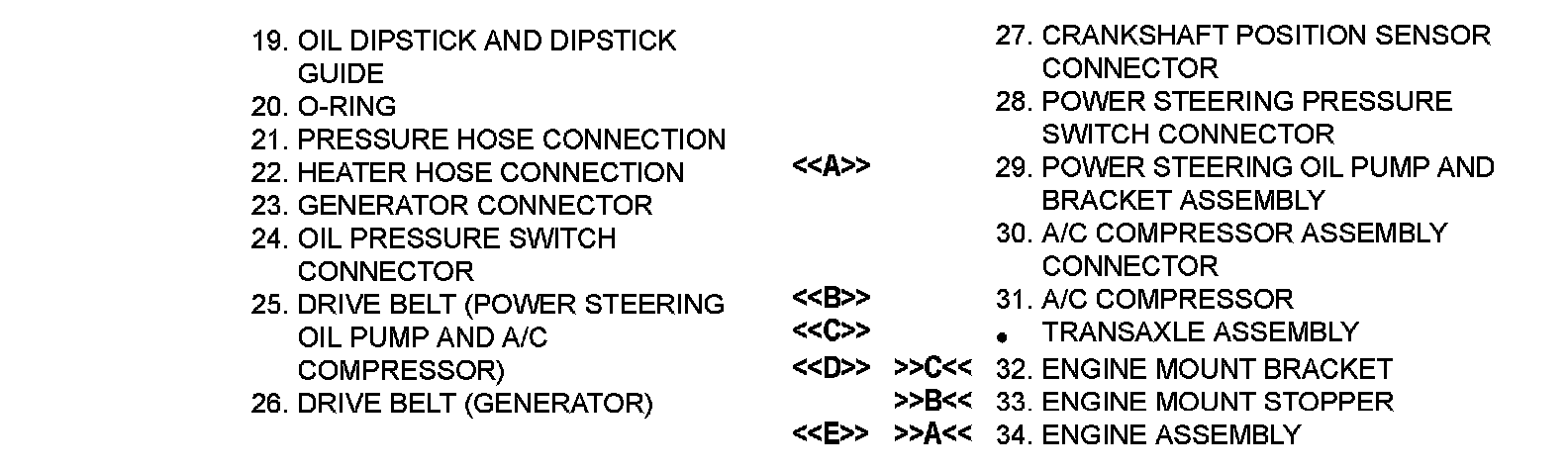

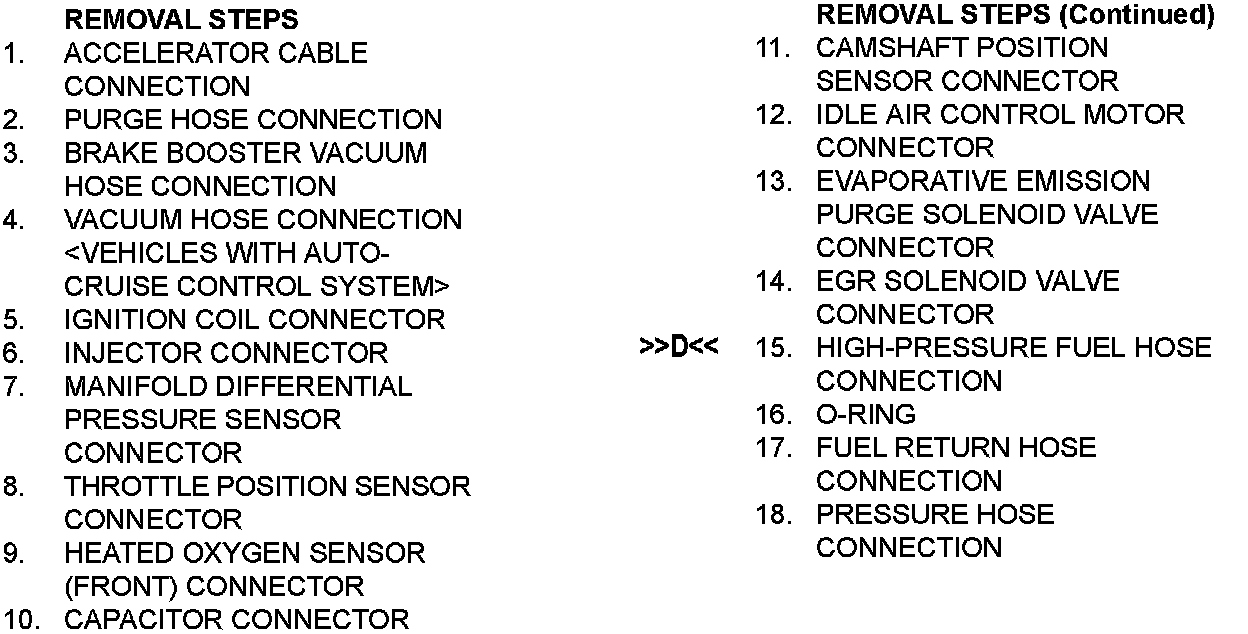

ENGINE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
