Circuit Diagram

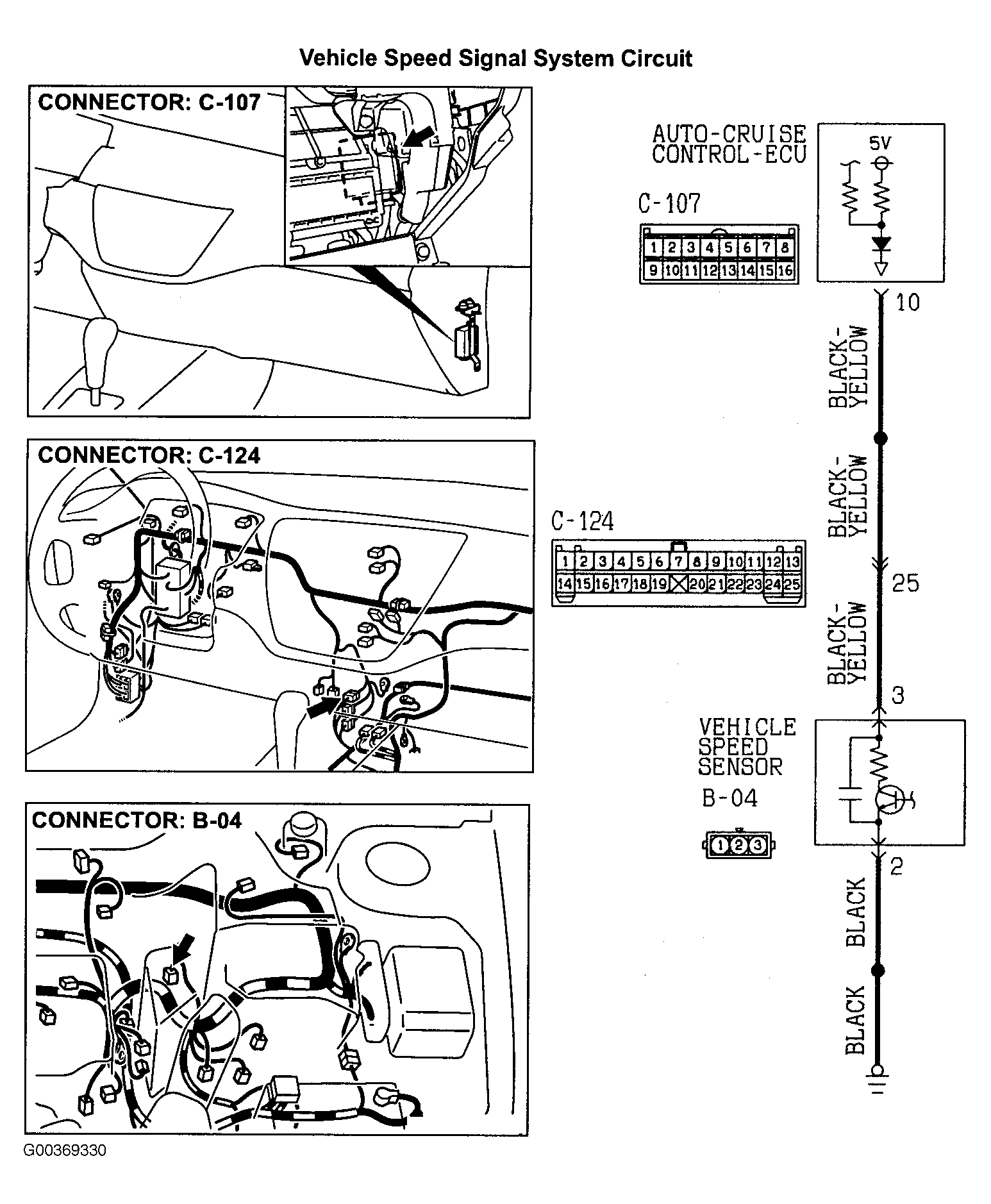

Fig 1: Identifying Vehicle Speed Signal System Circuit Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
