Rectangular Waterproof Connector: Notes

Disengage the front holder with a screwdriver and remove it.

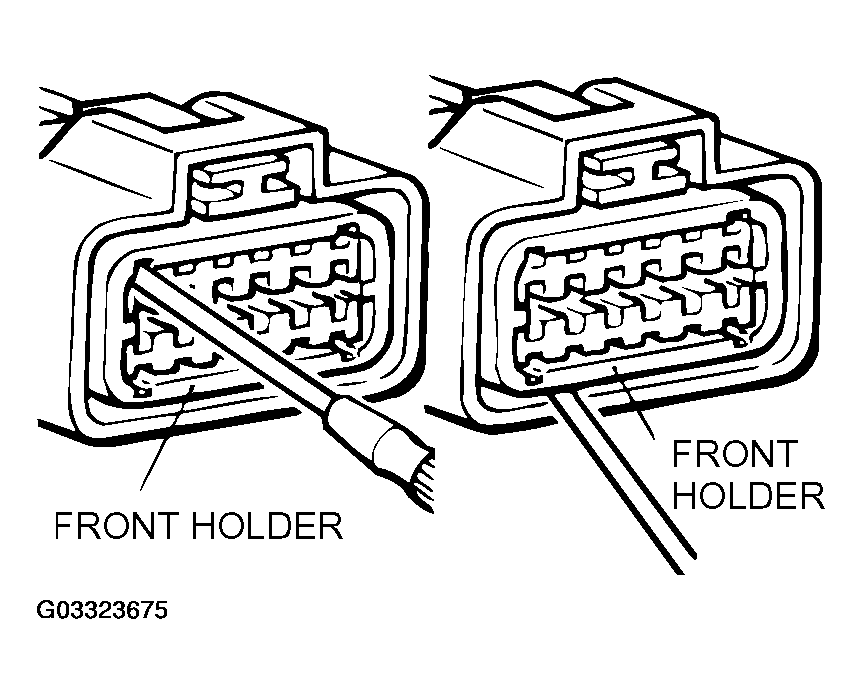

Fig 1: Disengaging Front Holder With Screwdriver
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in the figure, push it lightly to raise the housing lance, and pull out the terminal.

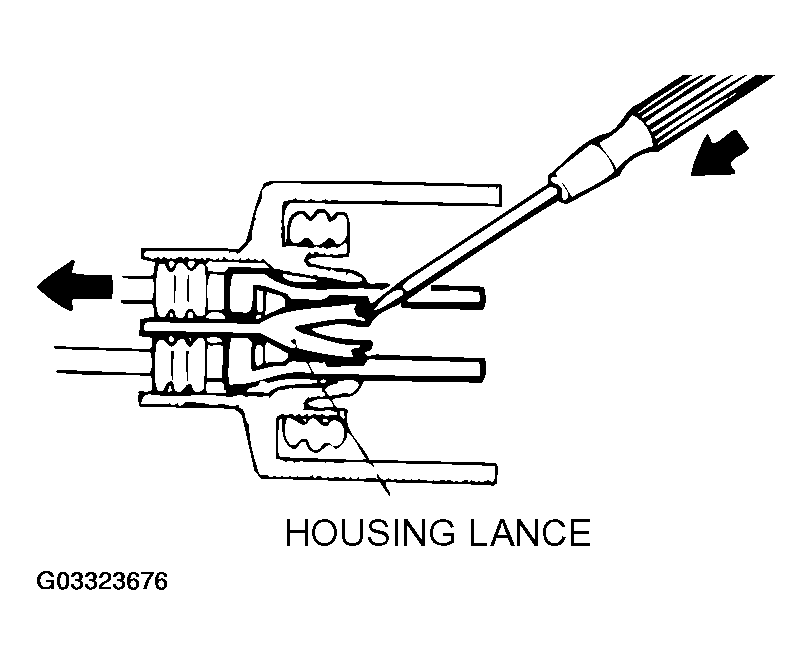

Fig 2: Inserting Tip Of Screwdriver Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press the contact point of the female terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure. Lightly squeeze the outer edge so the flats are parallel with the bottom.

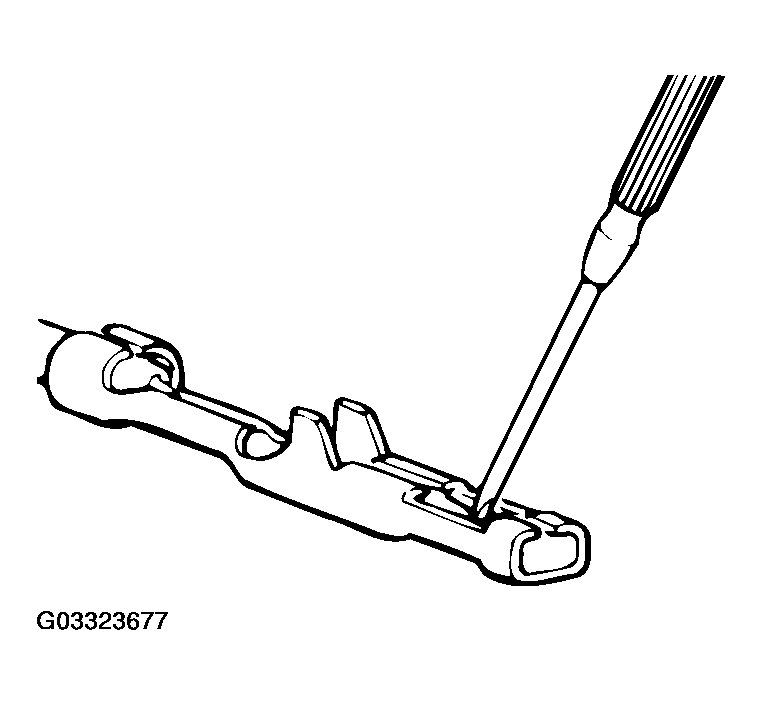

Fig 3: Pressing Contact Point Of Female Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
