INSPECTION PROCEDURE 6: Blower Air Amount cannot be Changed.: Notes

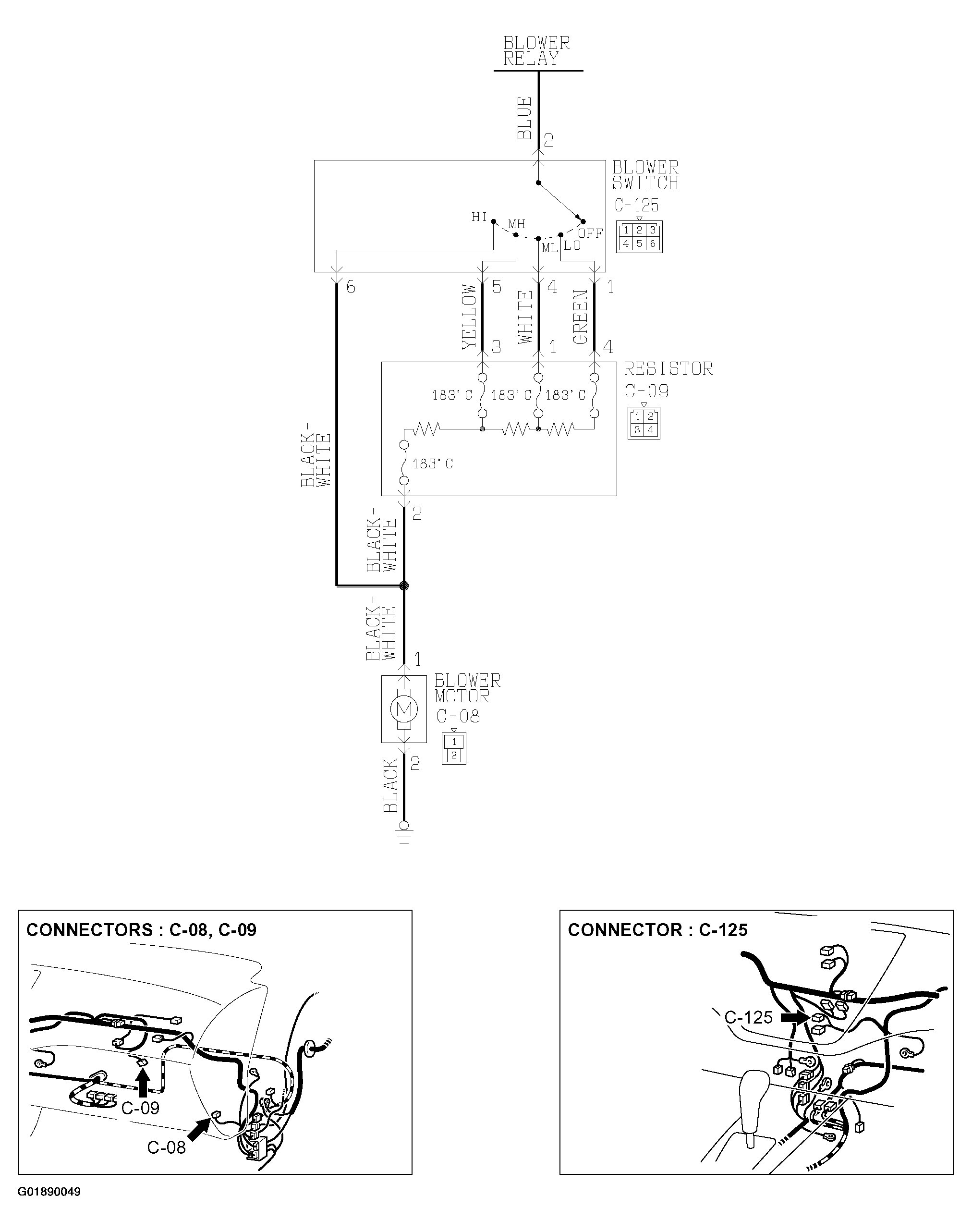

Fig 1: Blower Switch & Resistor Circuit Diagram
G01890049Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
