Malfunction Code Chart (Without CONSULT-II)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

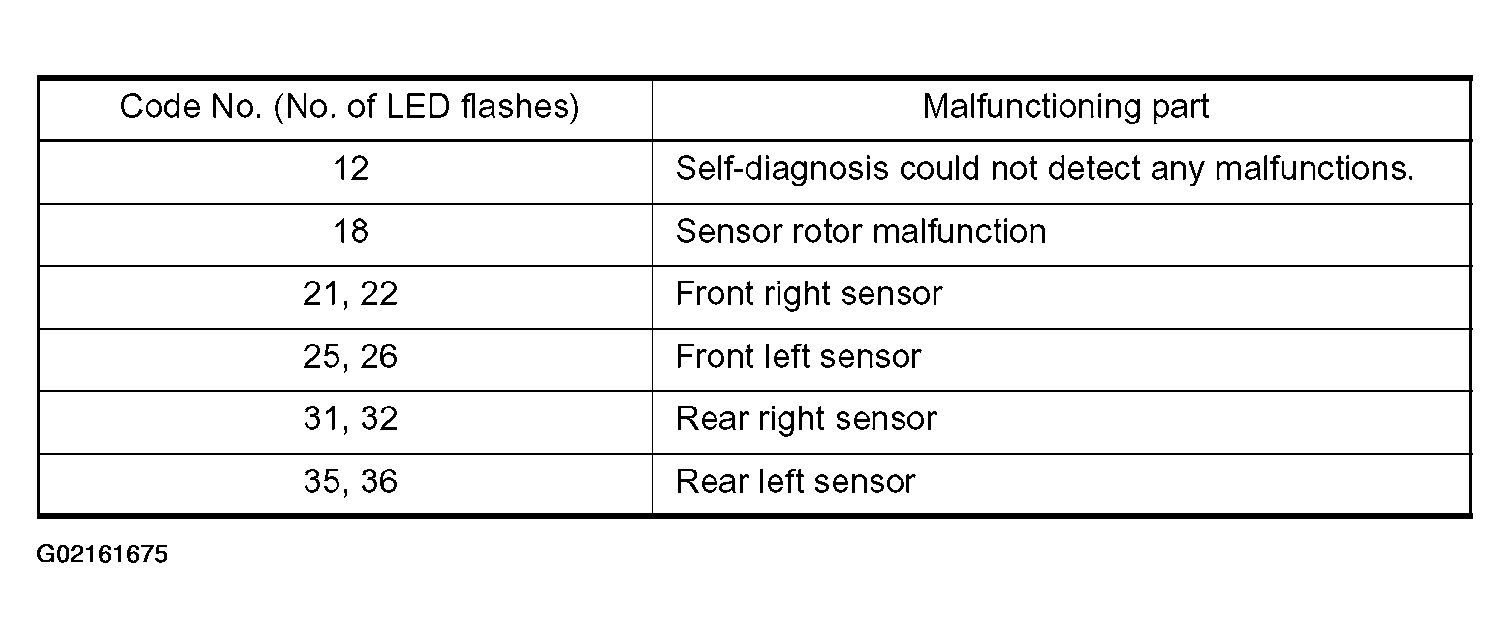

Fig 1: Malfunction Code Chart (Without CONSULT-II) (1 Of 2)
G02161675Courtesy of NISSAN MOTOR CO., U.S.A.

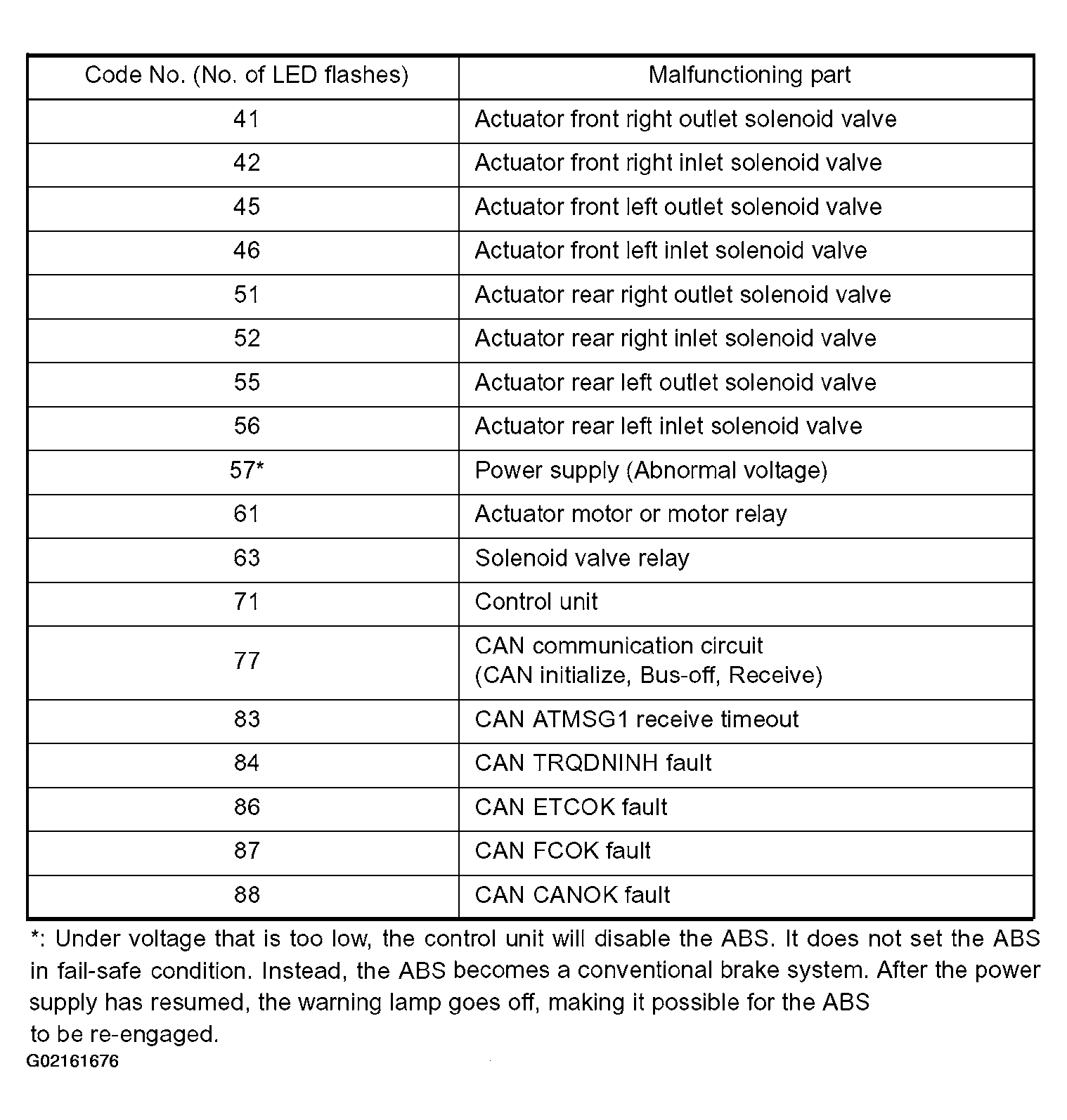

Fig 2: Malfunction Code Chart (Without CONSULT-II) (2 Of 2)
G02161676Courtesy of NISSAN MOTOR CO., U.S.A.
