<< D >> Output Shaft Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using the special tool (MB991721), remove the output shaft.
  2. Cover with a cloth to prevent foreign particles from entering the transaxle case.

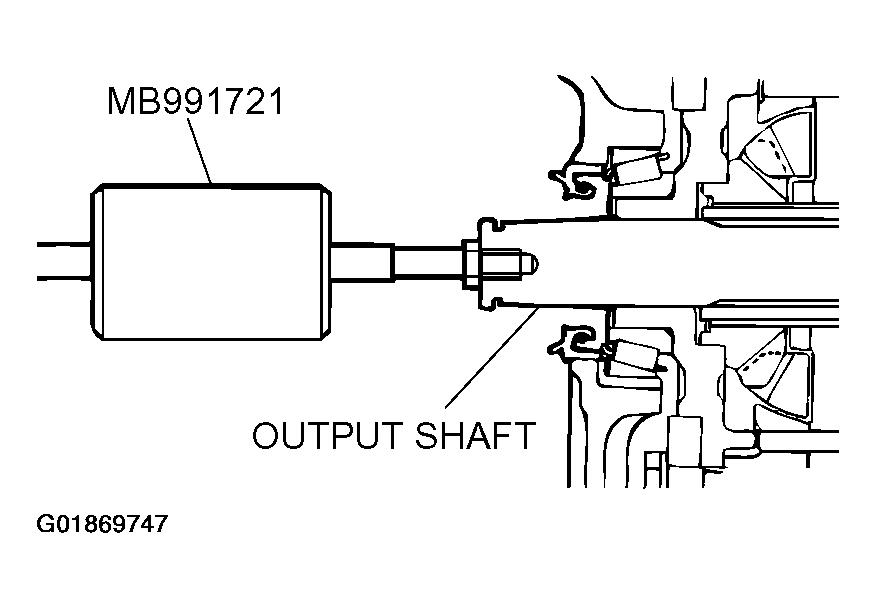

    Fig 1: Removing Output Shaft Using Special Tool
    G01869747Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
