Output Shaft: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Check the splines for damage and wear.
  2. Check that the helical gear teeth surfaces are not damaged or worn.

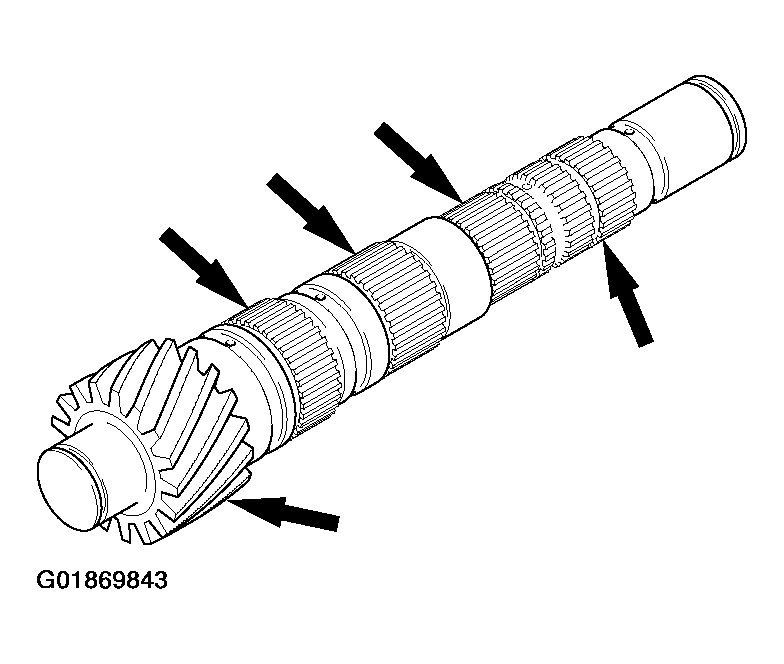

Fig 1: Checking Output Shaft
G01869843Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
