Fuel gauge unit (sub)
WARNING: This page is about a different variant/trim than selected.

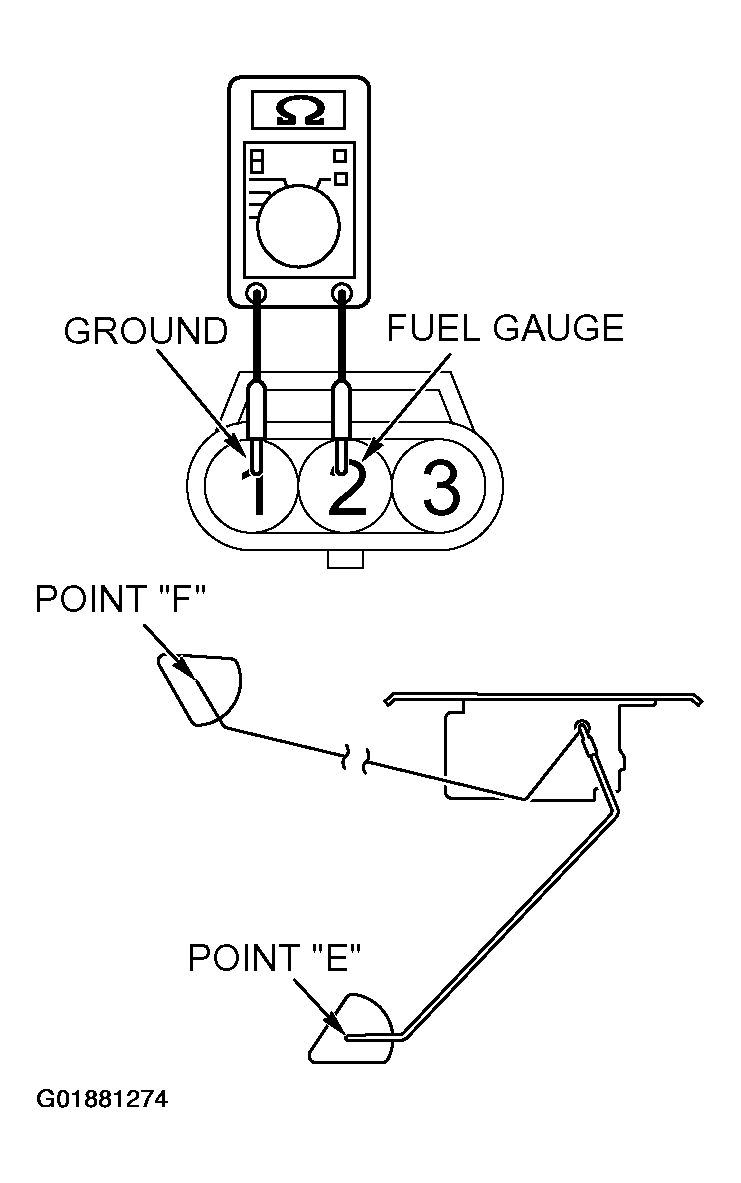

- Check that resistance value between terminals 2 and 1 is at the standard value when the fuel gauge unit float is between point "F" (highest) and point "E" (lowest).
Standard value:
- Point "F": 2 +/- 1 ohm
- Point "E": 73.6 +/- 1 ohm
- Check that resistance value changes smoothly when the float moves slowly between point "F" (highest) and point "E" (lowest).
- If all checks are correct, go to fuel gauge unit float height check. If any check is not correct, replace the fuel gauge unit.
