>> C << Transfer Driven Gear Installation

  1. Set the output shaft on the press support stand.
  2. Using special tools MD998823, MD998812 and MD998813, press install the transfer driven gear.

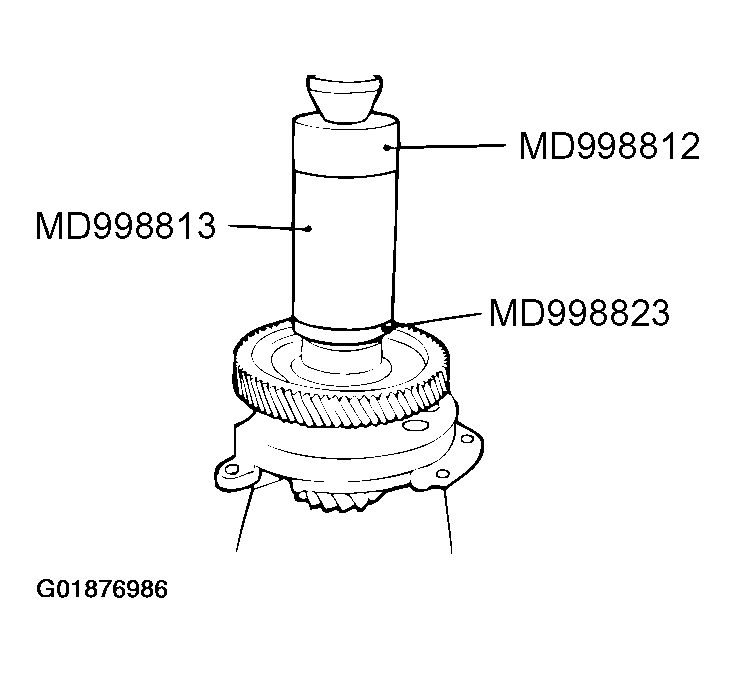

    Fig 1: Installing Transfer Driven Gear
    G01876986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
