>> D << Differential Drive Gear Installation

WARNING: This page is about a different variant/trim than selected.

Apply sealant (3M™ AAD Part Number 8730 or 8731 or equivalent) to the entire threaded portion of the bolt.

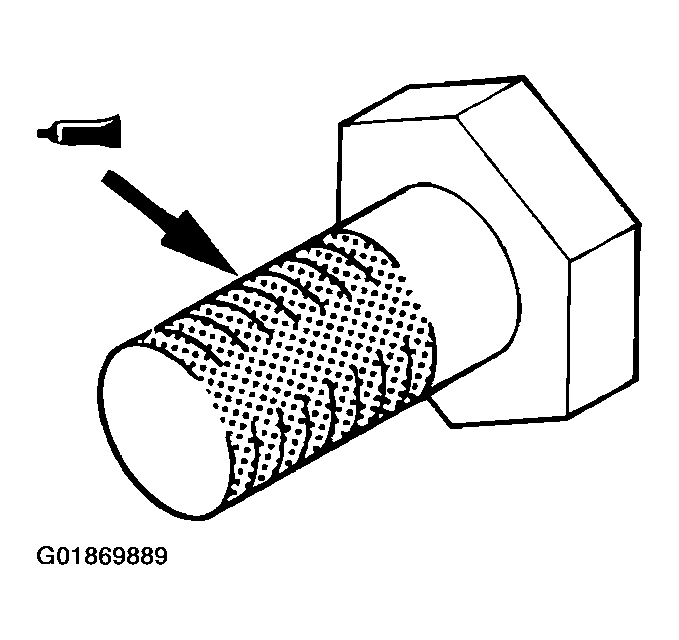

Fig 1: Applying Sealant To Threaded Portion Of Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten to the specified torque in the illustrated sequence.
1. Tightening torque: 133 +/- 4 N.m (98 +/- ft-lb)

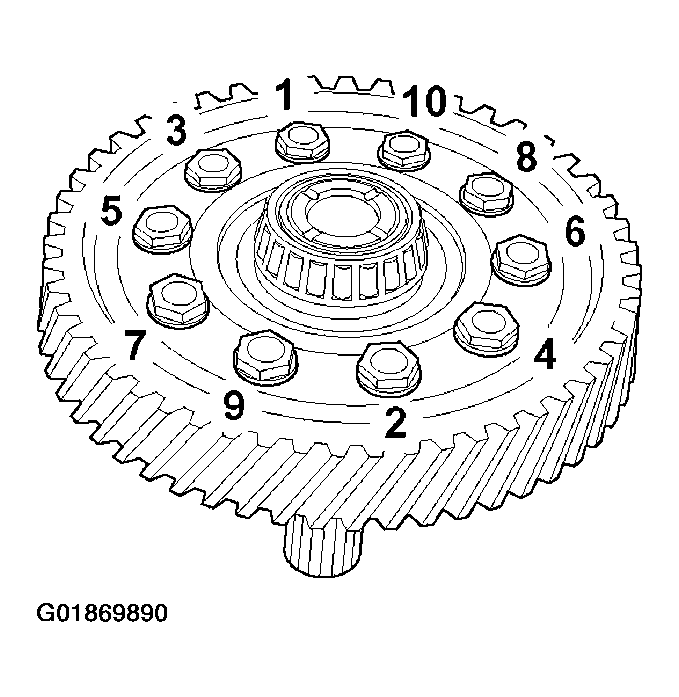

Fig 2: Identifying Tightening Sequence Of Differential Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
