<< A >> Lock Pin Removal

WARNING: This page is about a different variant/trim than selected.

Drive out the lock pin from the direction shown.

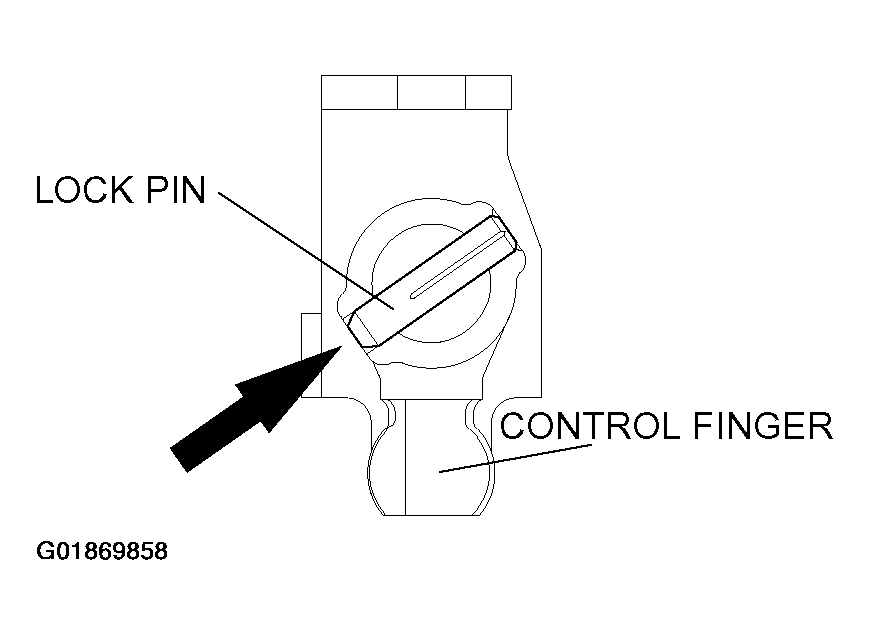

Fig 1: Identifying Direction For Removing Lock Pin
G01869858Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
