>> A << Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.

Install the oil seal into the illustrated position of the input shaft.

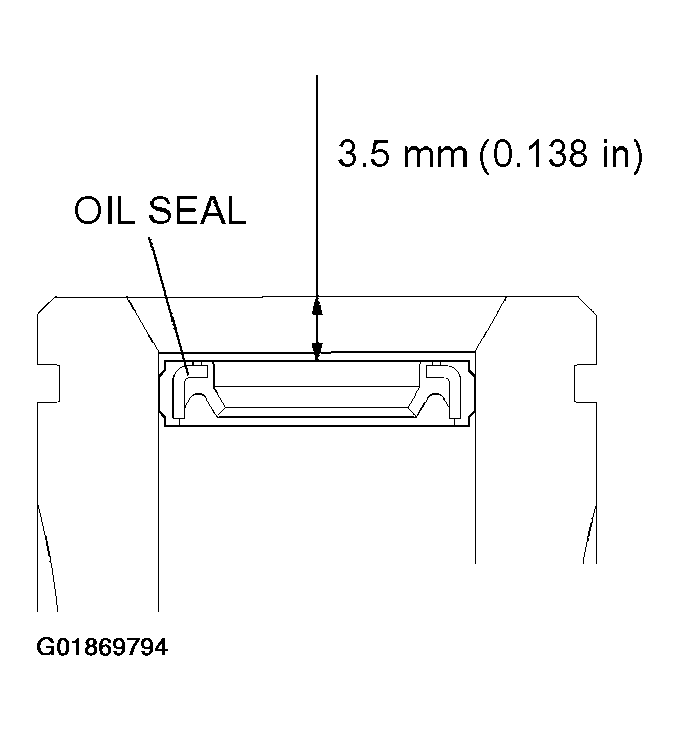

Fig 1: Installing Oil Seal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
