>> J << 4TH Speed Gear Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the output shaft on the press support stand.
  2. Using special tools MD998812, MD998813, MD998821 and MD998364, press install the 4th speed gear onto the output shaft.

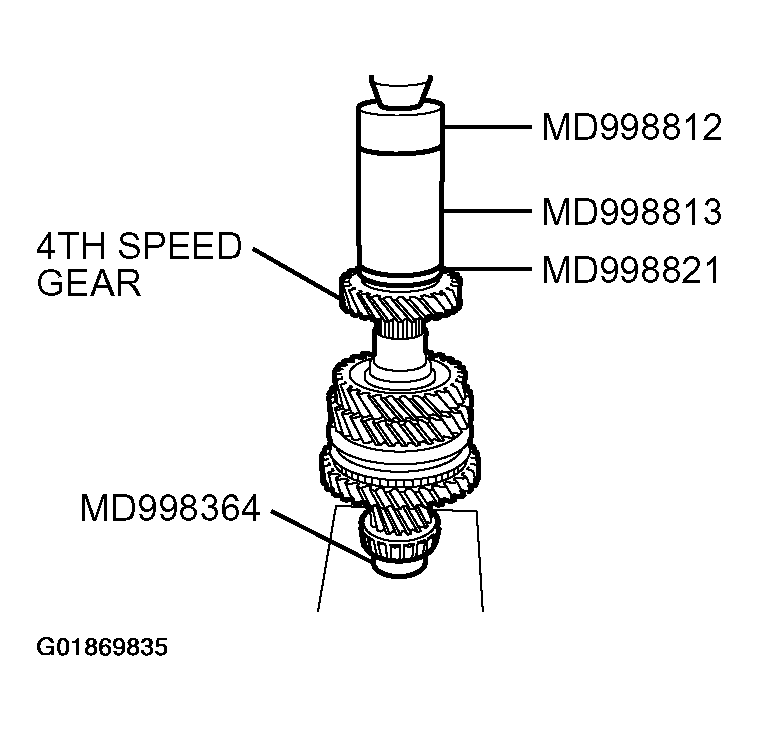

Fig 1: Installing 4Th Speed Gear
G01869835Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
