>> J << O-Ring Installation

WARNING: This page is about a different variant/trim than selected.

Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85W conforming to API classification ) to the O-ring.

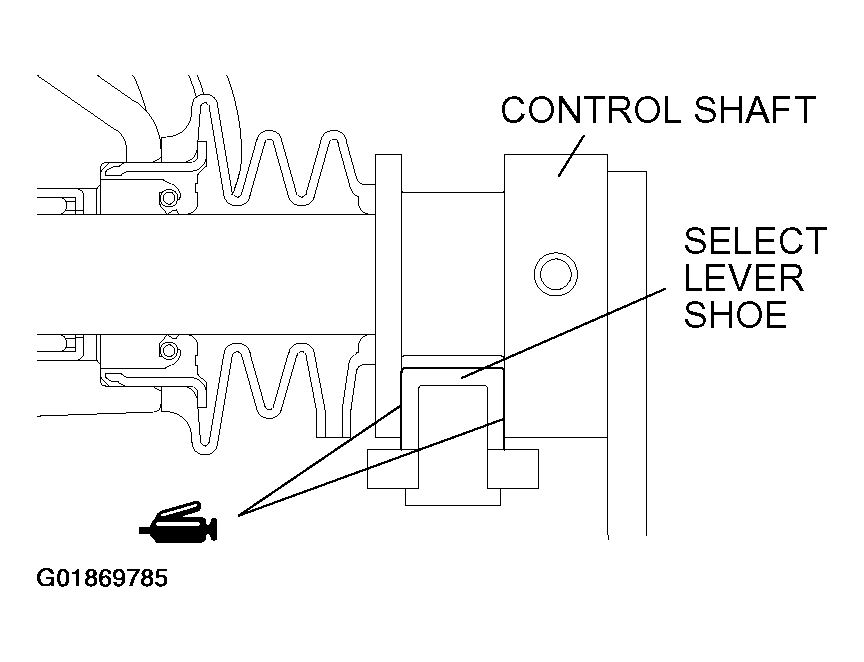

Fig 1: Applying Grease To Control Shaft Sliding Portion
G01869785Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
