>> B << Engine Front Mounting Bracket And Cushion Stoppers Assembly Installation

WARNING: This page is about a different variant/trim than selected.

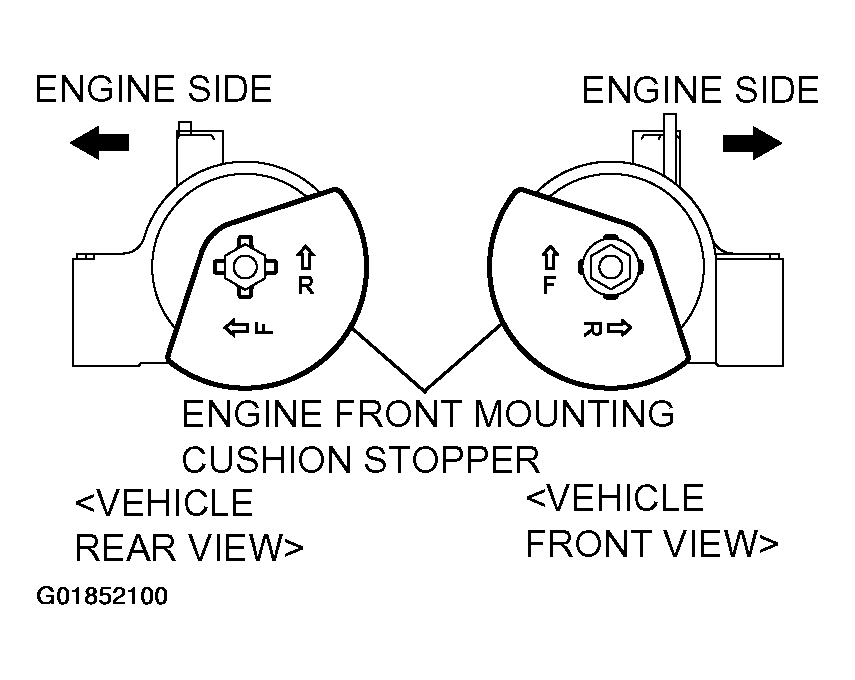

Arrow marks on the engine front mounting cushion stopper should face the shown direction.
NOTE: Disregard F and R stamped as a shared part.
Place a garage jack against the engine oil pan with a piece of wood in between, and install the engine front mounting bracket and cushion stoppers while adjusting the position of the engine.

Fig 1: Arrow Marks On Engine Front Mounting Cushion Stopper Should Face Shown Direction
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Support the engine assembly with a garage jack.
Remove the chain block.
Use the following special tool as during removal to support the engine.

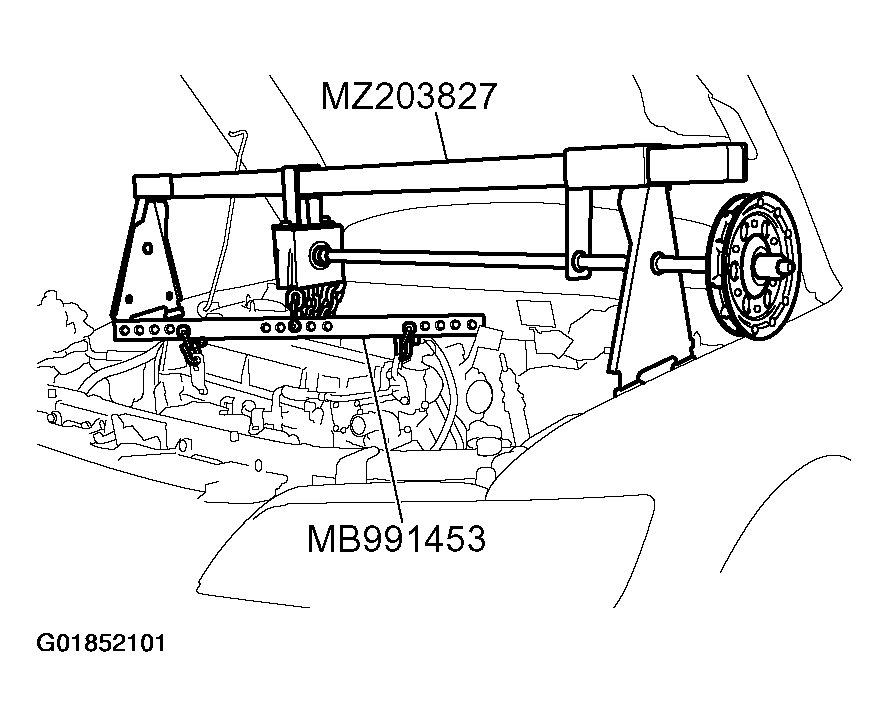

1. < Engine lifter (special tool MZ203827) is used > Set special tool MZ203827.

  Fig 2: Setting Special Tool Mz203827
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

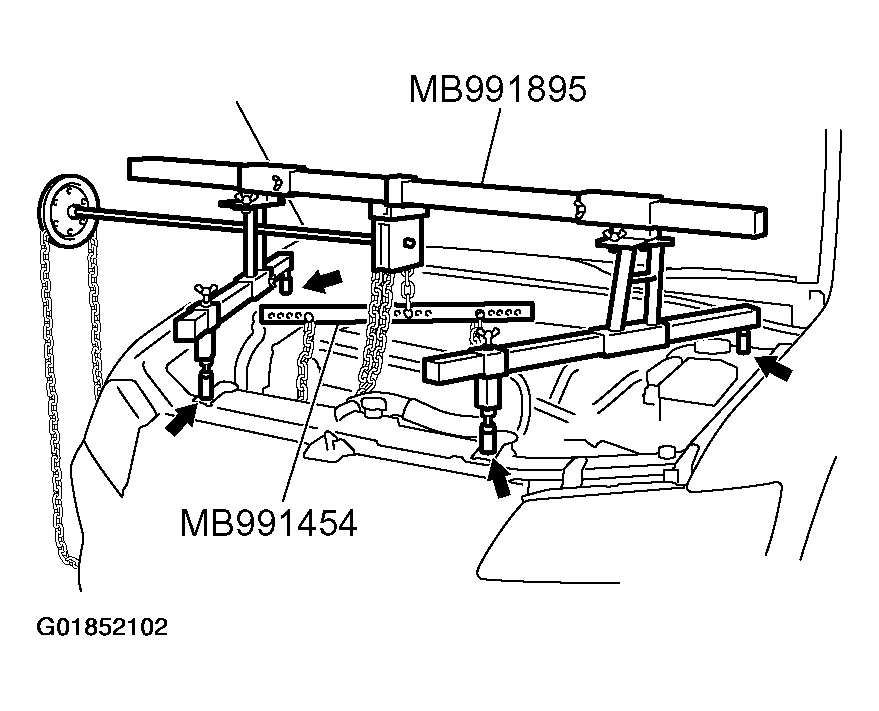

2. < Engine hanger (special tool MB991895) is used > Set special tool MB991895.

  Fig 3: Setting Special Tool Mb991895
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. < Engine hanger (special tool MB991928) is used >

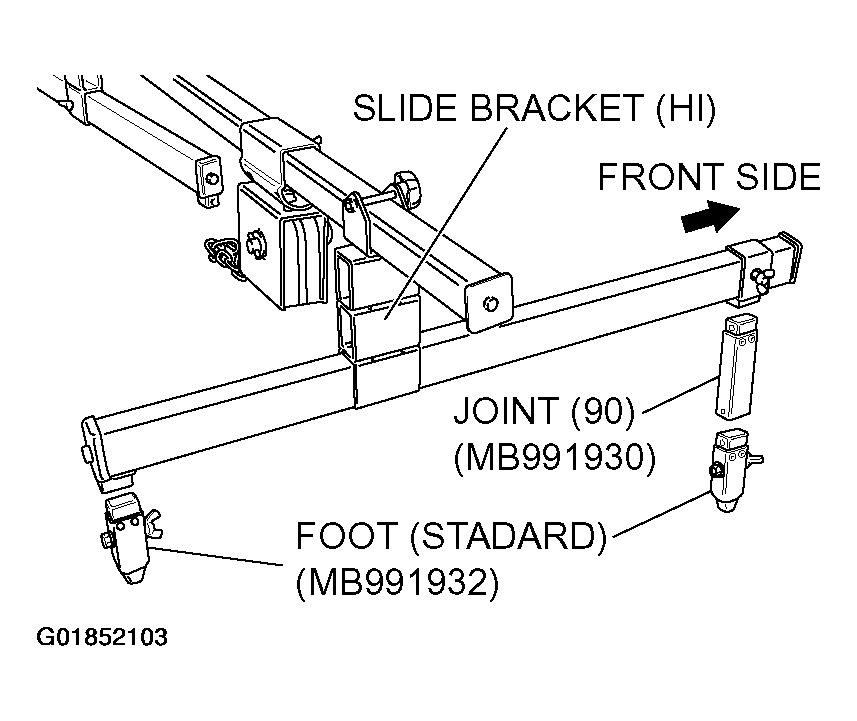

  1. Set following parts to the base hanger.
    - Slide bracket (HI)
    - Foot (standard) (MB991932)
    - Joint (90) (MB991930)
    Fig 4: Setting Slide bracket (HI), Foot (standard) (MB991932), Joint (90) (MB991930) To Base Hanger
    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

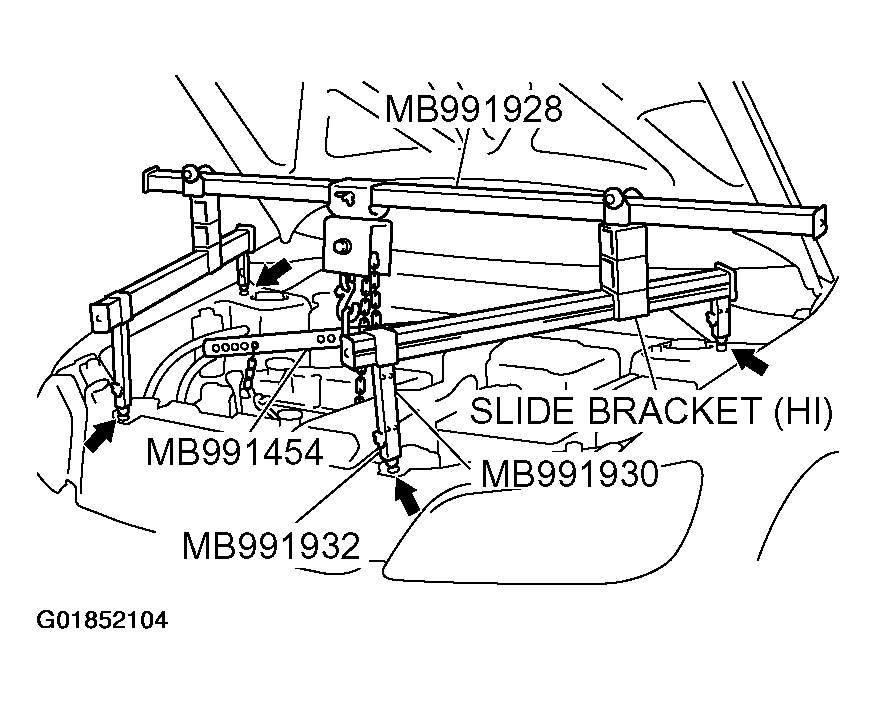

  2. Set special tool MB991928.
  Fig 5: Setting Special Tool Mb991928
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
