Unit Overhaul

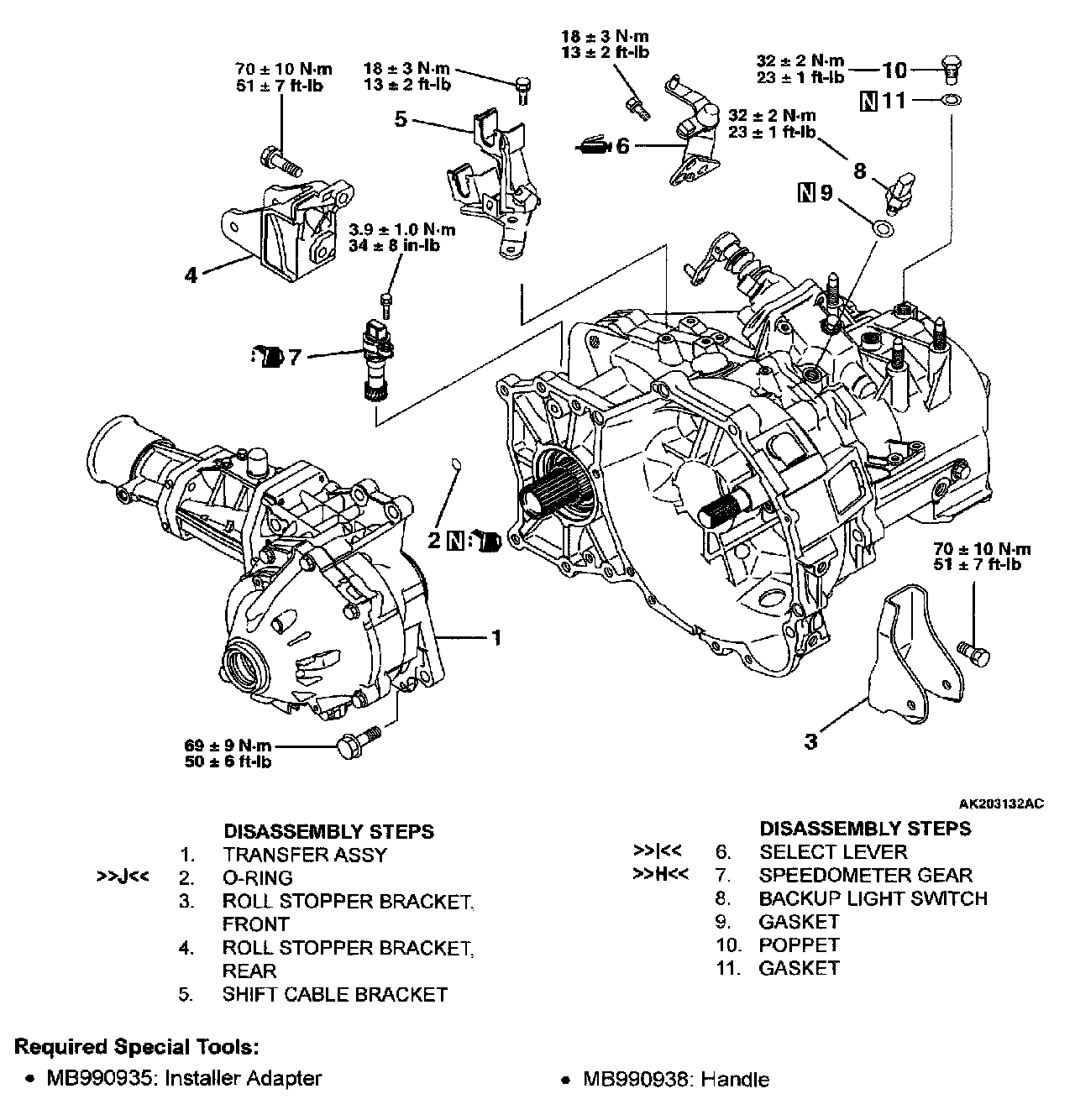

Part 1 Of 3:

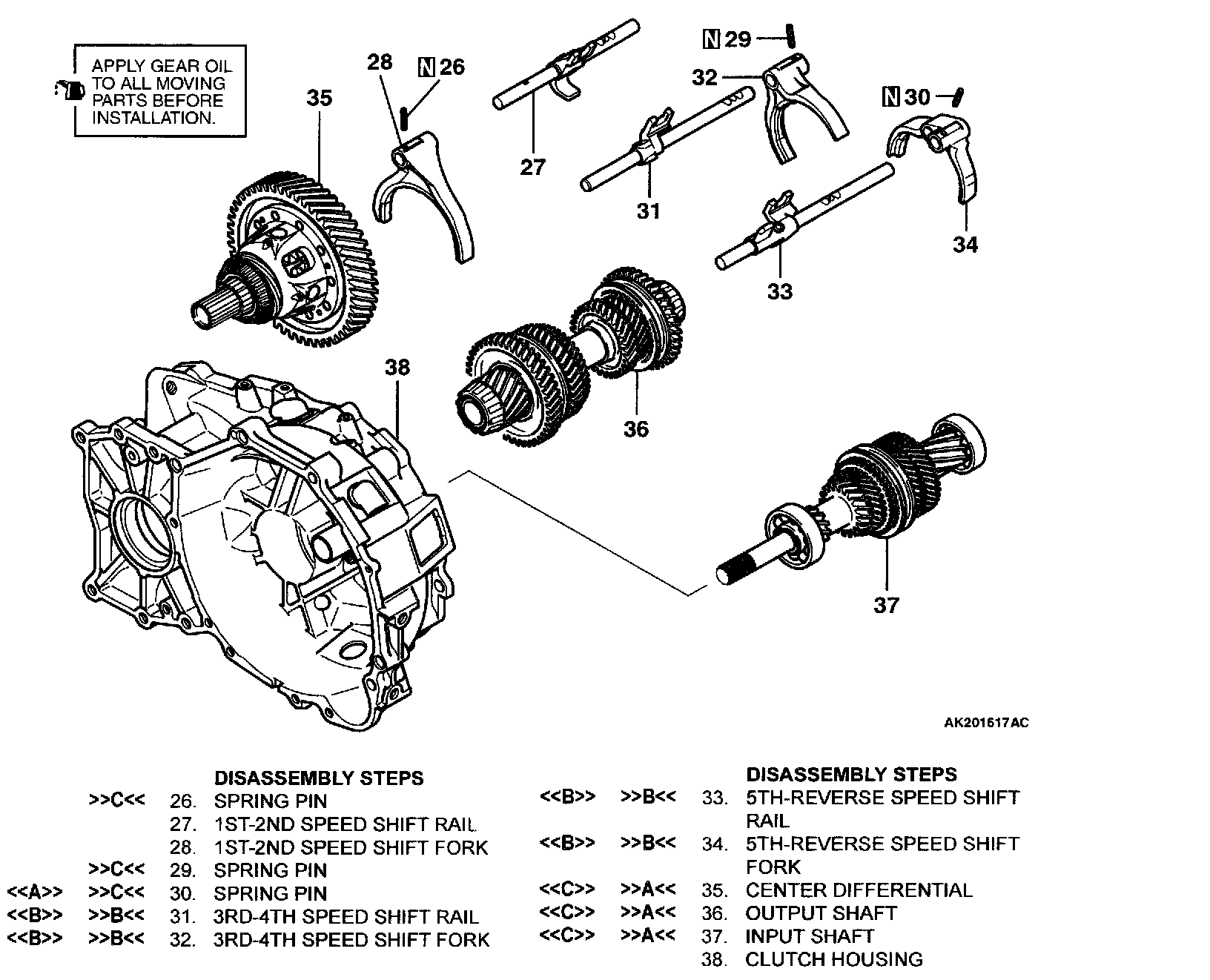

Part 2 Of 3:

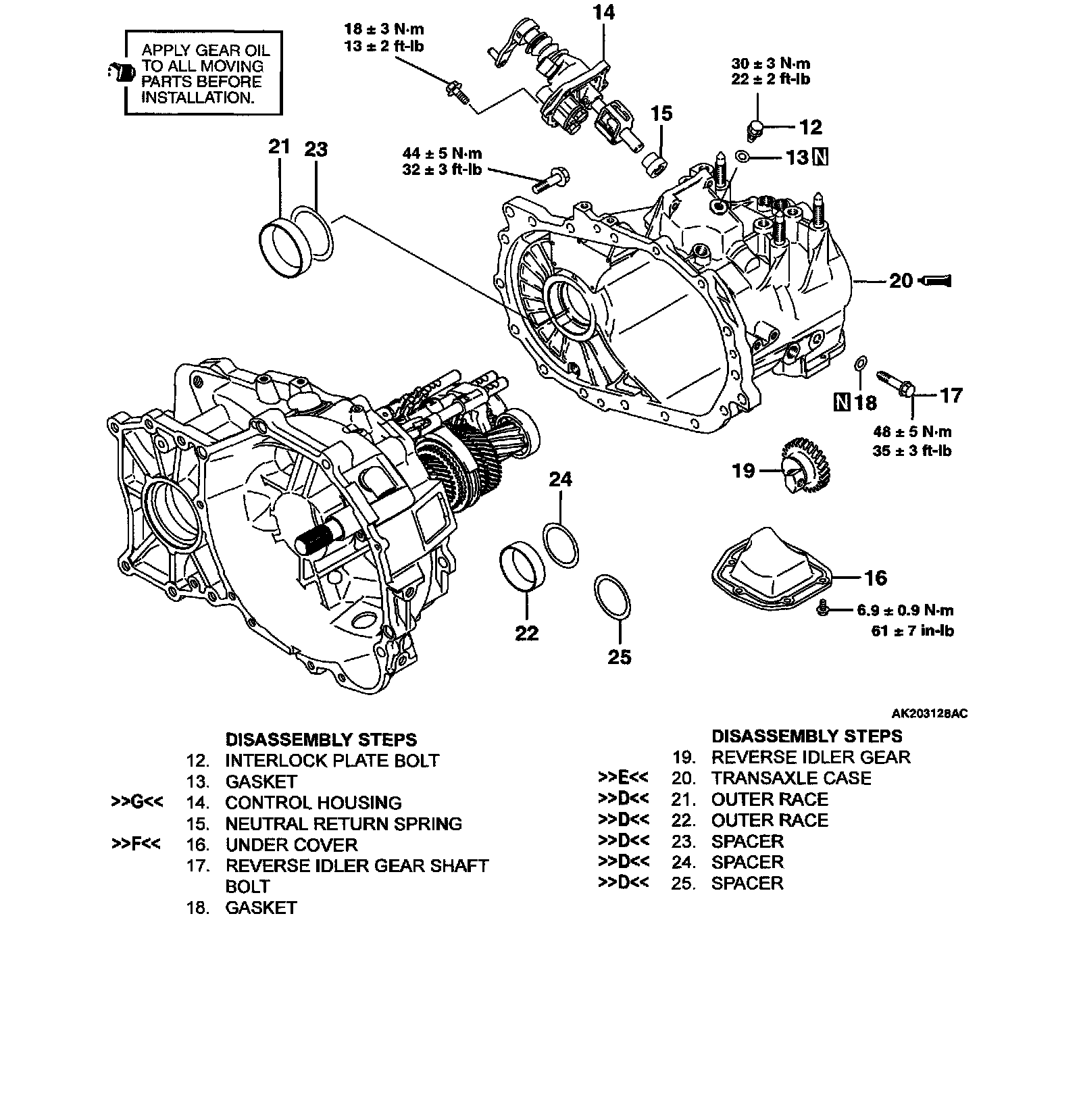

Part 3 Of 3:





TRANSAXLE (TRANSMISSION) OVERHAUL W/ RELATED COMPONENTS
