Disassembly and Assembly

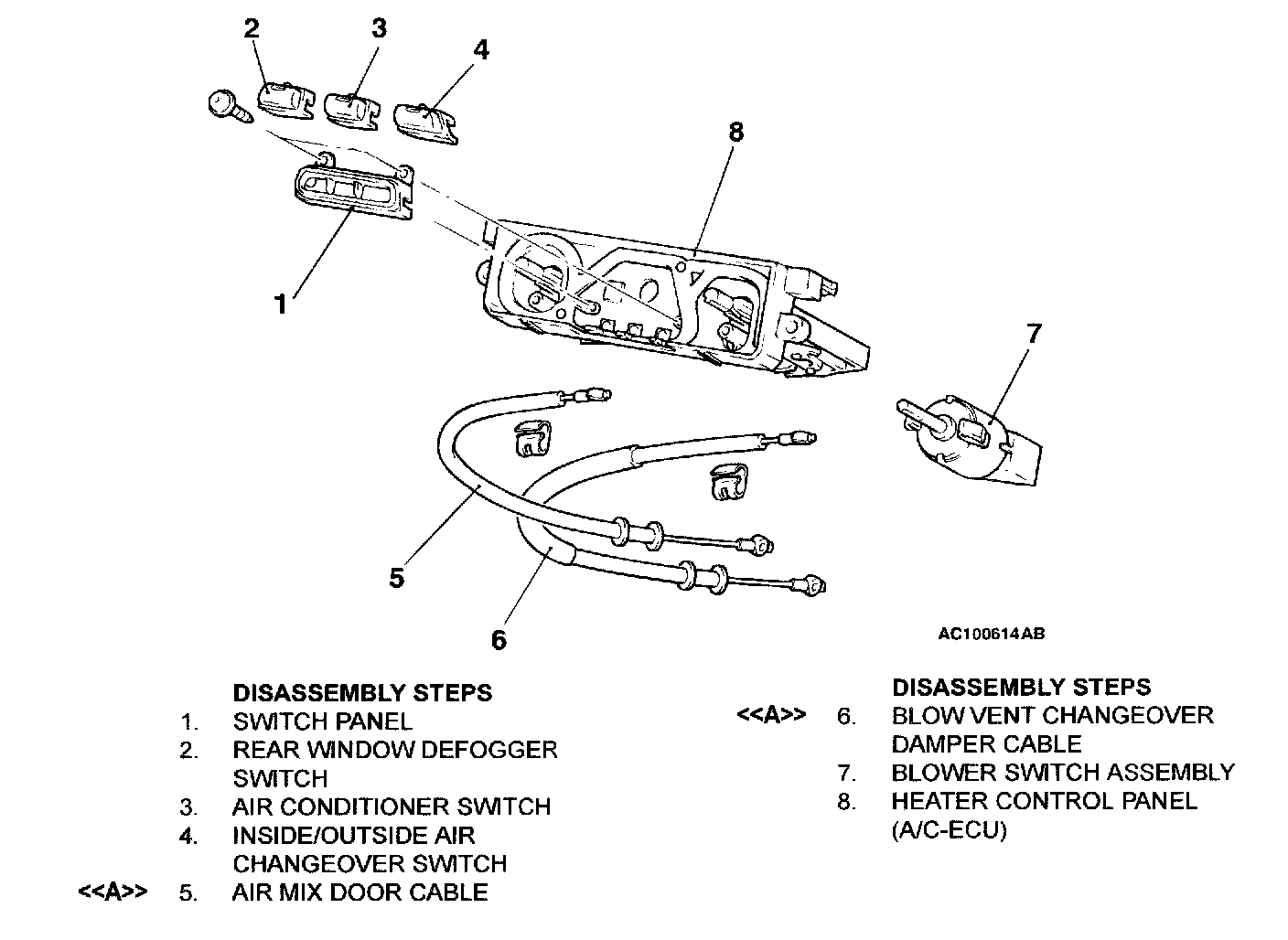

Heater Control Assembly:
DISASSEMBLY SERVICE POINT
<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DOOR CABLE REMOVAL

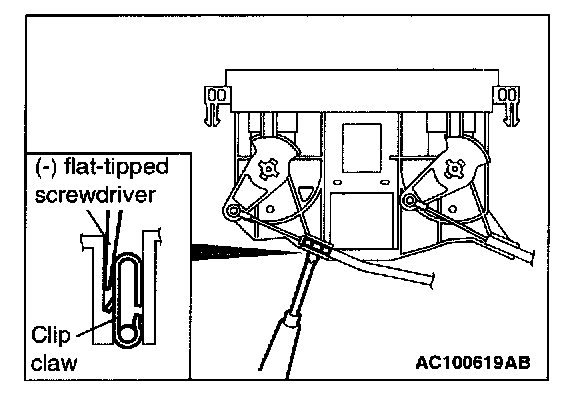

Insert a flat-tipped screwdriver into the clip through the inside of the control base and pry out the clip claw to disconnect the cables.
