Component Locations

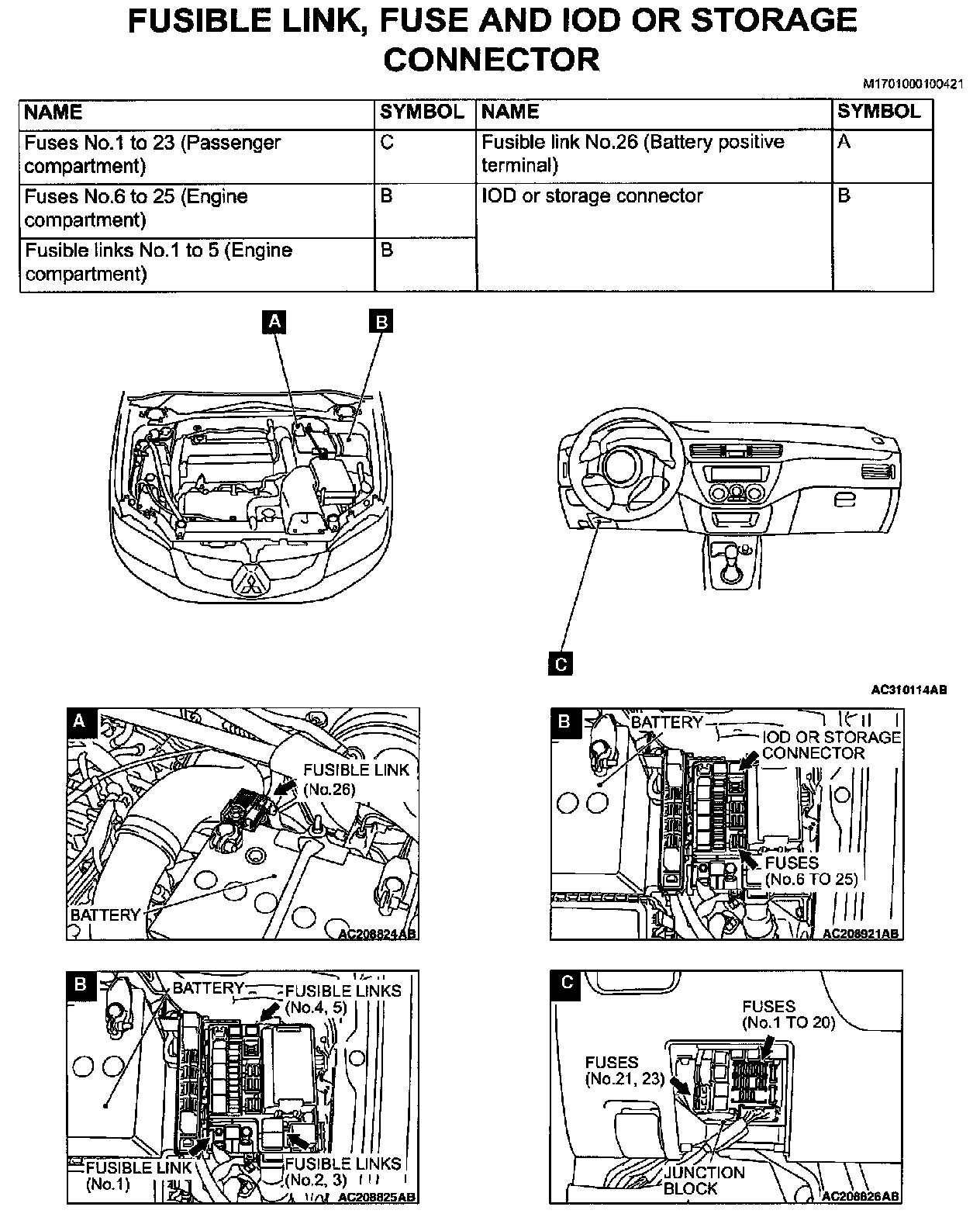

Locations:

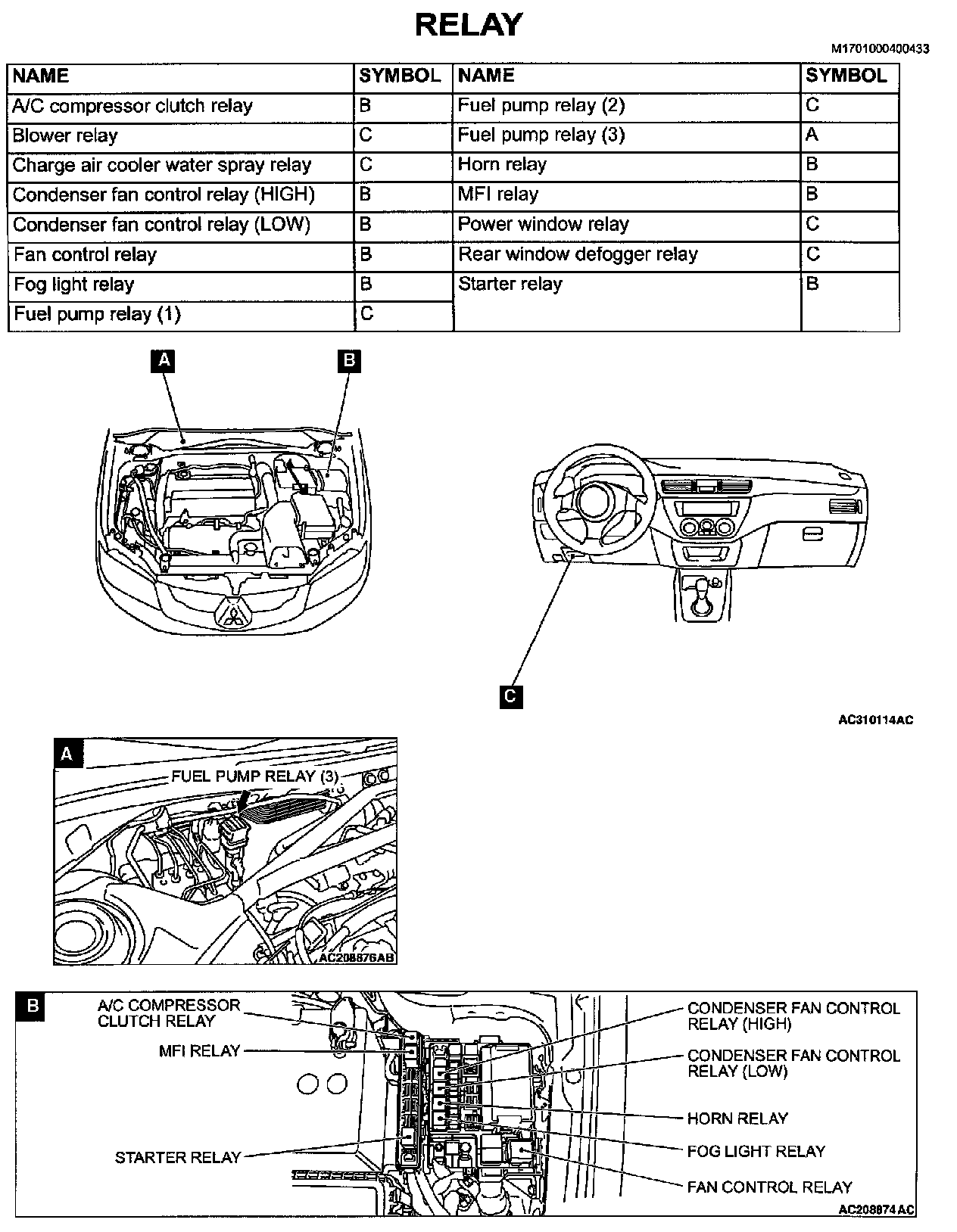

Relay Locations (1 Of 2):




Relay Locations (2 Of 2):

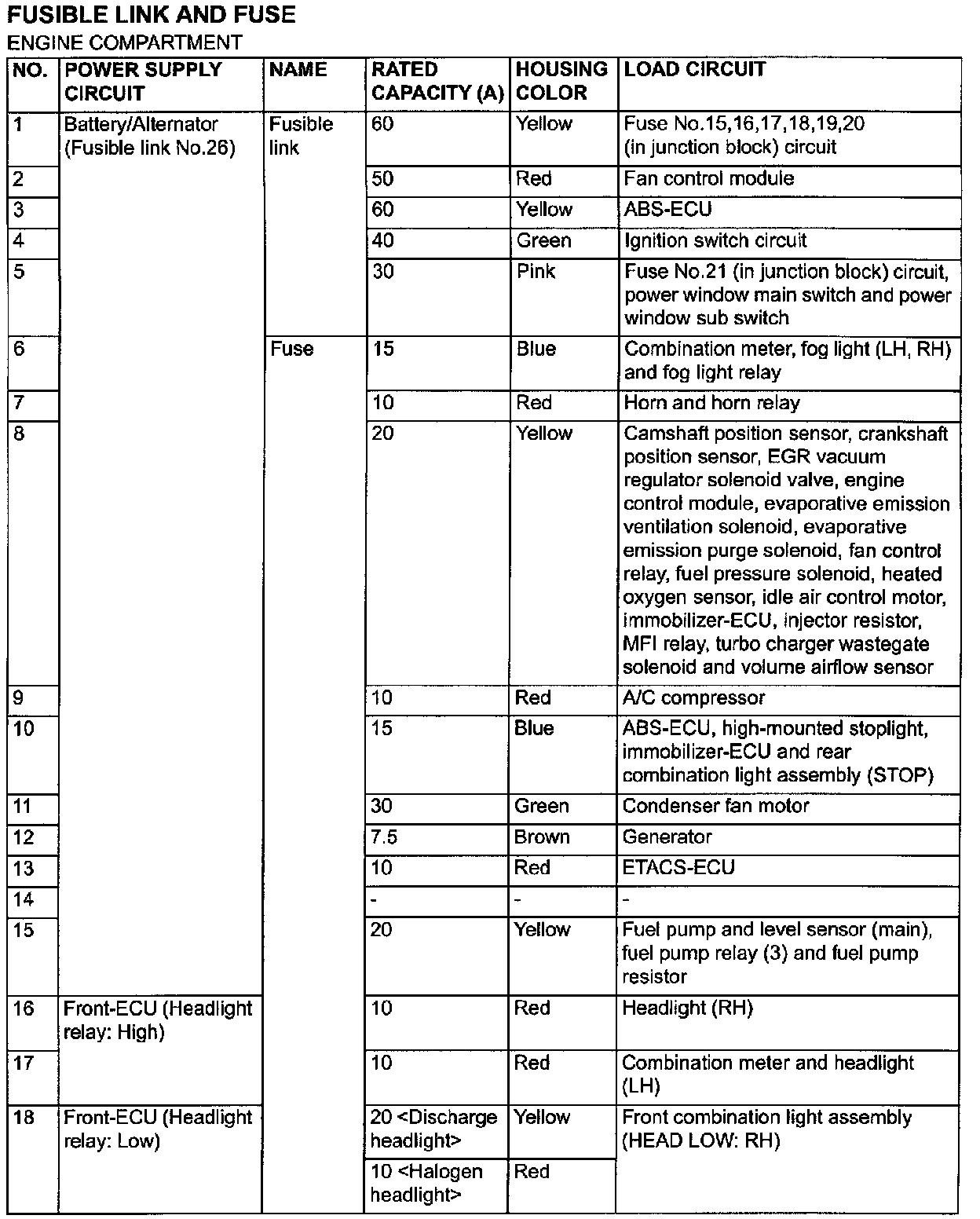

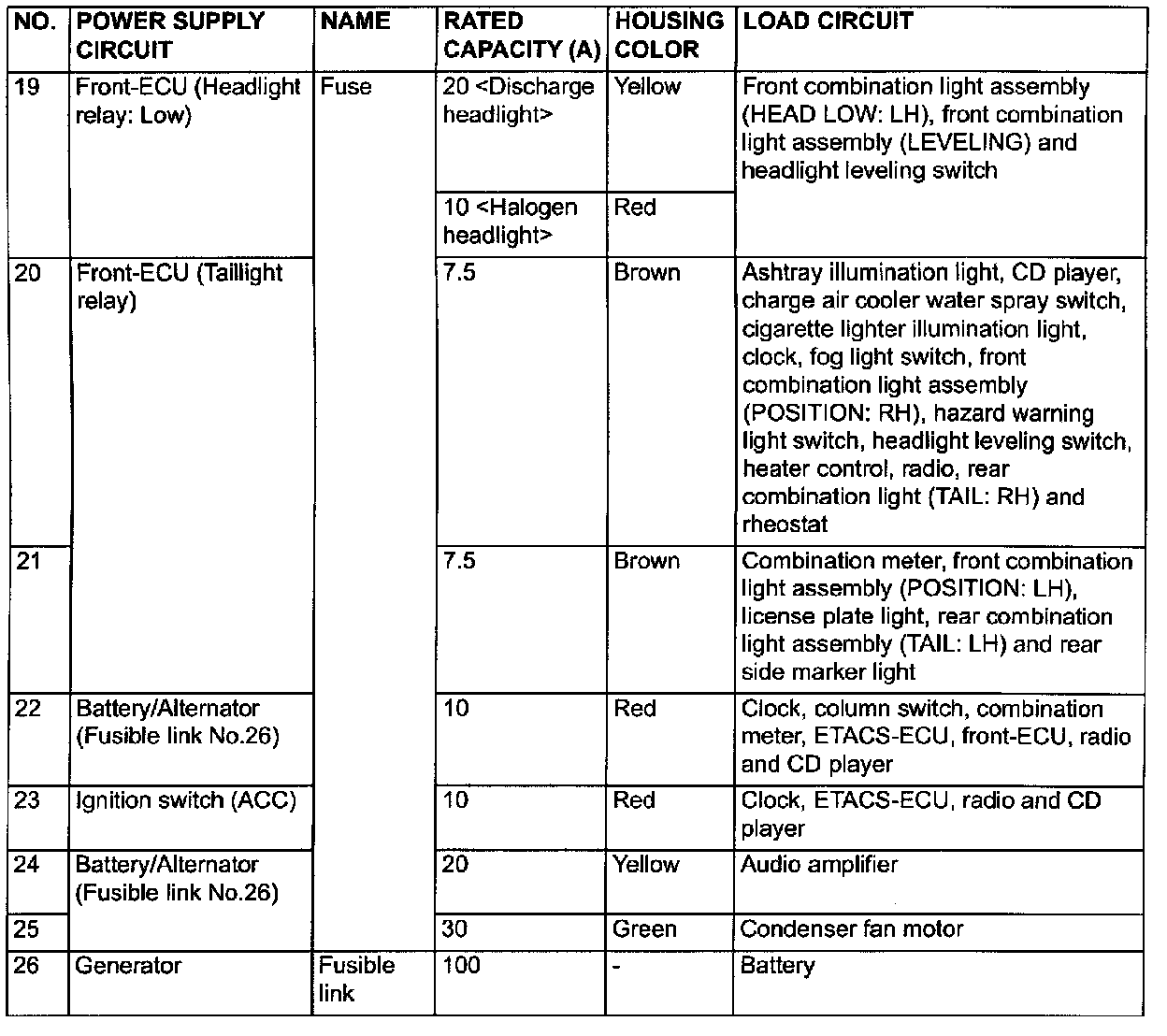

Fuses 1-26 (1 Of 3):




Fuses 1-26 (2 Of 3):




Fuses 1-26 (3 Of 3):

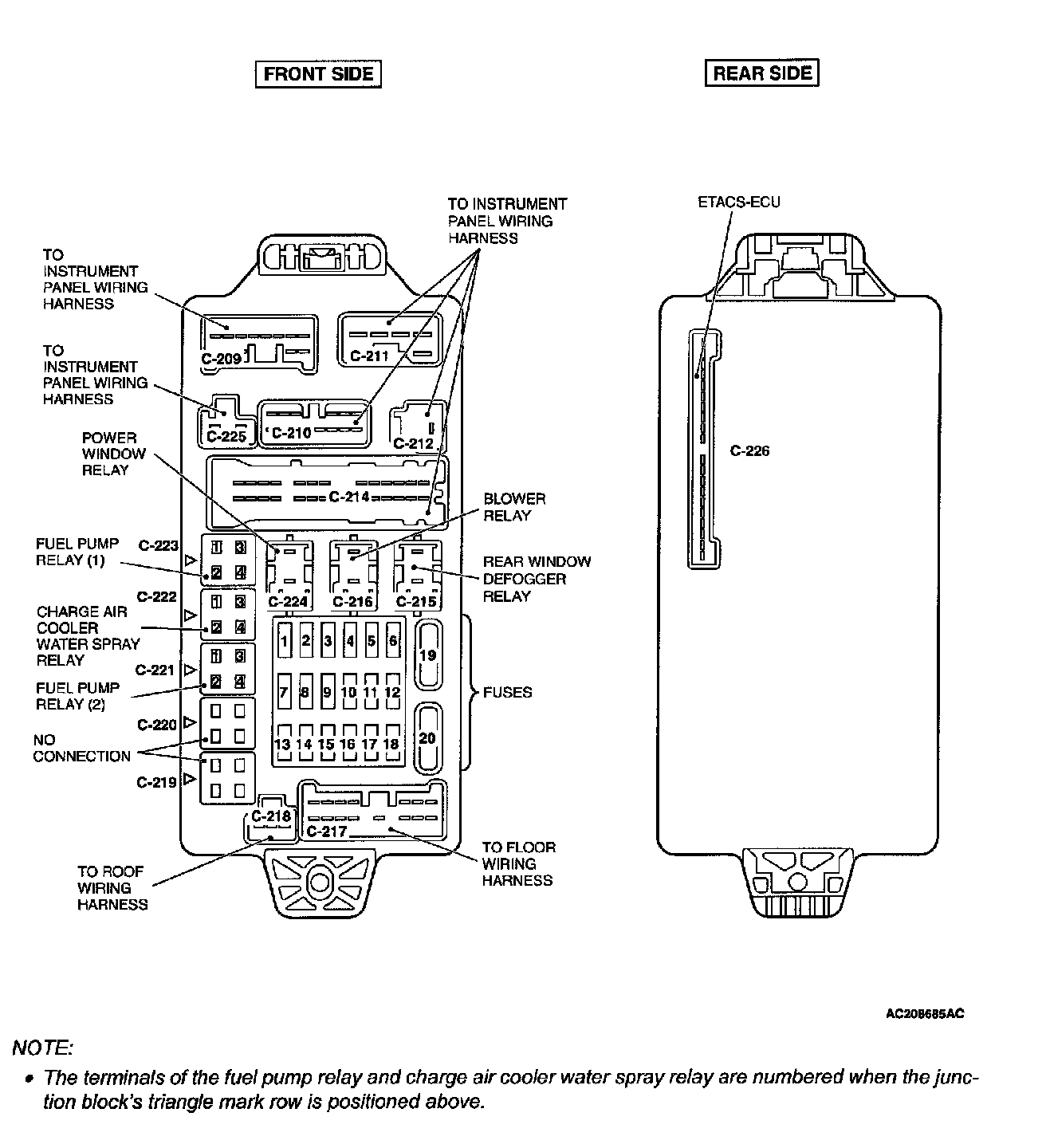

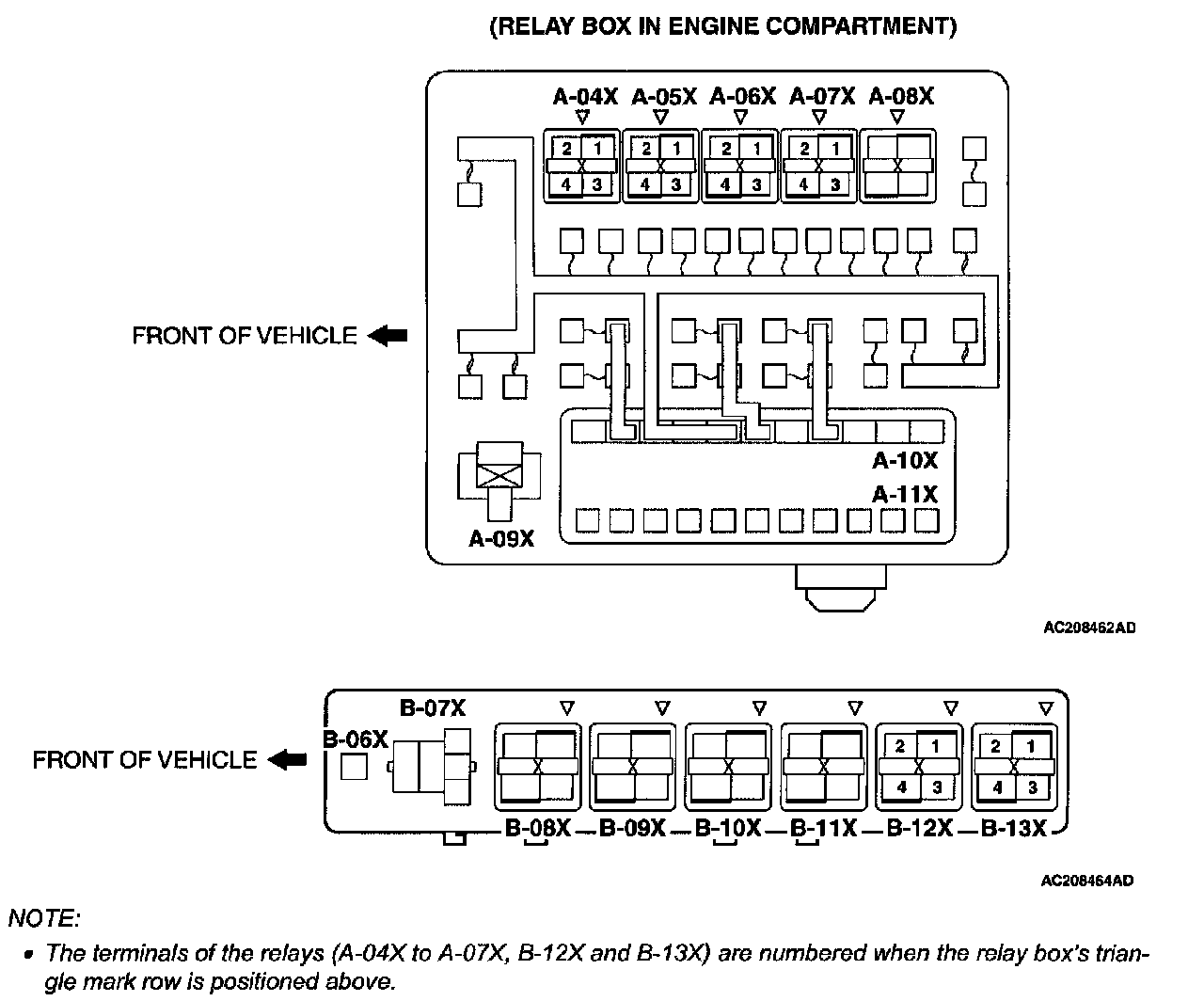

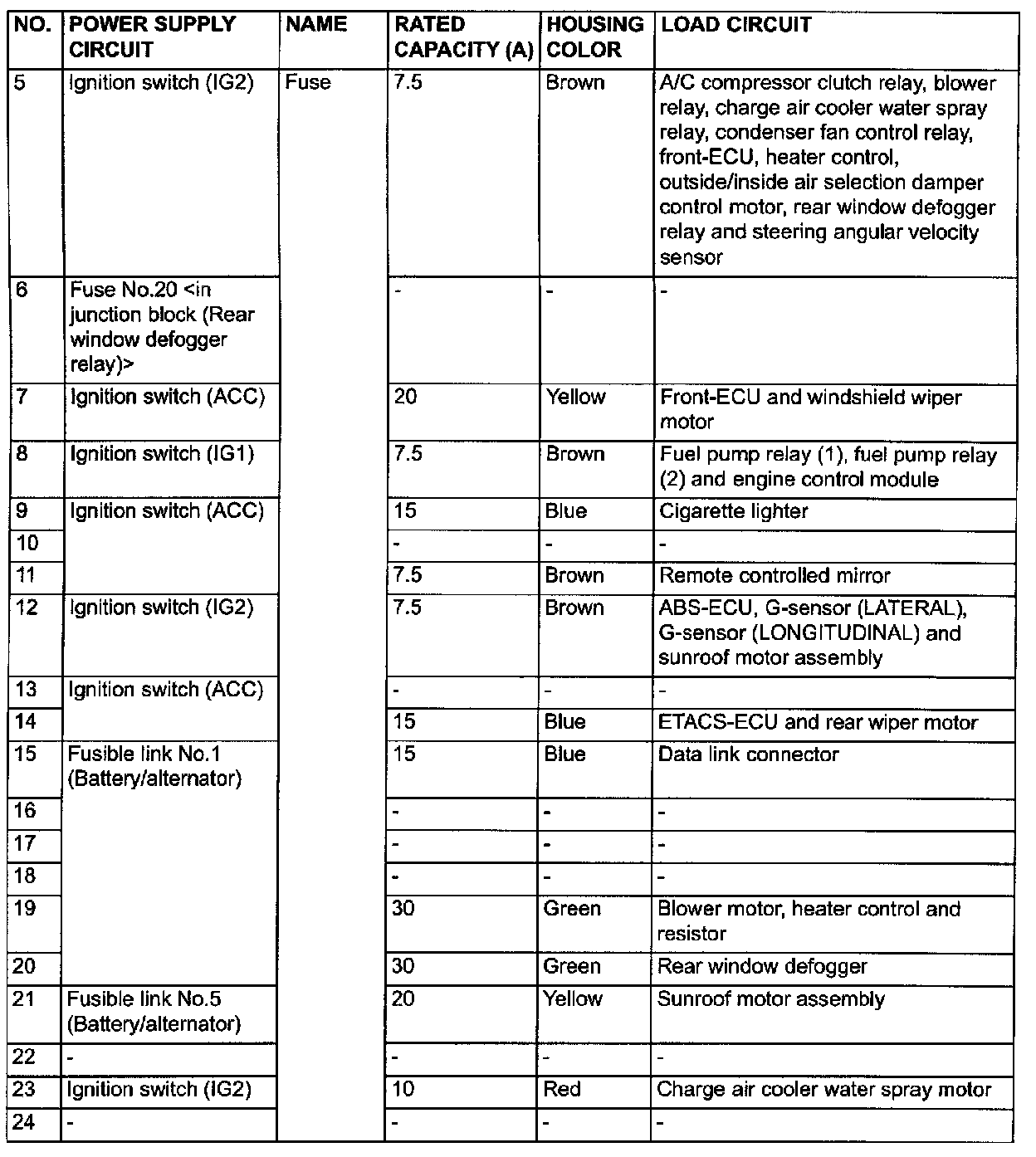

Fuses 1-24 (1 Of 3):




Fuses 1-24 (2 Of 3):




Fuses 1-24 (3 Of 3):
