Fuse: Locations

Overall View:



View A:



View B:

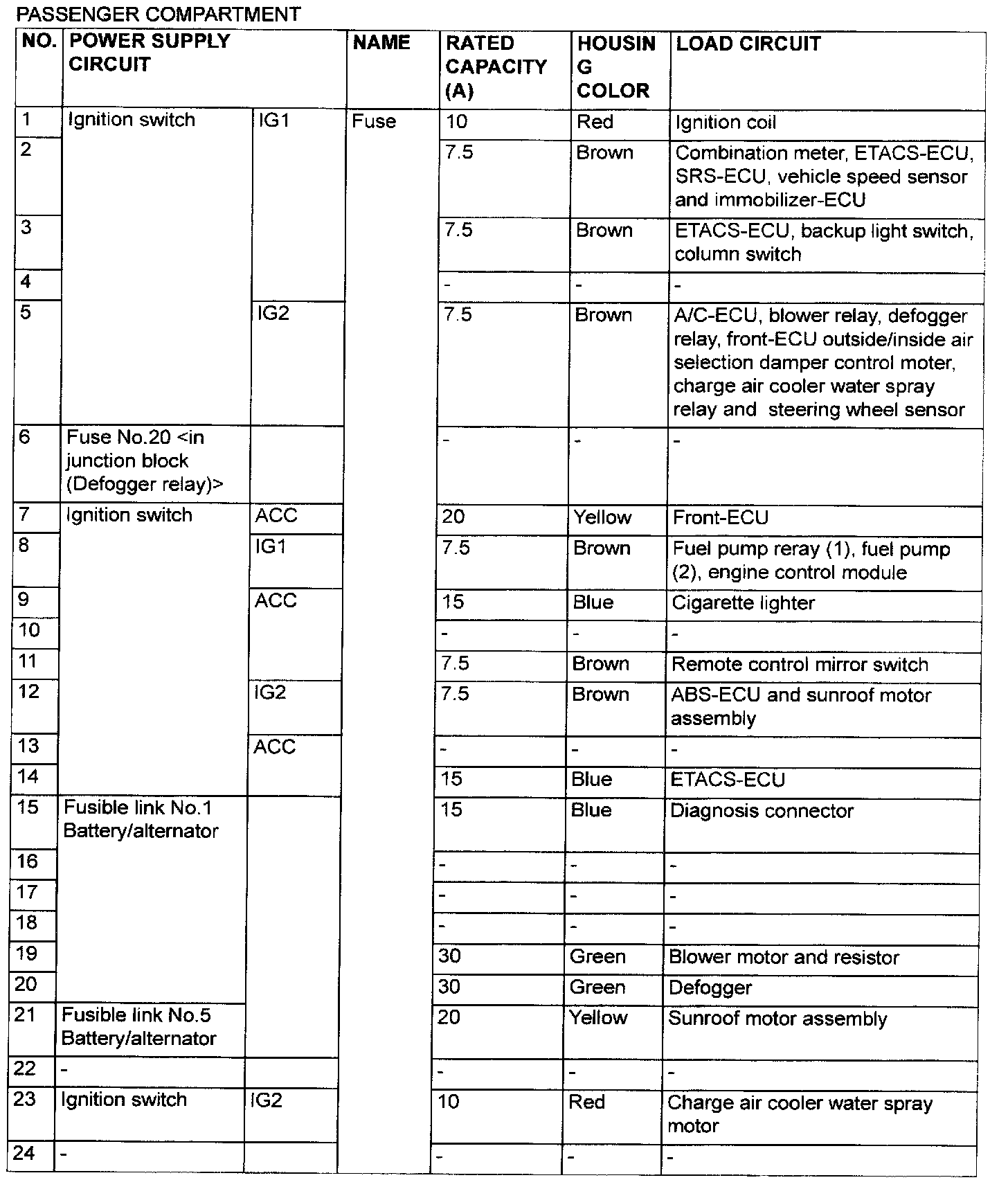

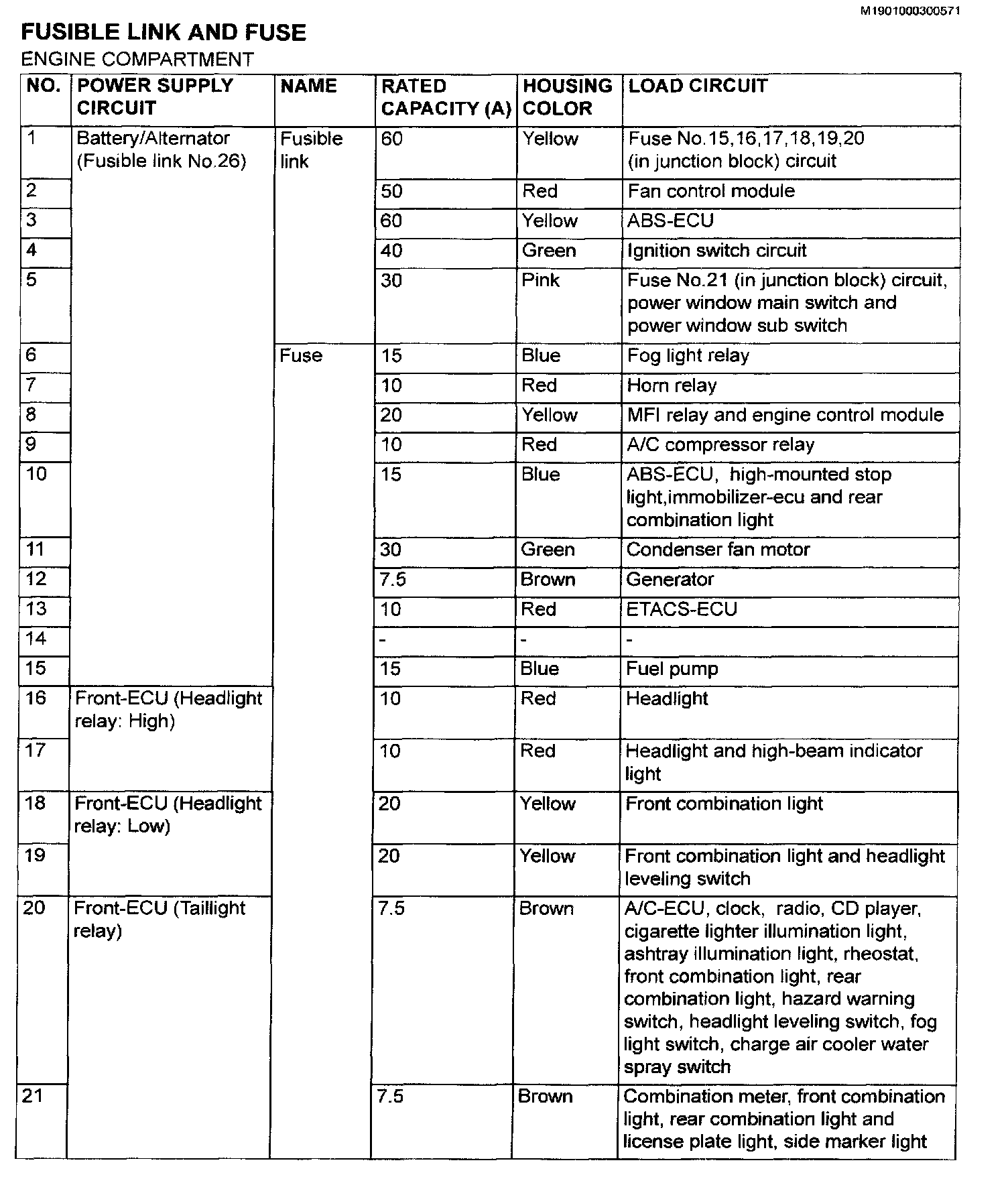

Application Table:



Application Table:



Location View:



Application Table:



Location View:
