Fuel Pump Module Disassembly and Assembly

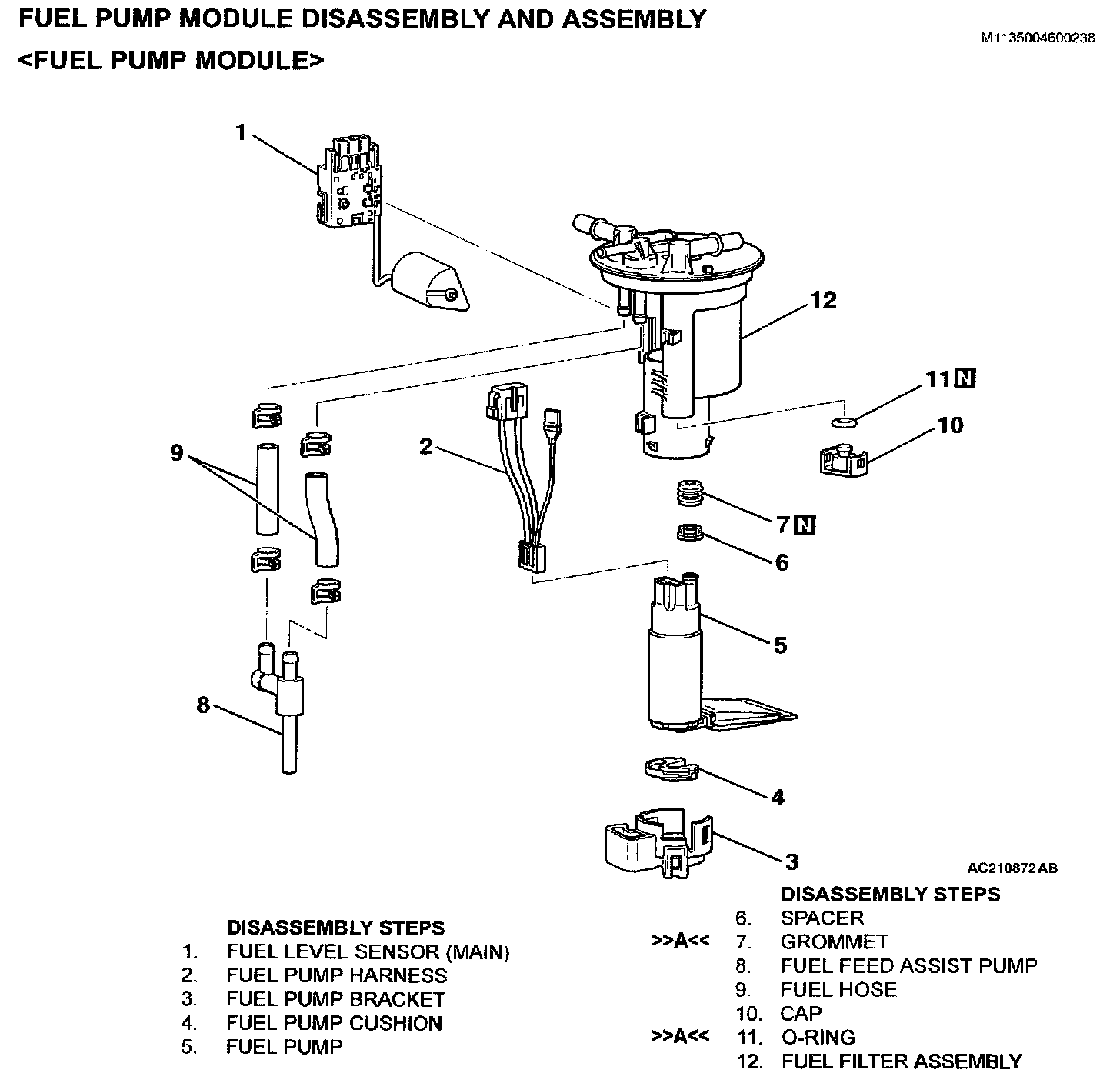

FUEL PUMP MODULE

Fuel Pump Module:






ASSEMBLY SERVICE POINT

>>A<< O-RING GROMMET/INSTALLATION
Apply gasoline on the O-ring and the grommet before mounting them to prevent damage or twisting.
