Data List Reference Table

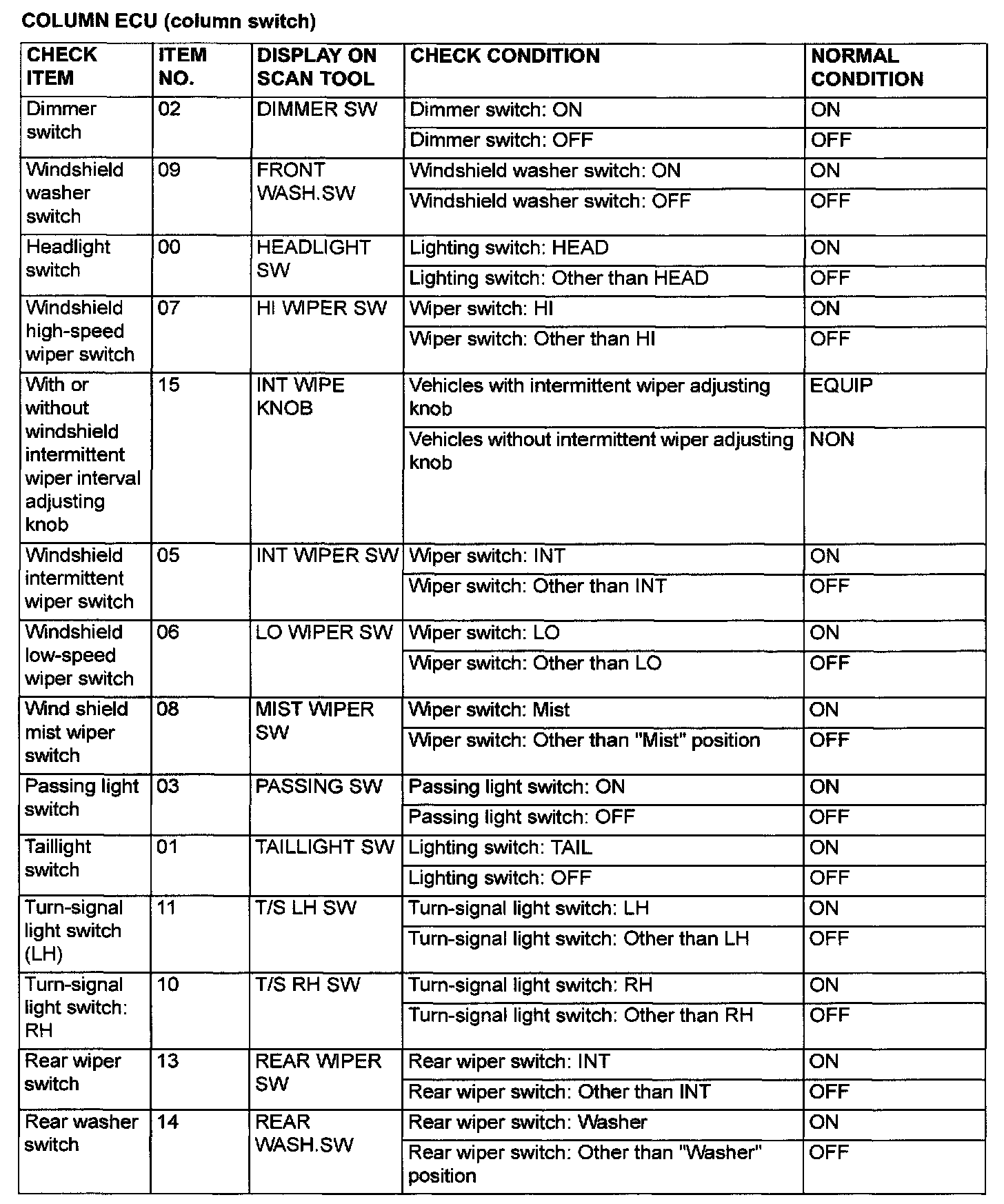

Column ECU (Column Switch):

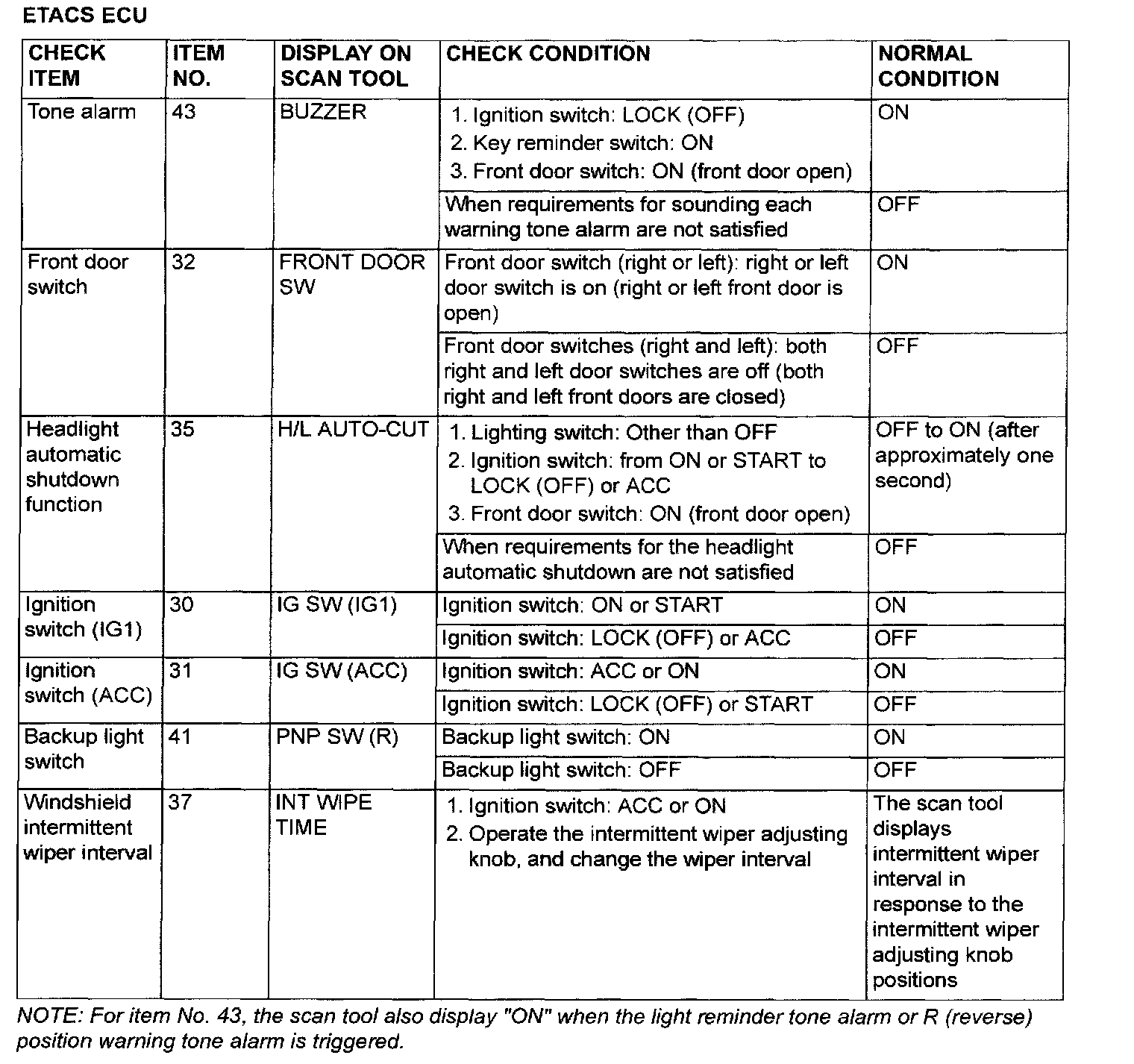

ETACS ECU:

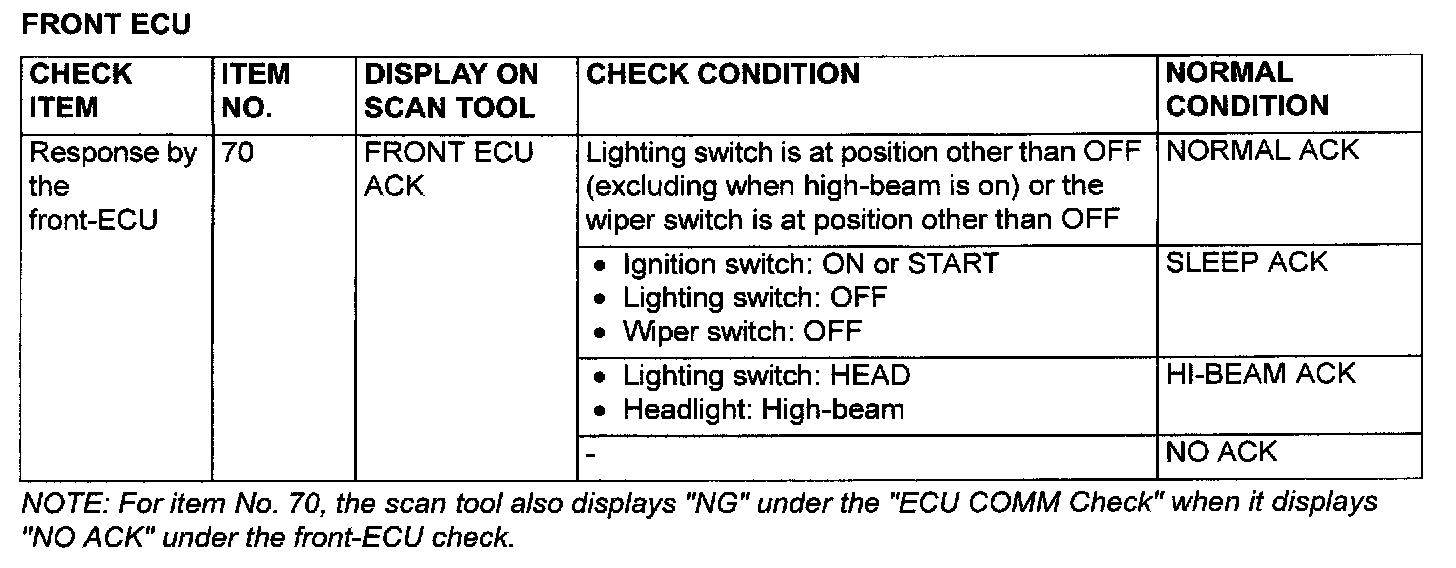

Front ECU:

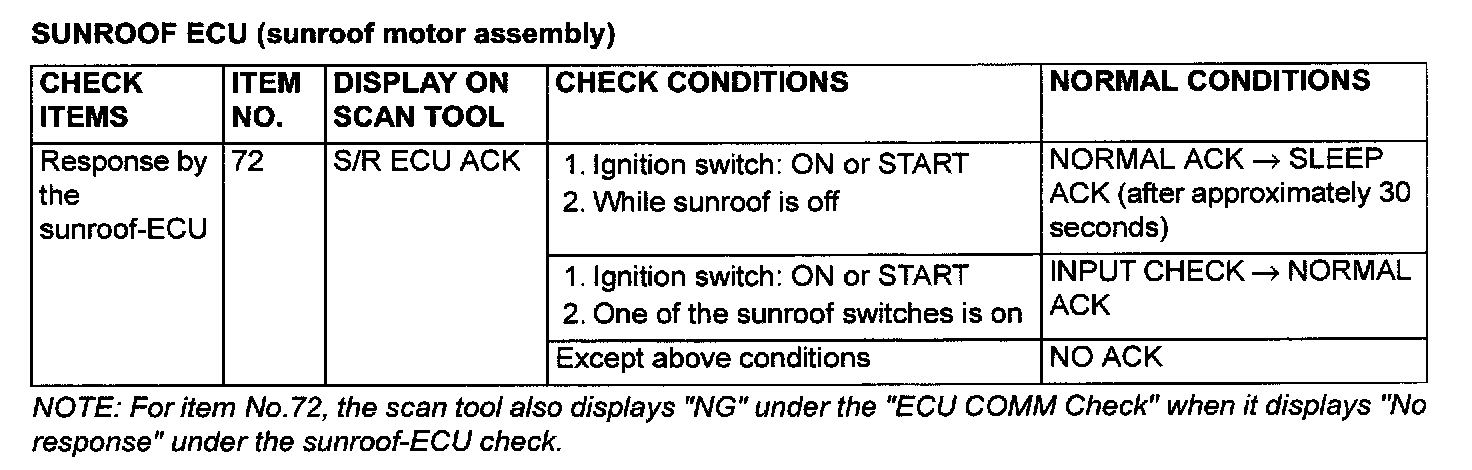

Sunroof ECU (Sunroof Motor Assembly):
