Air Bag Control Module

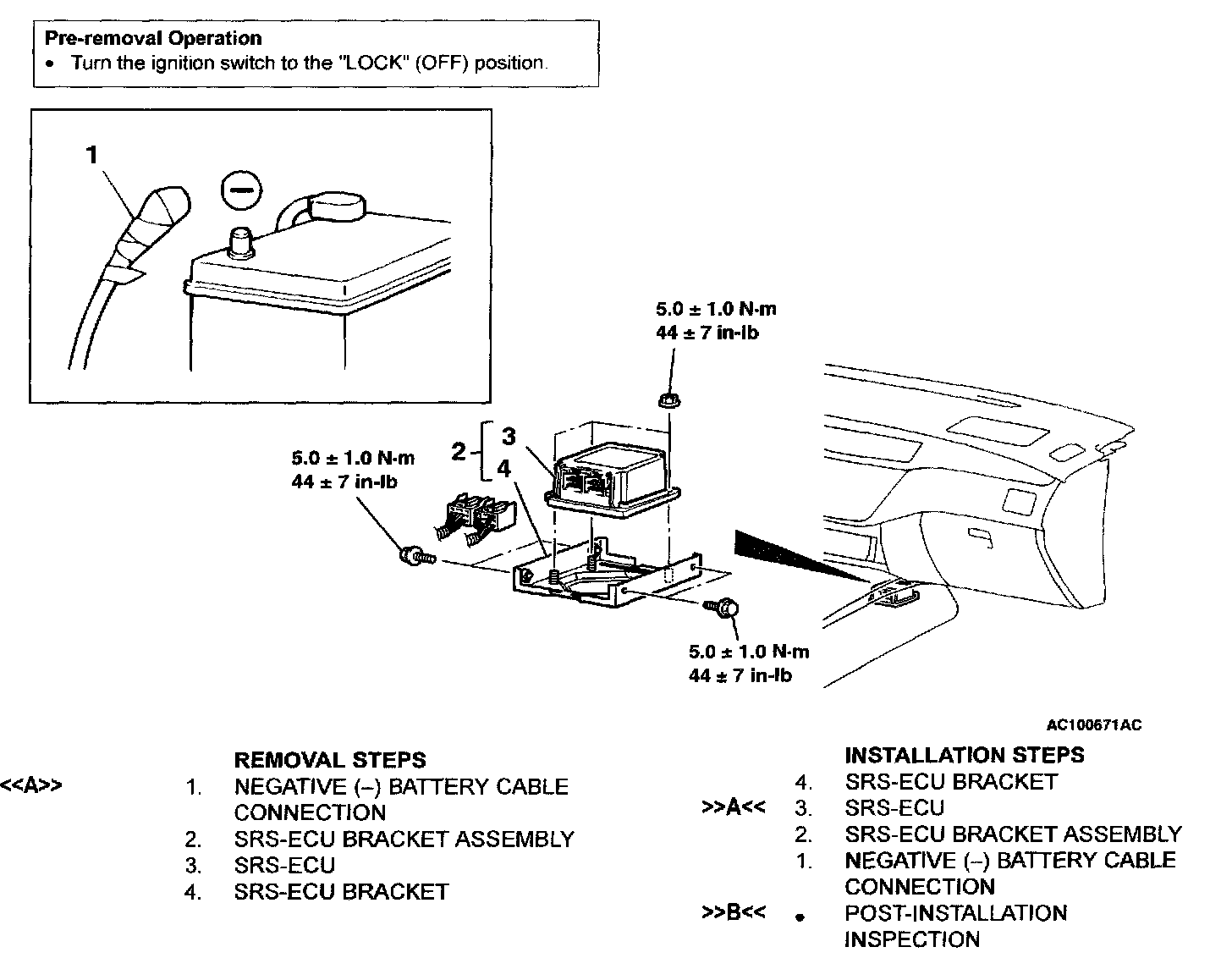

SRS CONTROL UNIT (SRS-ECU):
ITEM SPECIFICATION
SRS control unit (SRS-ECU)
SRS-ECU bracket bolt 5.0 ± 1.0 N.m (43 ± 7 in-lb)
SRS-ECU mounting nut 5.0 ± 1.0 N.m (44 ± 7 in-lb)
ITEM SPECIFICATION
SRS control unit (SRS-ECU)
SRS-ECU bracket bolt 5.0 ± 1.0 N.m (43 ± 7 in-lb)
SRS-ECU mounting nut 5.0 ± 1.0 N.m (44 ± 7 in-lb)
