INSPECTION PROCEDURE 2: The Ignition Key cannot be Registered.: Diagnosis

Required Special Tools:

• MB991502: Scan Tool (MUT-II)
• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: V.C.I.
  • MB991827: USB Cable
  • MB991911: Main Harness B

1. STEP 1. Using scan tool MB991502 or MB991958, read the diagnostic trouble code (DTC).
   CAUTION: To prevent damage to scan tool MB991502 or MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991502 or MB991958.

   Use scan tool MB991502 or MB991958 to check if DTC 11 is set.

   1. Connect scan tool MB991502 or MB991958 to the data link connector.
   2. Turn the ignition switch "ON" position.
   3. Read the immobilizer system diagnosis code.

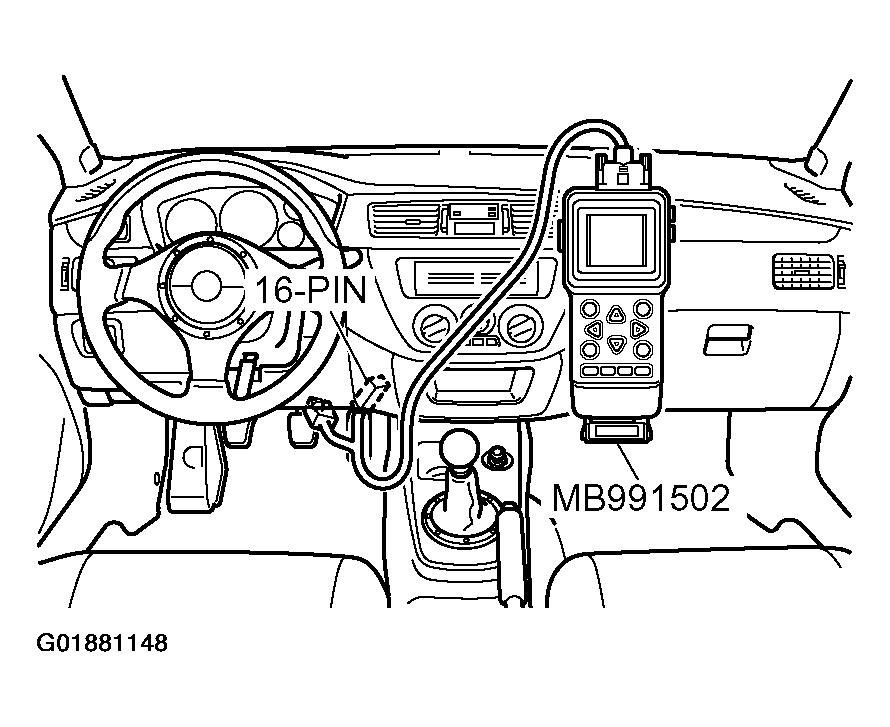

      Fig 1: Connecting Scan Tool To Data Link Connector

      Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Does DTC 11 reset?

   1. YES :  Refer to DIAGNOSTIC TROUBLE CODE CHART  .
   2. NO :  Replace the ignition key that cannot be registered. Then re-register the encrypted code. (Refer to ON-VEHICLE SERVICE  ). Verify that the ignition key can be registered, then Go to Step 2.

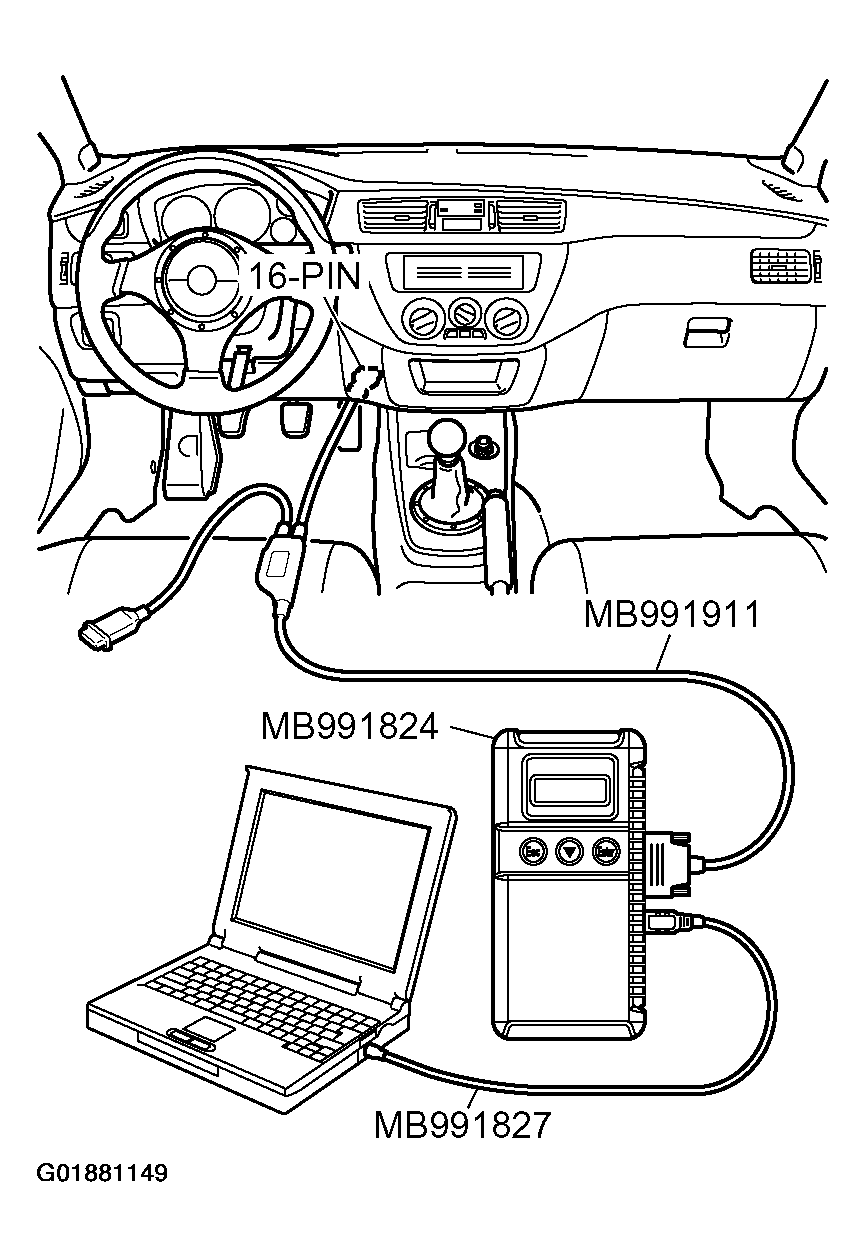

   Fig 2: Connecting Scan Tool To Data Link Connector And Personal Computer

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Retest the system.

   Q: Does registered ignition key function properly?

   1. YES :  The procedure is complete. (If no malfunction are not found in all steps, an intermittent malfunction is suspected.
   2. NO :  Replace the immobilizer-ECU.
