Function System

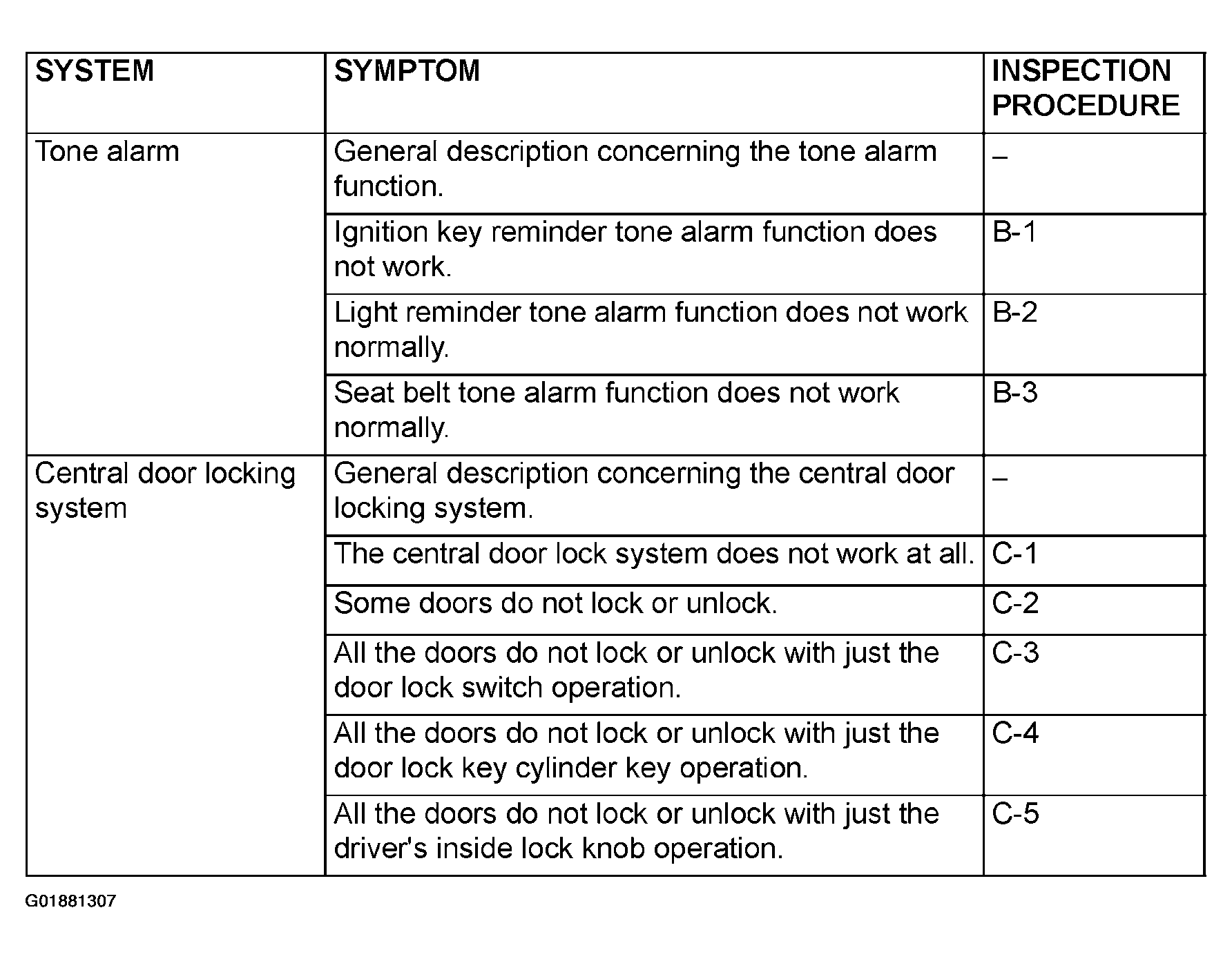

Fig 1: Function System Symptom Chart (1 Of 4)
G01881307Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

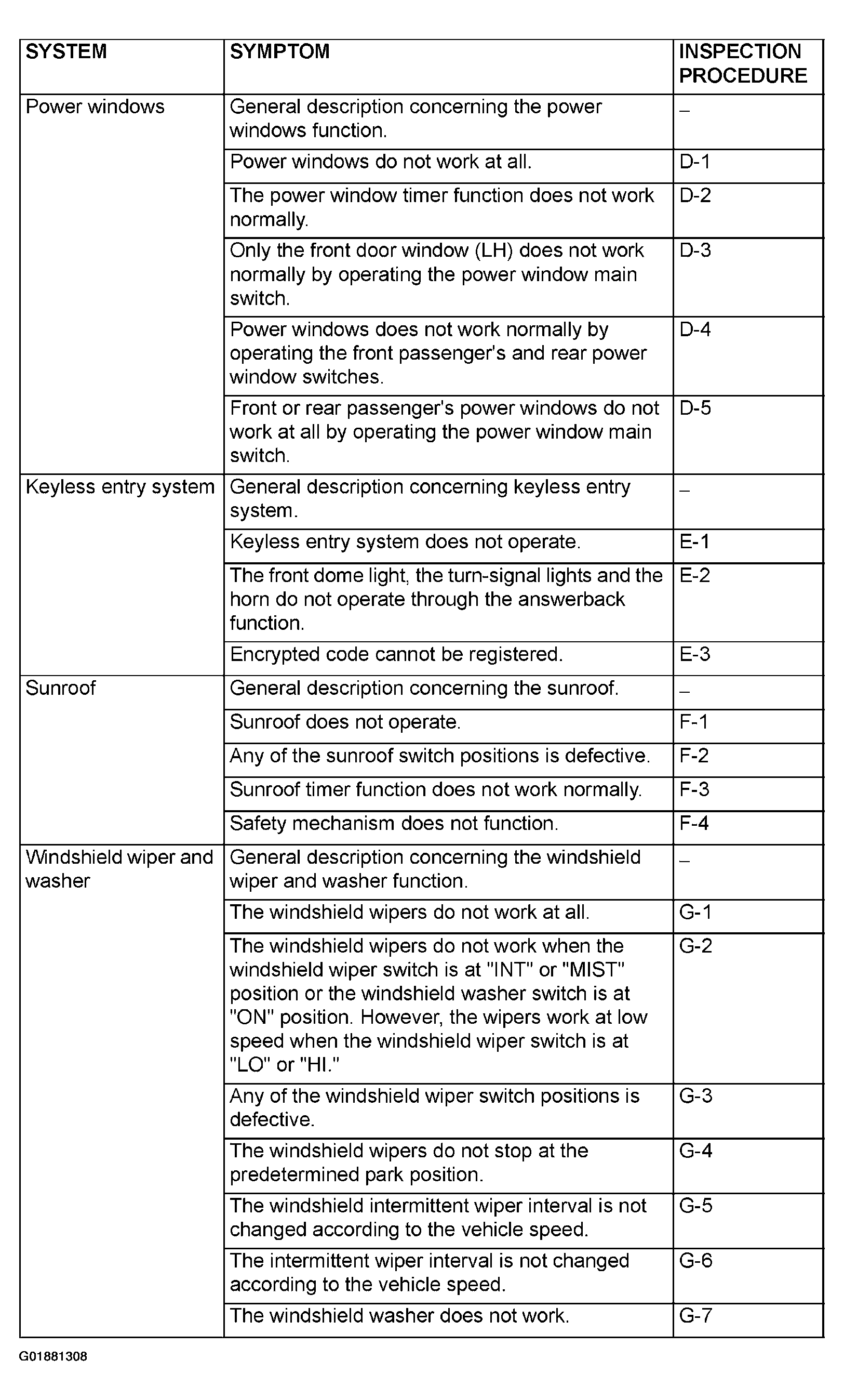

Fig 2: Function System Symptom Chart (2 Of 4)
G01881308Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

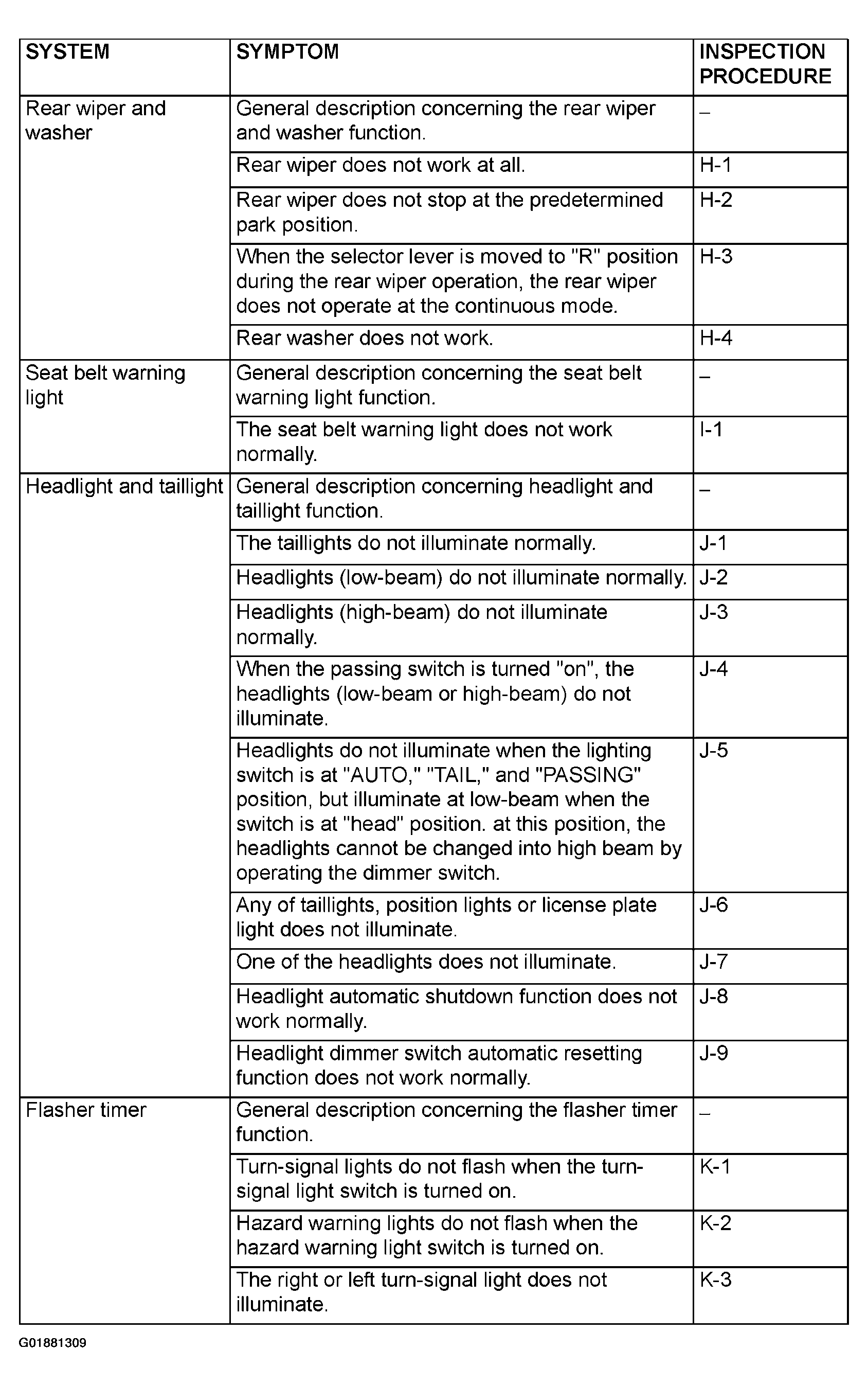

Fig 3: Function System Symptom Chart (3 Of 4)
G01881309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

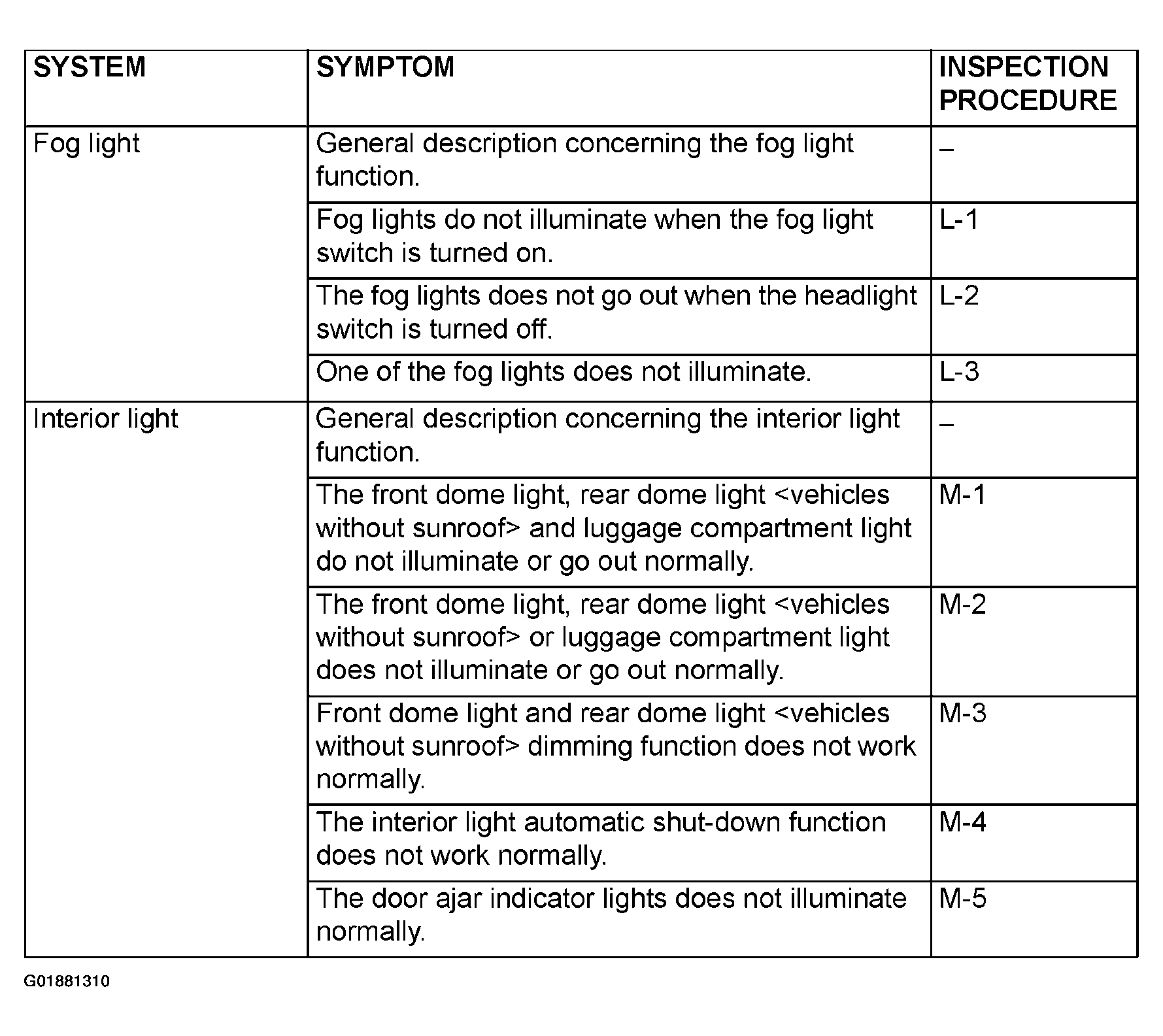

Fig 4: Function System Symptom Chart (4 Of 4)
G01881310Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
