INSPECTION PROCEDURE D-1: Power Windows: Power windows do not work at all.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991502 or MB991958 and SWS monitor kit MB991862. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR"  .

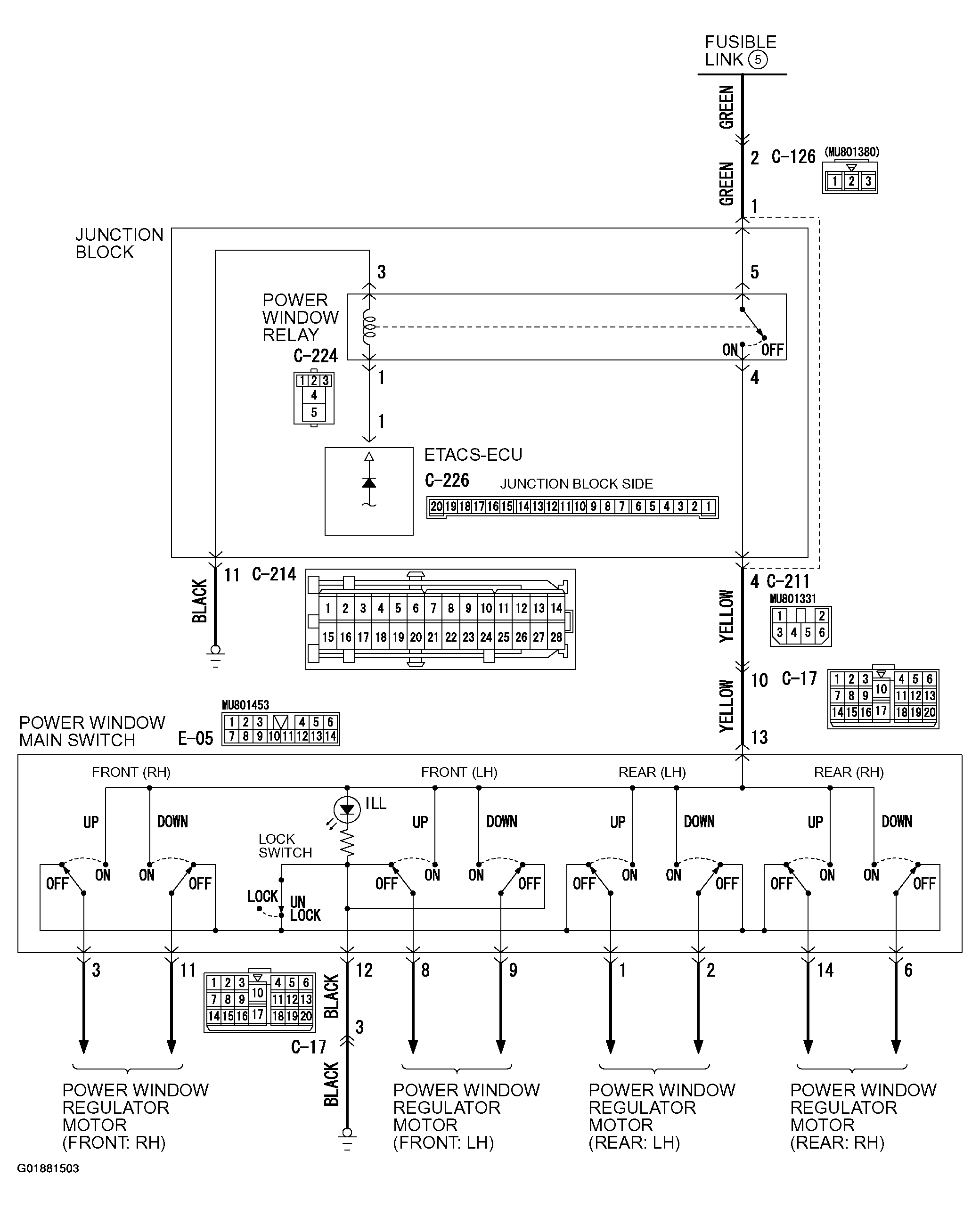

Fig 1: Power Window Relay Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

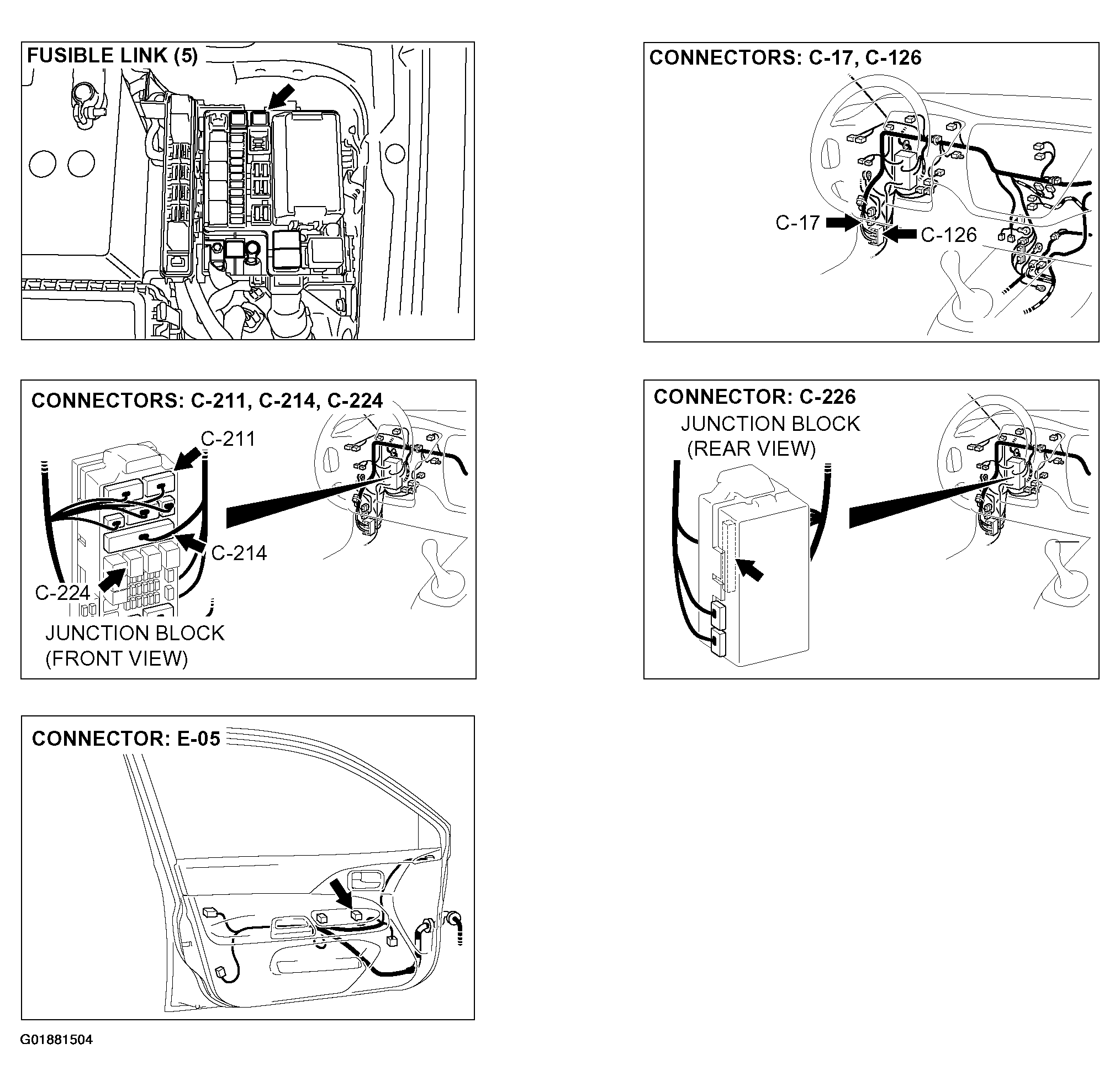

Fig 2: Identifying Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
