INSPECTION PROCEDURE 2: Communication between the Scan Tool and the ABS-ECU is not possible.: Notes

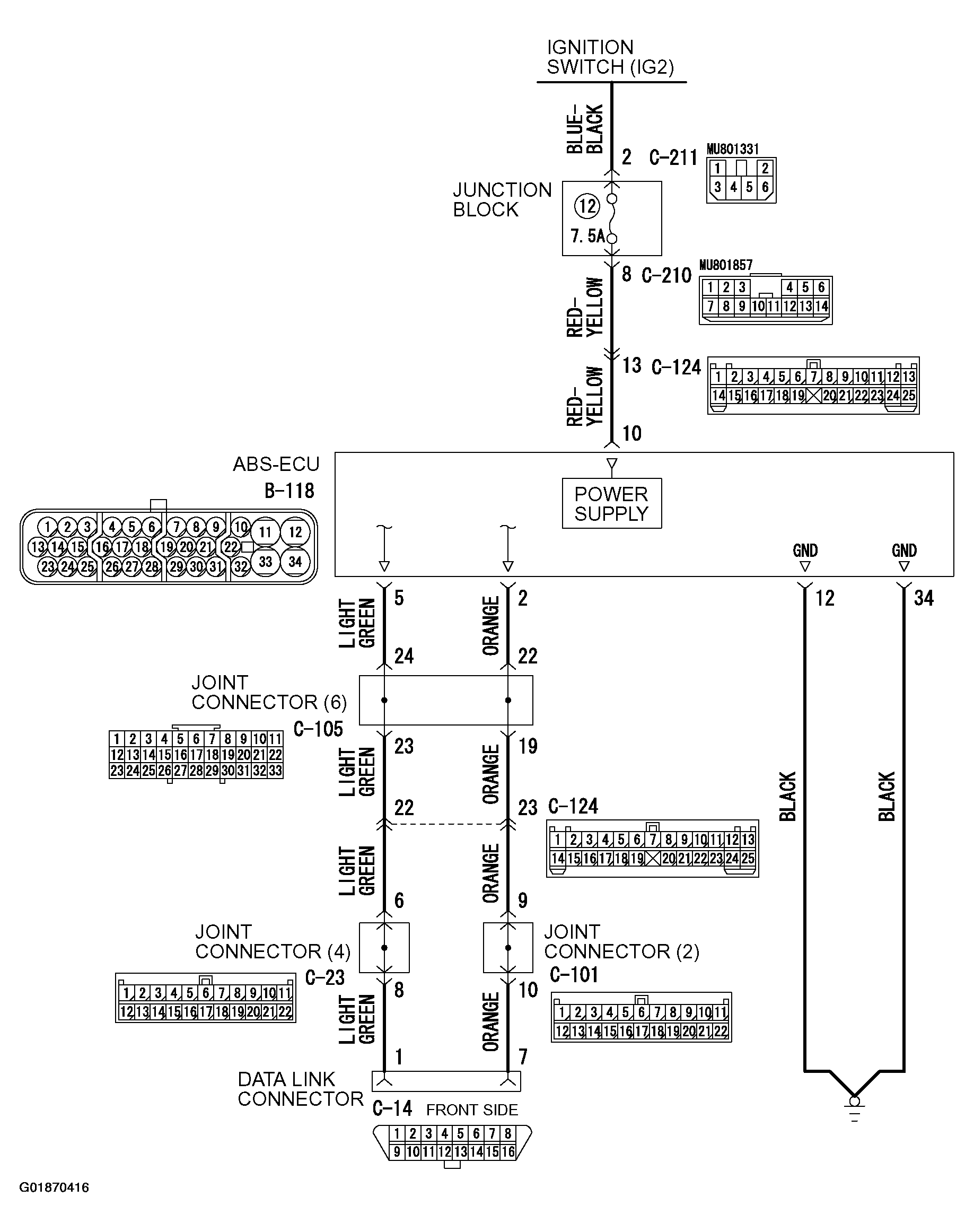

Fig 1: Inspection Procedure 2 ABS-ECU Power Supply/Ground And Data Link Connector Circuit Diagram (1 Of 2)
G01870416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

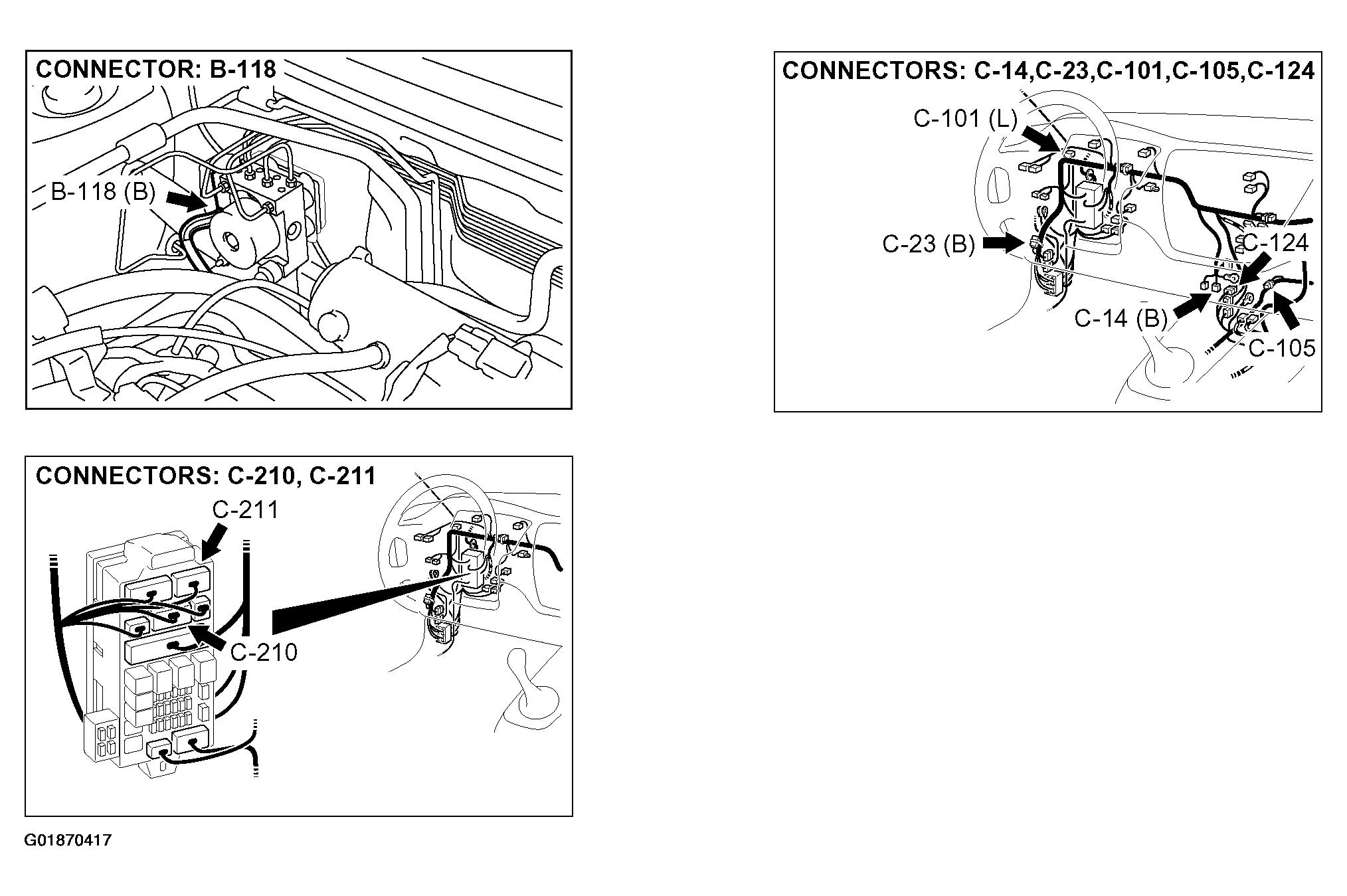

Fig 2: Inspection Procedure 2 ABS-ECU Power Supply/Ground And Data Link Connector Circuit Diagram (2 Of 2)
G01870417Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
