Installation (Montero Sport)

To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Check for any fuel leaks and repair as necessary.

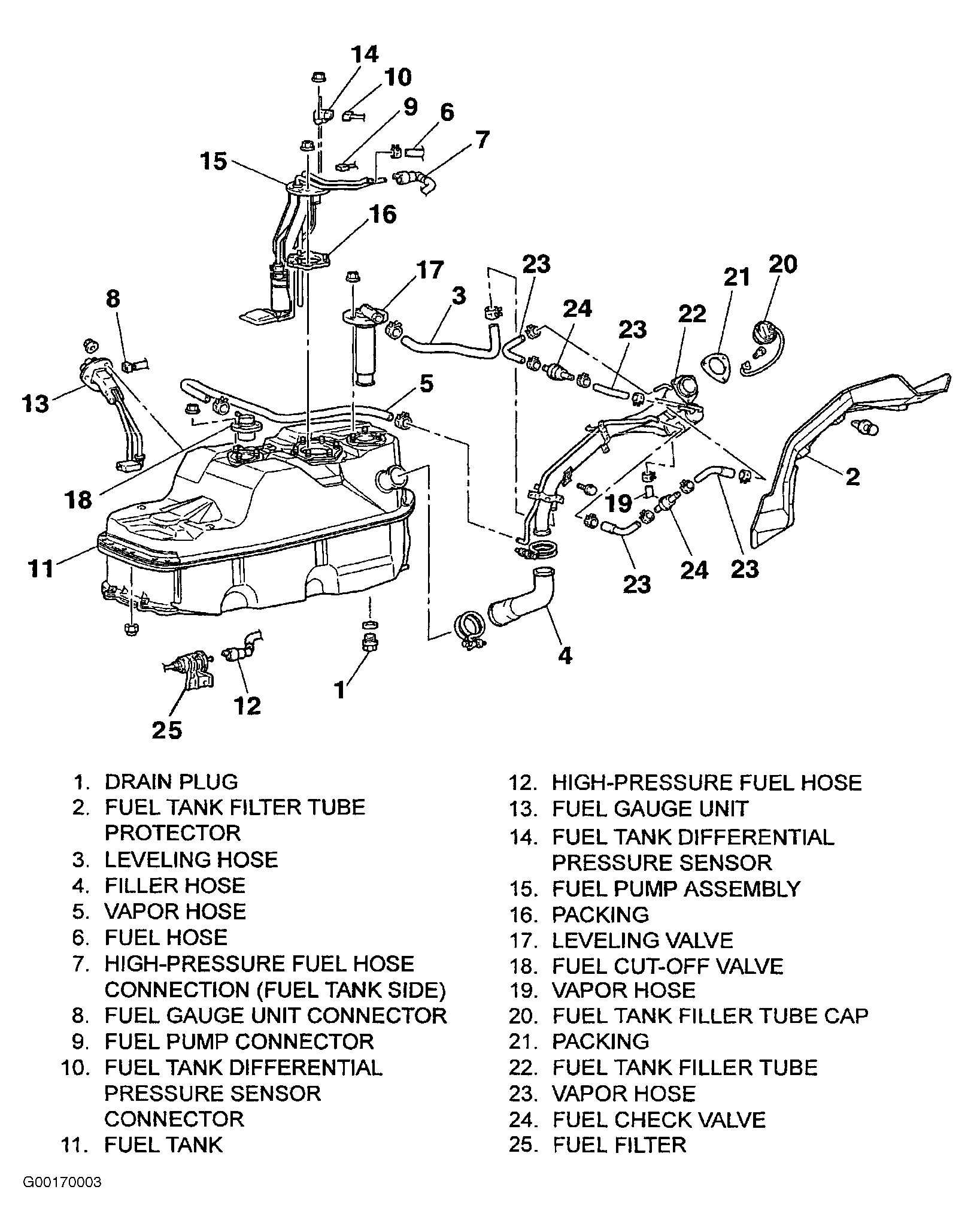

Fig 1: Exploded View Of Fuel Tank & Related Components (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
