Inspection Procedure 1: Communication With Scan Tool Is Not Possible (Communication With All Systems Is Not Possible): Notes

For data link connector location, related circuit and connector terminal identification, see Fig 1 .

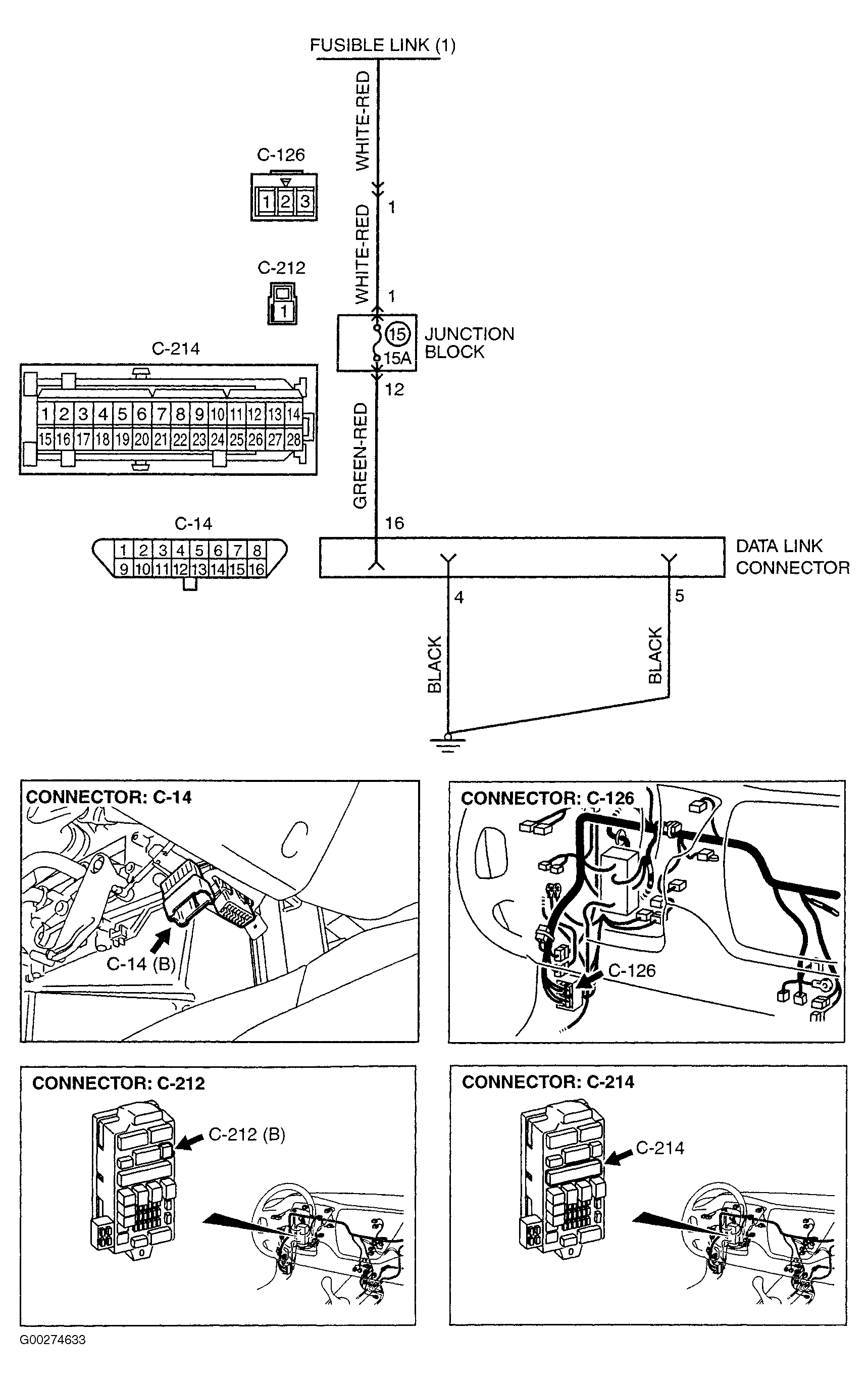

Fig 1: Identifying Data Link Connector Circuits, Related Components & Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
