Heater Control Assembly Disassembly And Assembly: Notes

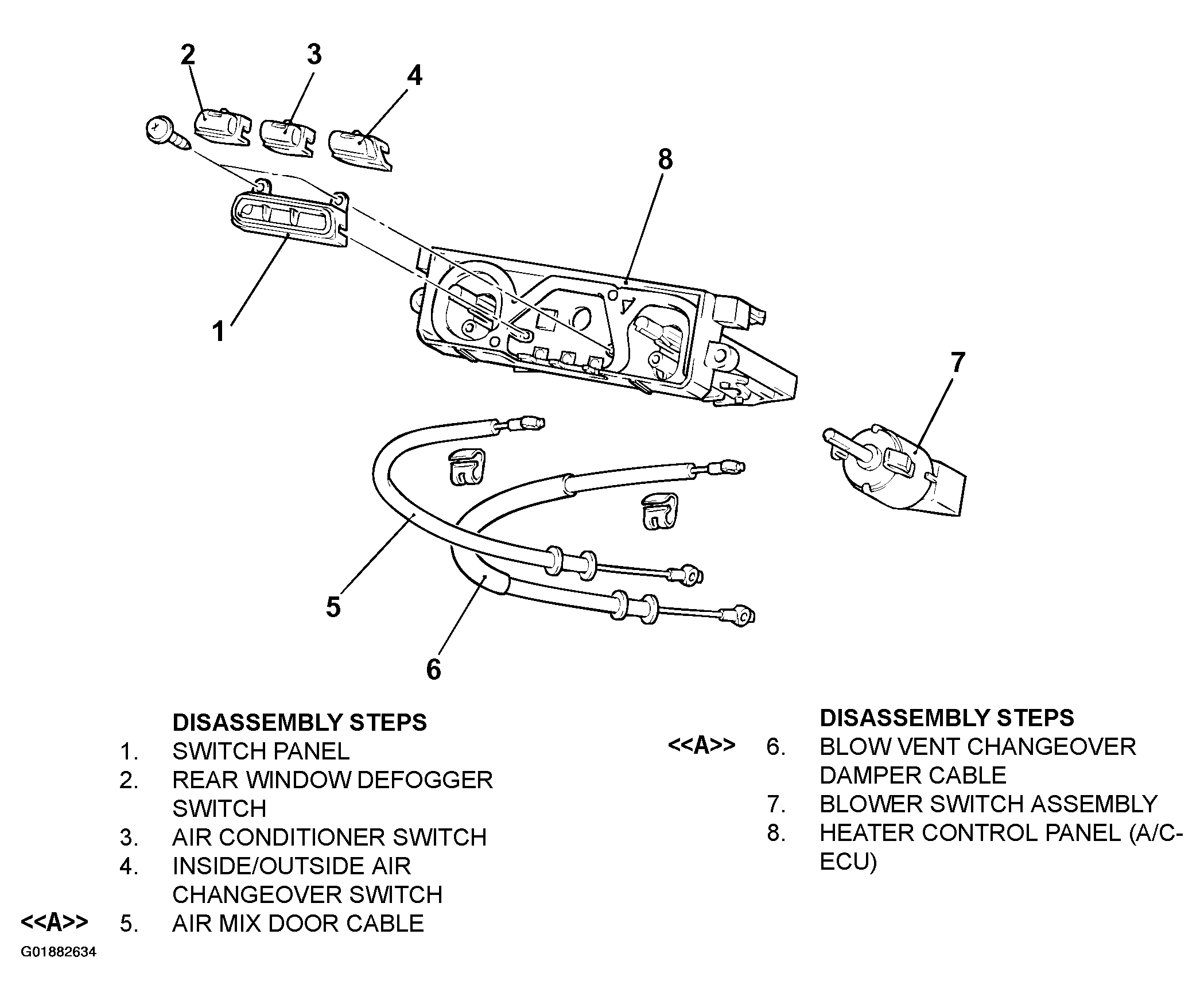

Fig 1: Exploded View Of Heater Control Assembly
G01882634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
