Column Switch Connector C-206 Connector End View (Evolution)

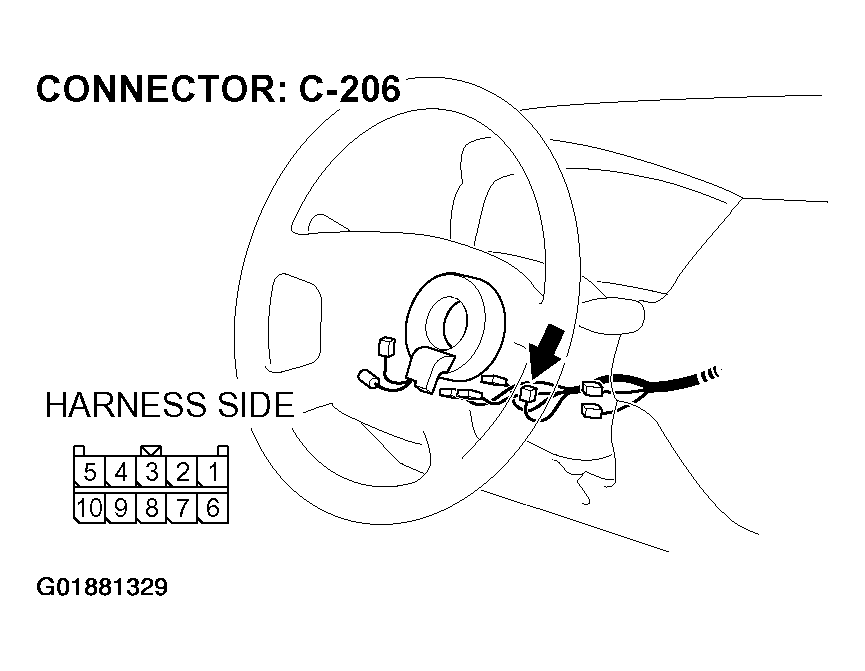

Fig 1: Column Switch Connector C-206 Connector End View (Evolution)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
