Removal And Installation: Notes

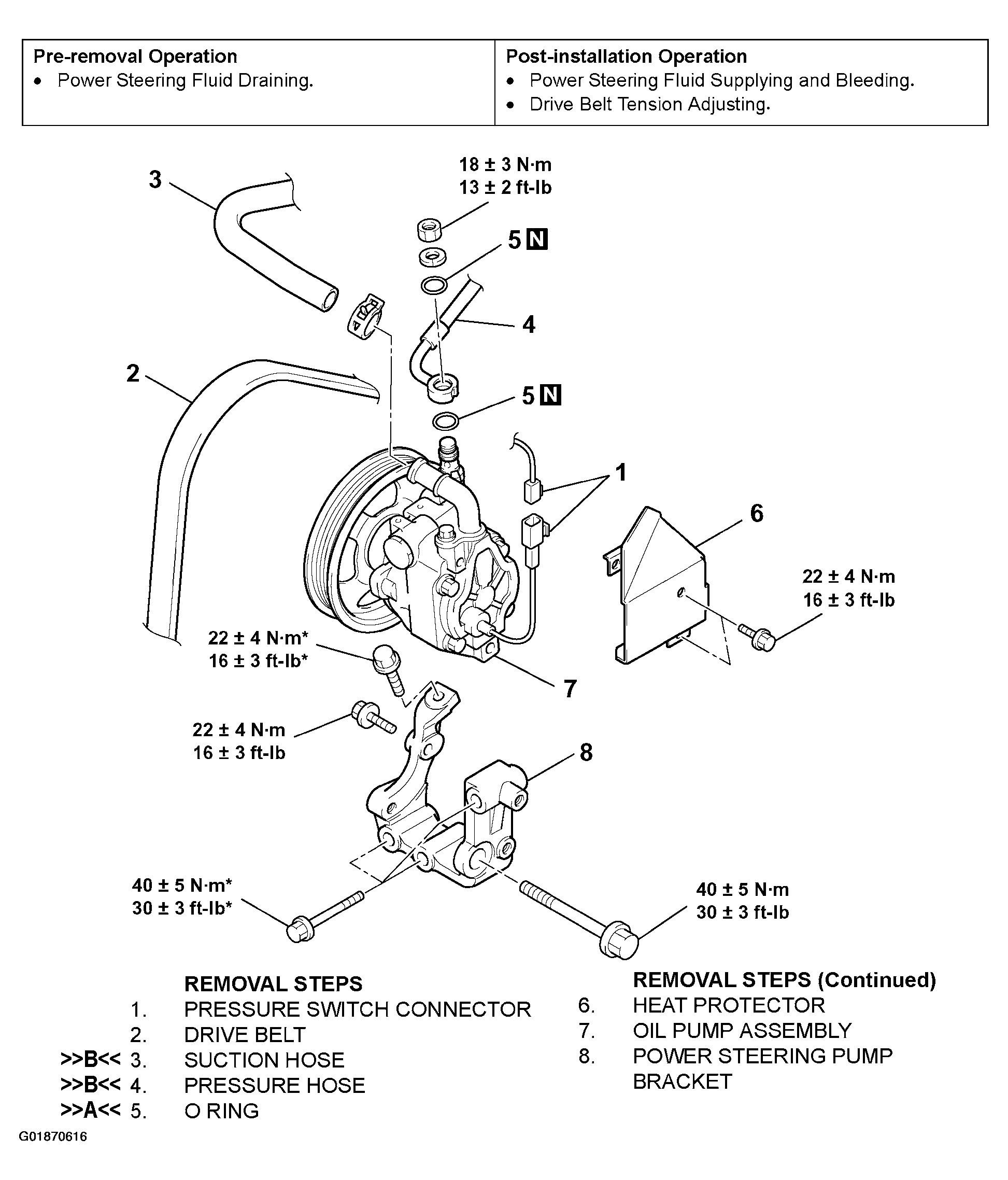

Fig 1: Exploded View And Torque Specifications Of Power Steering Oil Pump Assembly
G01870616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
