Disassembly And Assembly

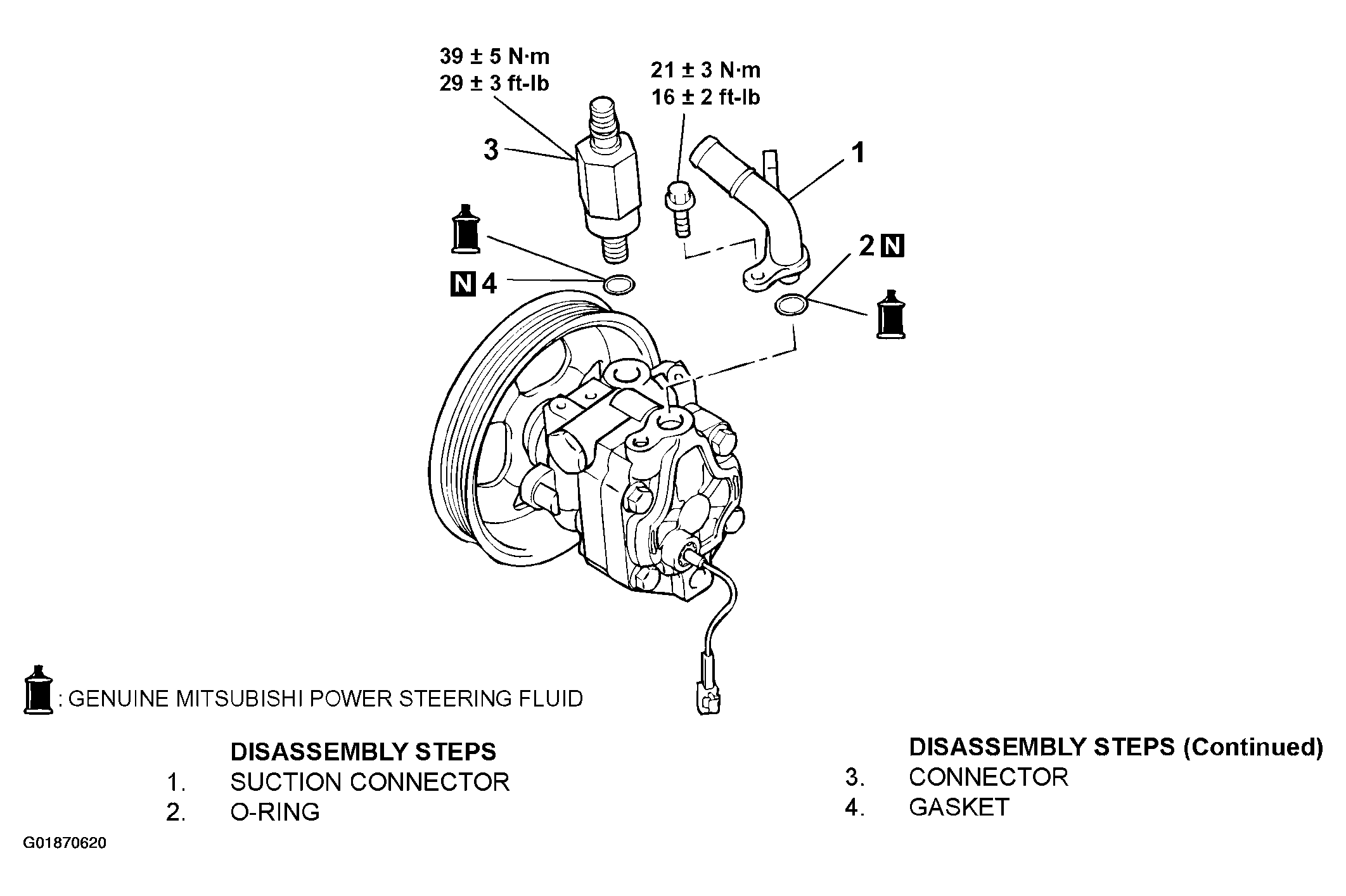

Fig 1: Suction Connector, Connector O-Ring And Torque Specifications
G01870620Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
