Special Tools

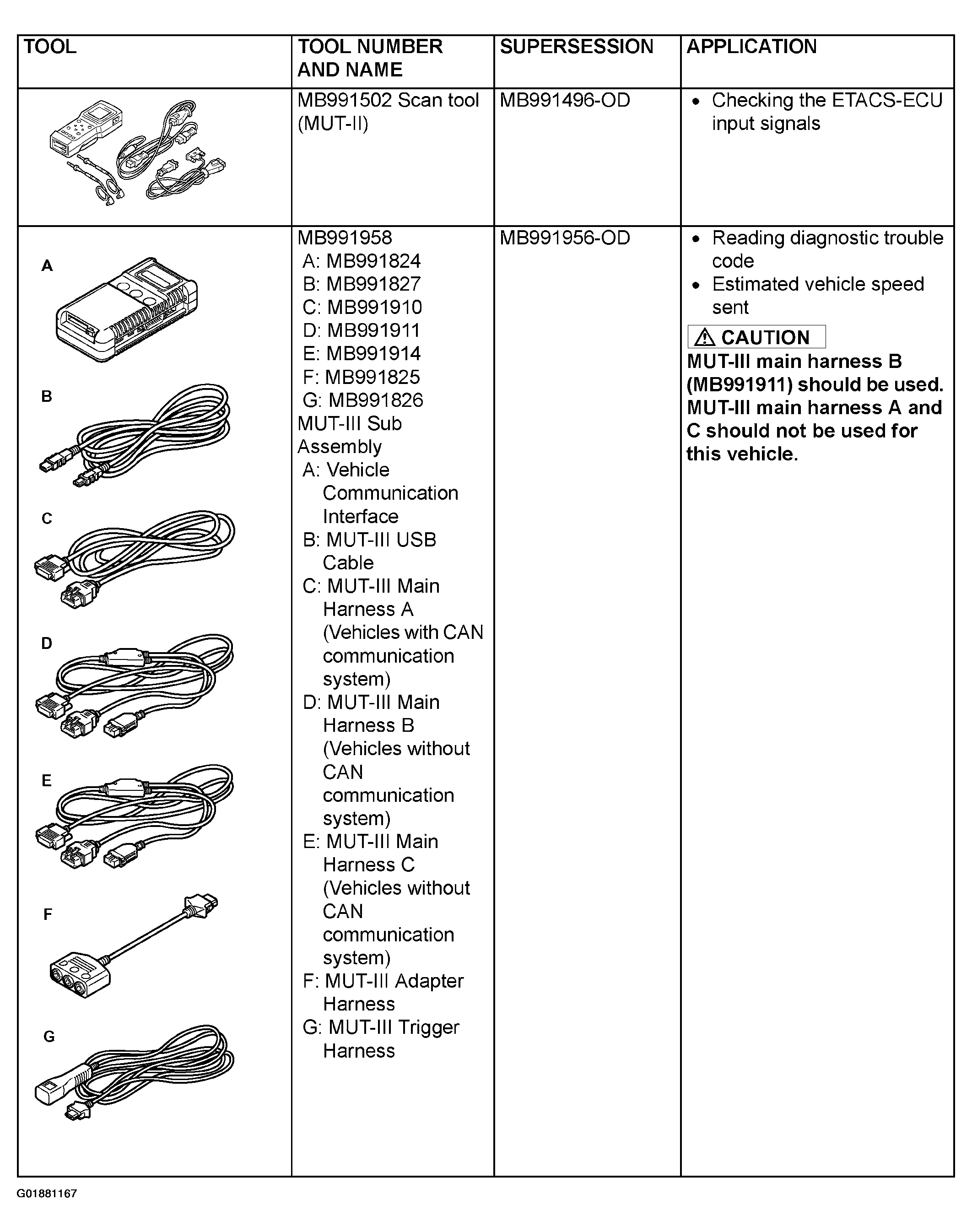

Fig 1: Special Tools Specifications (1 Of 2)
G01881167Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

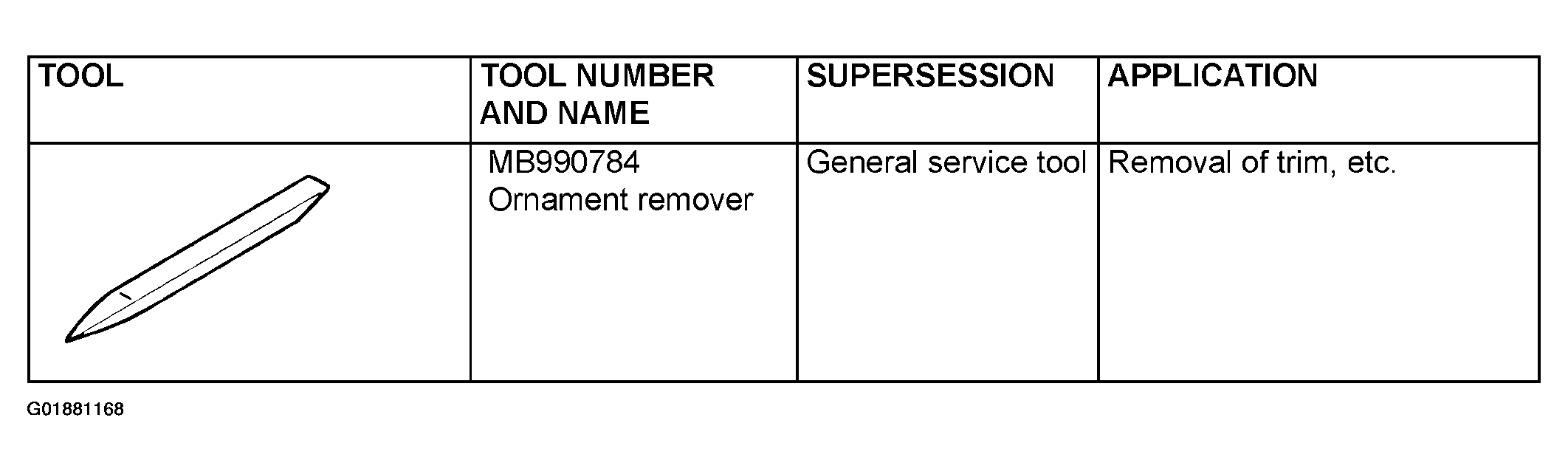

Fig 2: Special Tools Specifications (2 Of 2)
G01881168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
