Main Switch

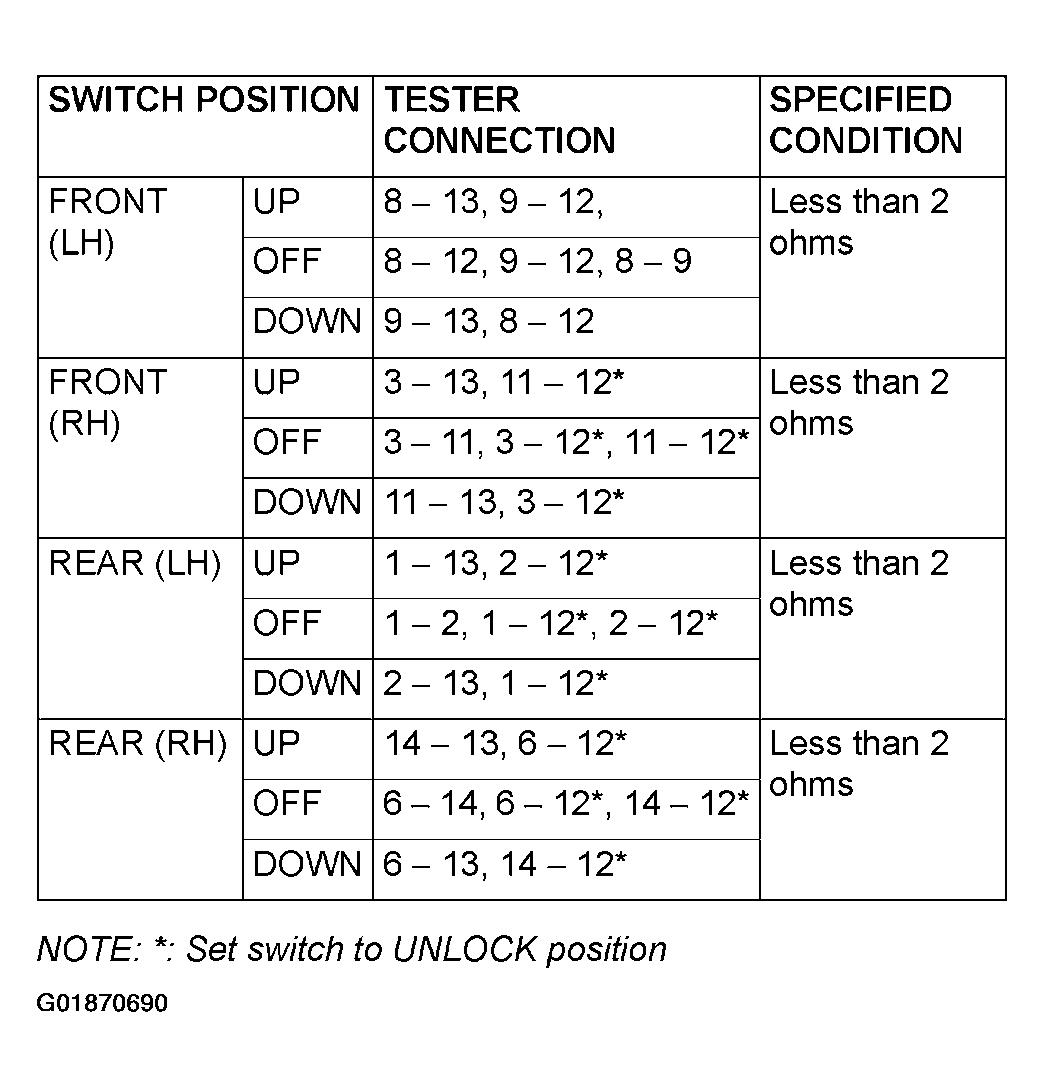

Fig 1: Power Window Switch Continuity Specification Table
G01870690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

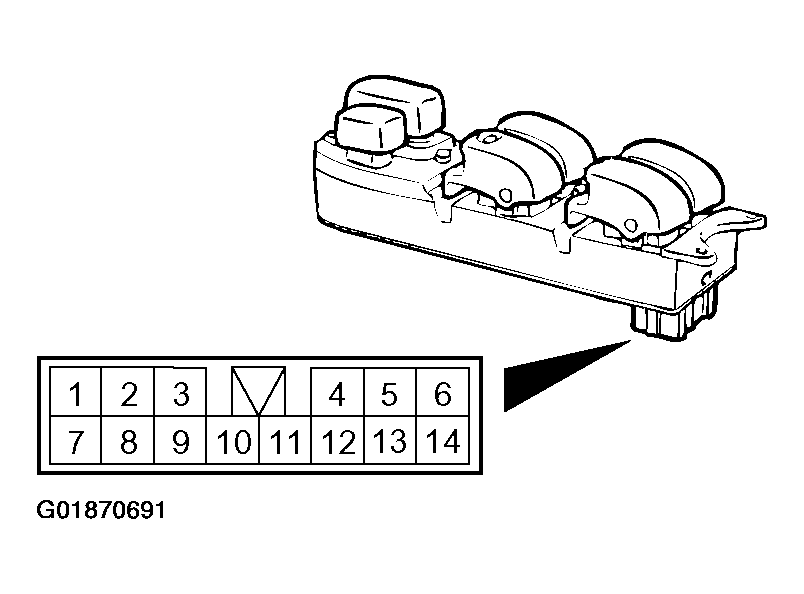

Fig 2: Identifying Main Switch & Terminal Identification
G01870691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
