Sub Switch

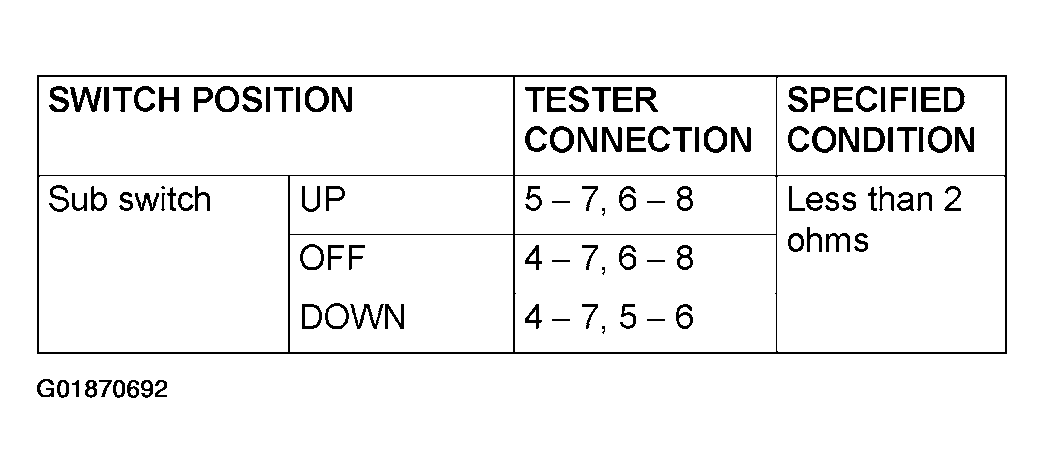

Fig 1: Sub Switch Window Switch Continuity Specification Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

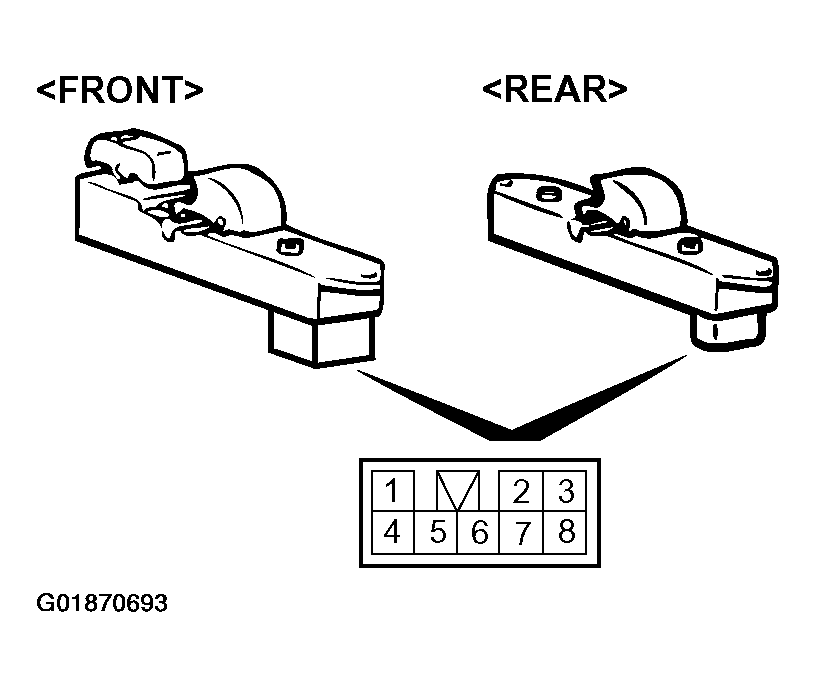

Fig 2: Identifying Sub Switch & Terminal Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
