Removal & Installation: Notes

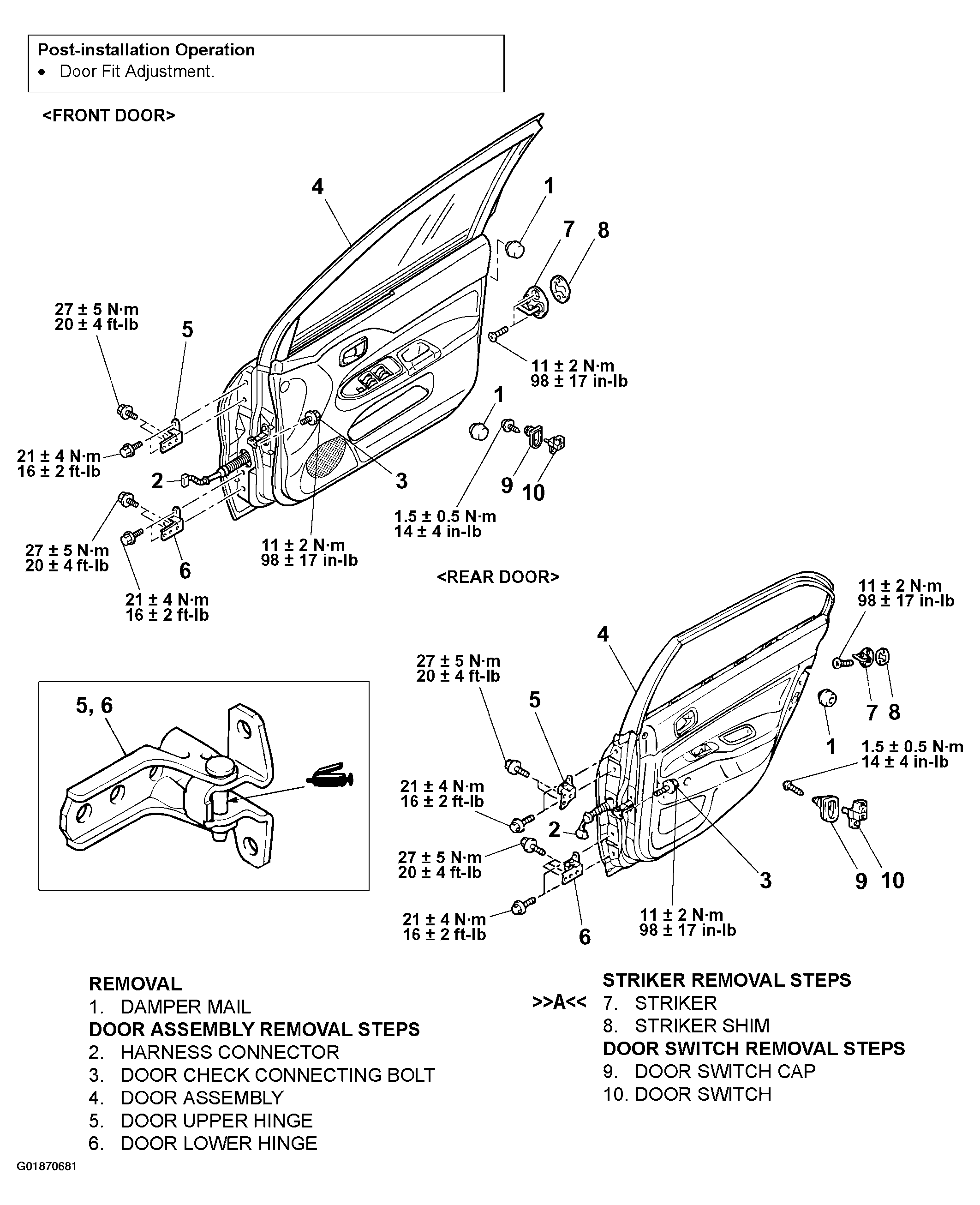

Fig 1: Door Assembly Removal Procedure & Torque Specifications
G01870681Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
