Power Window Relay Check

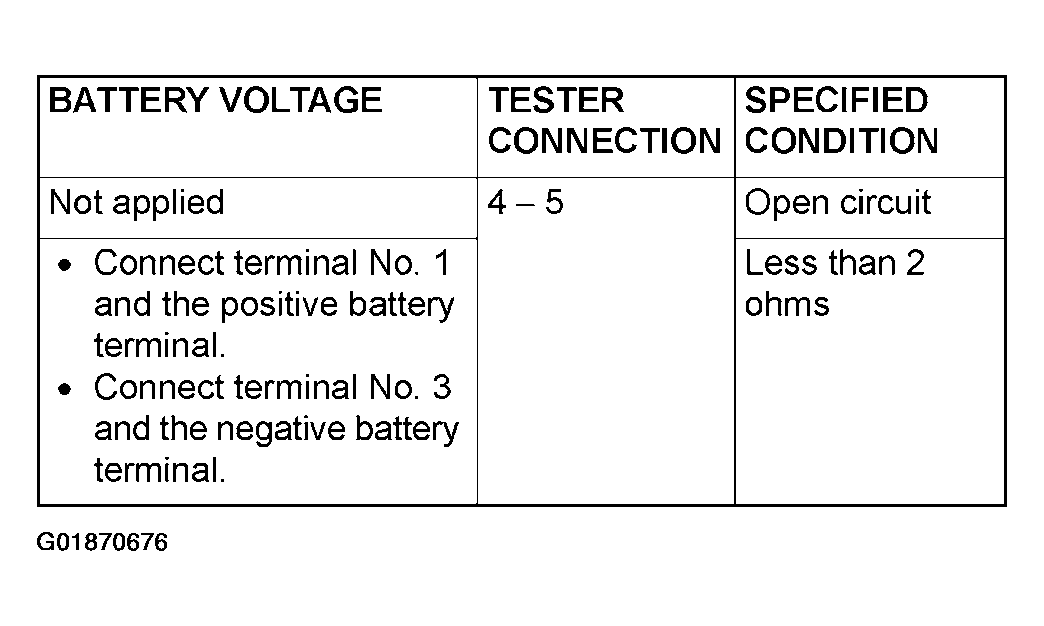

Fig 1: Power Window Relay Specifications Table
G01870676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

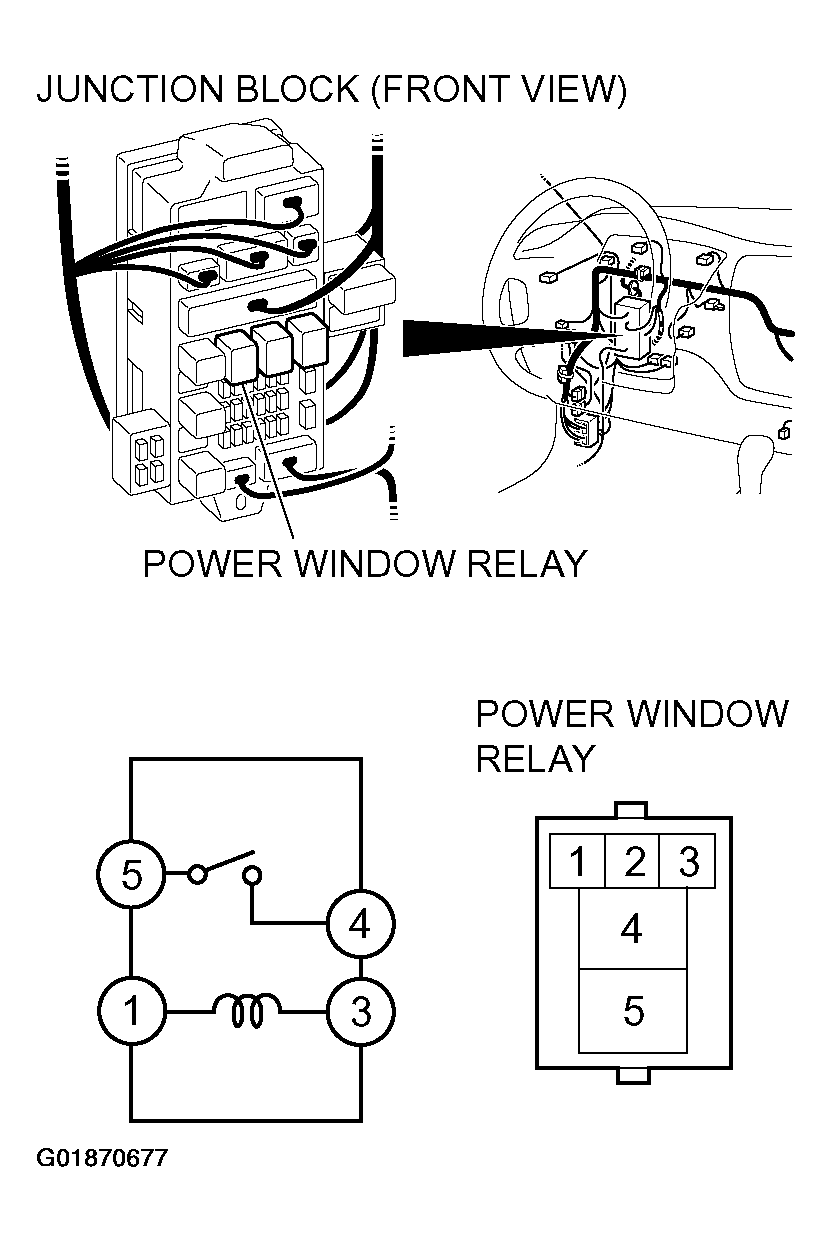

Fig 2: Checking Power Window Relay
G01870677Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
