Removal And Installation

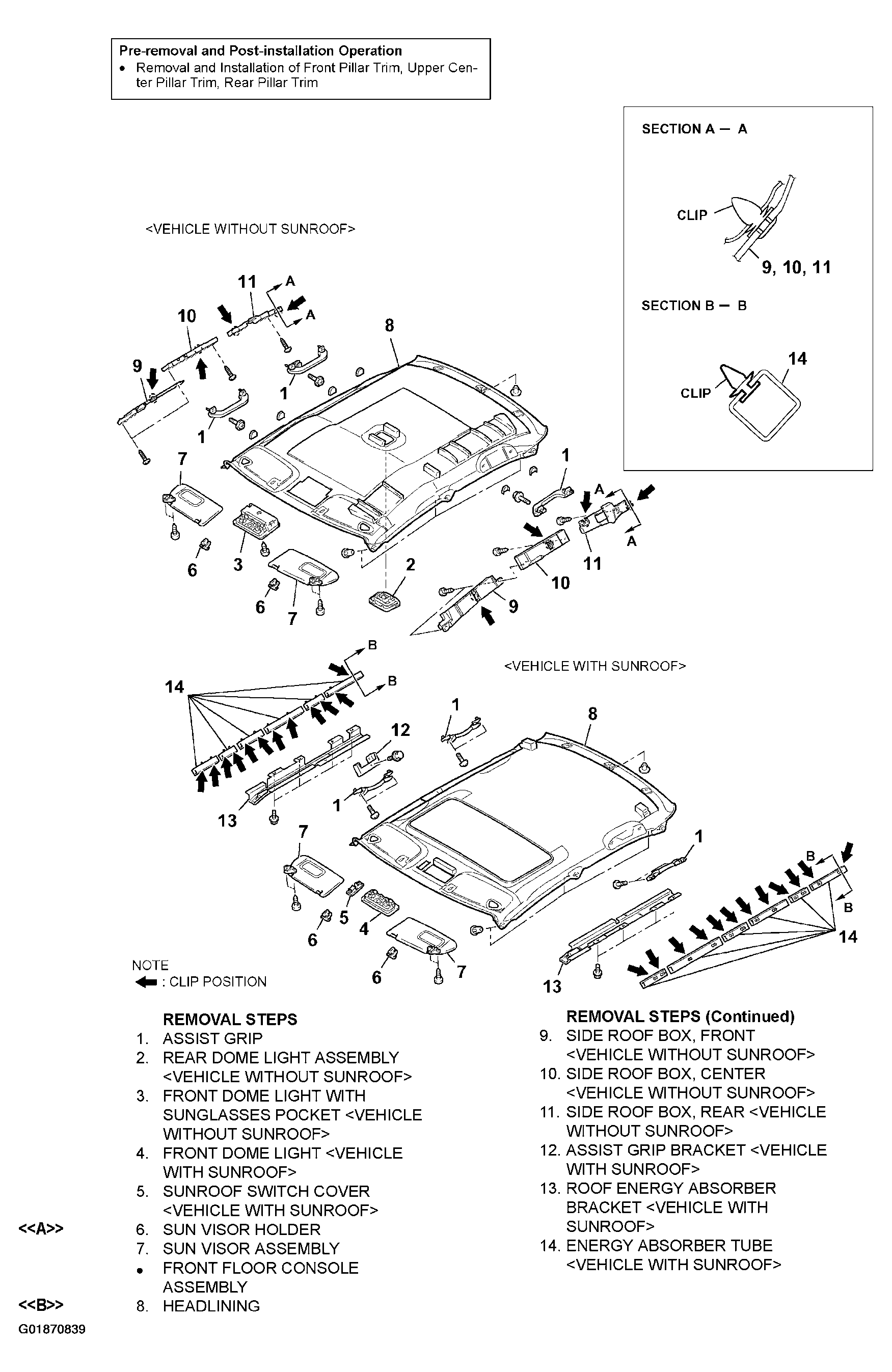

Fig 1: Exploded View Of Headlining
G01870839Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
