DTC 71: Lateral G-Sensor System: Notes

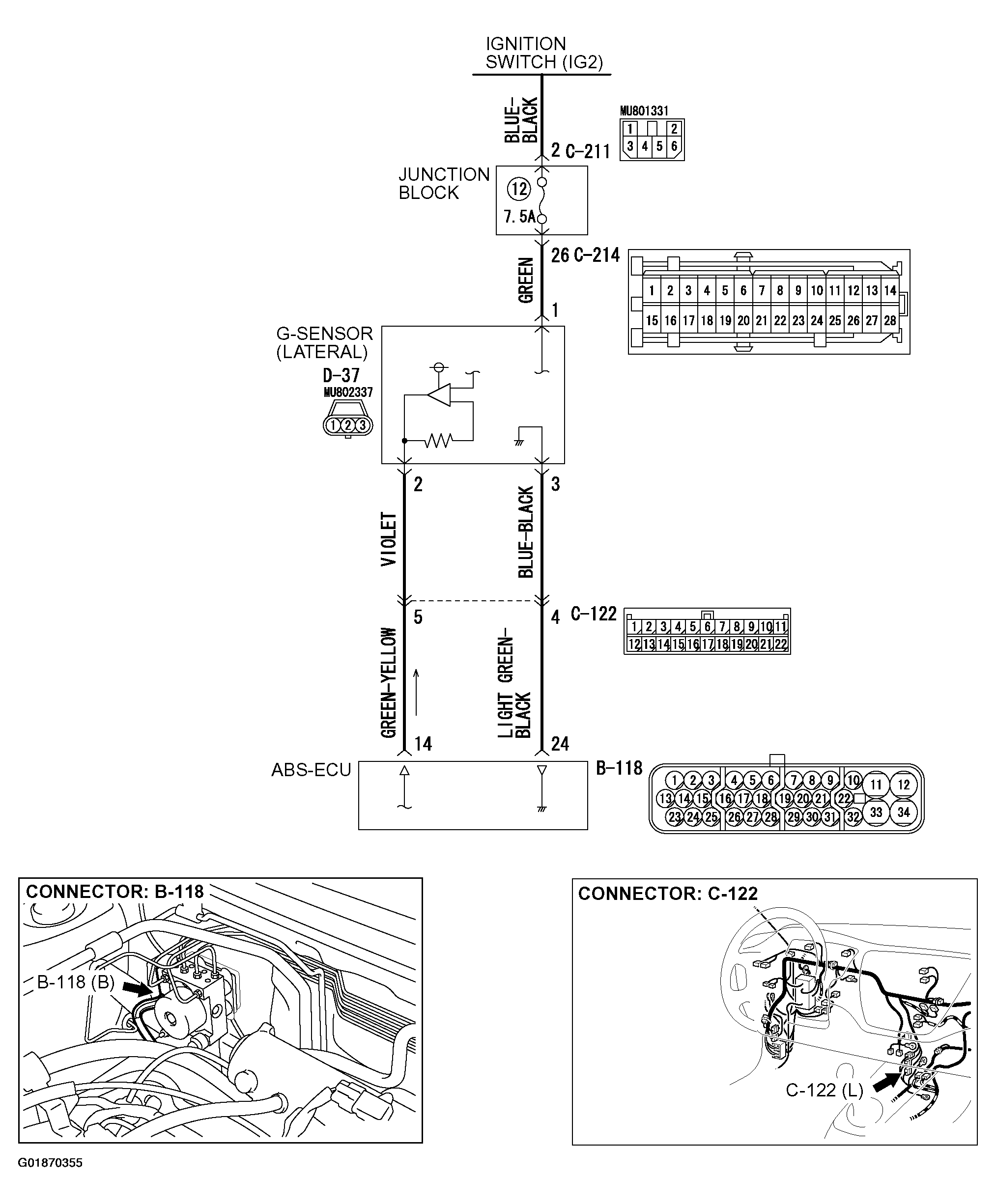

Fig 1: DTC 71 Lateral G-Sensor Circuit Diagram (1 Of 2)
G01870355Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

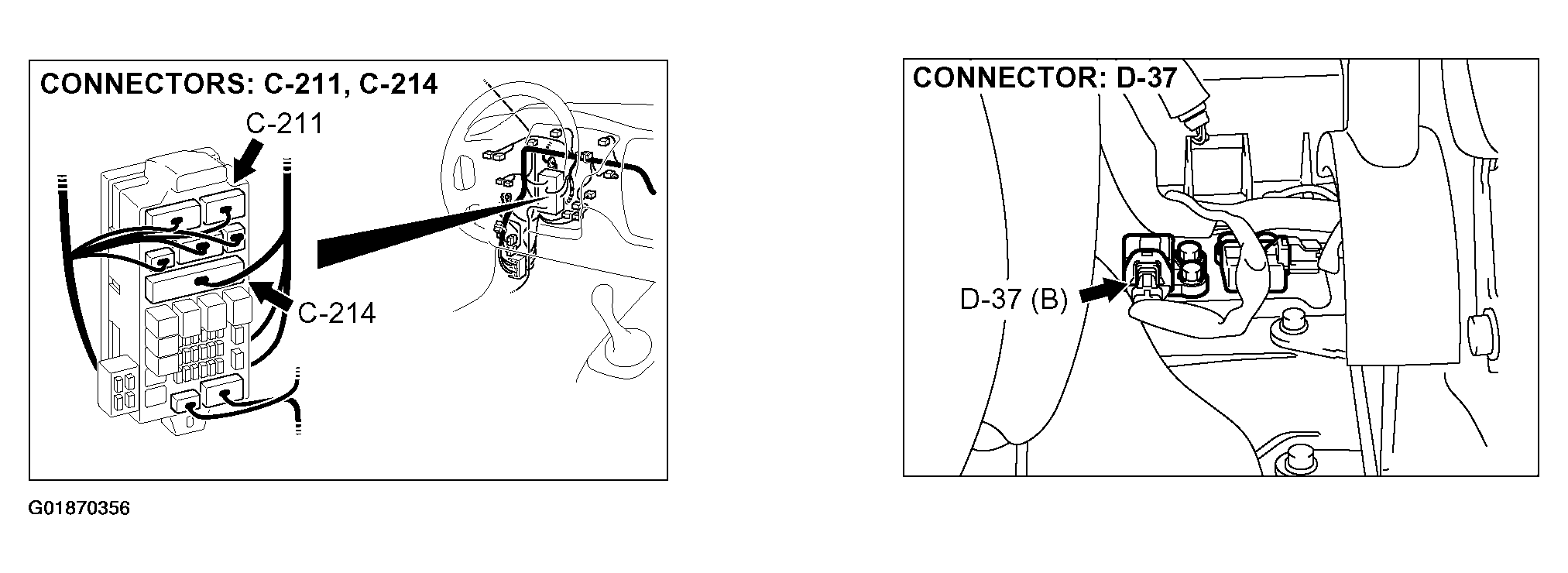

Fig 2: DTC 71 Lateral G-Sensor Circuit Diagram (2 Of 2)
G01870356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
