Removal And Installation

CAUTION:
  • Before removing the steering wheel and air bag module assembly, be sure to refer to AIR BAG RESTRAINT SYSTEMS article.
  • Make sure no oil adheres to the steering angular velocity sensor because a photo interrupters are mounted on the steering angular velocity sensor.

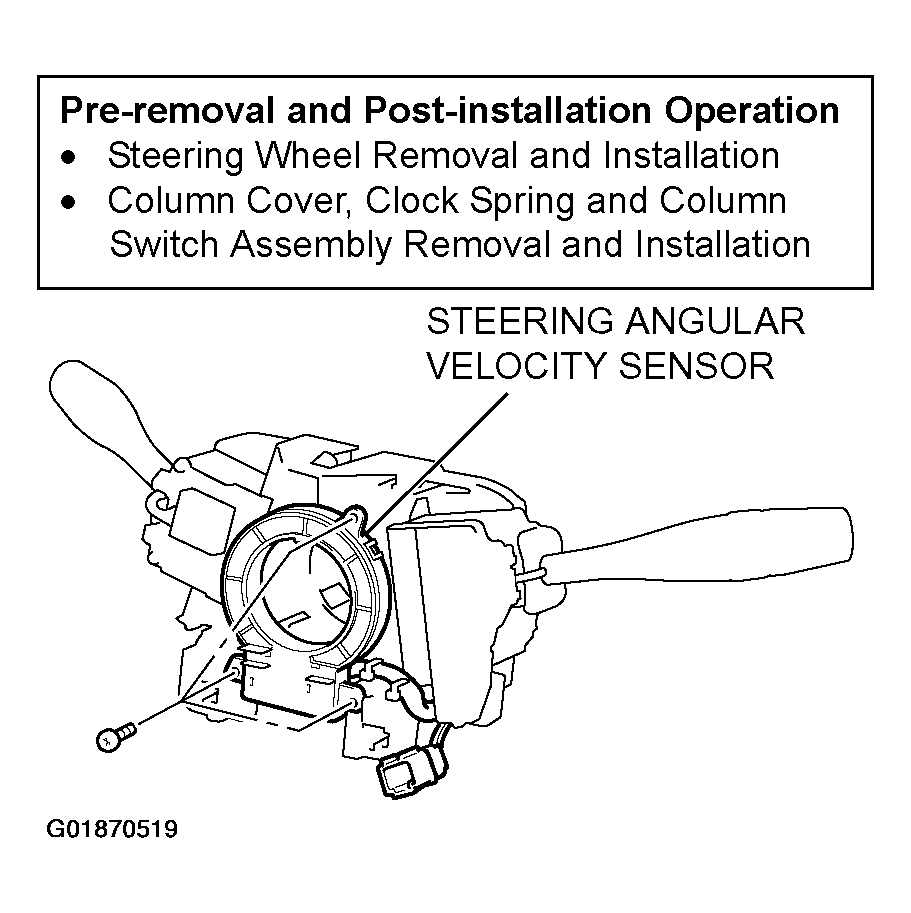

Fig 1: Removing And Installing Steering Angular Velocity Sensor
G01870519Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
