Special Tools: Notes

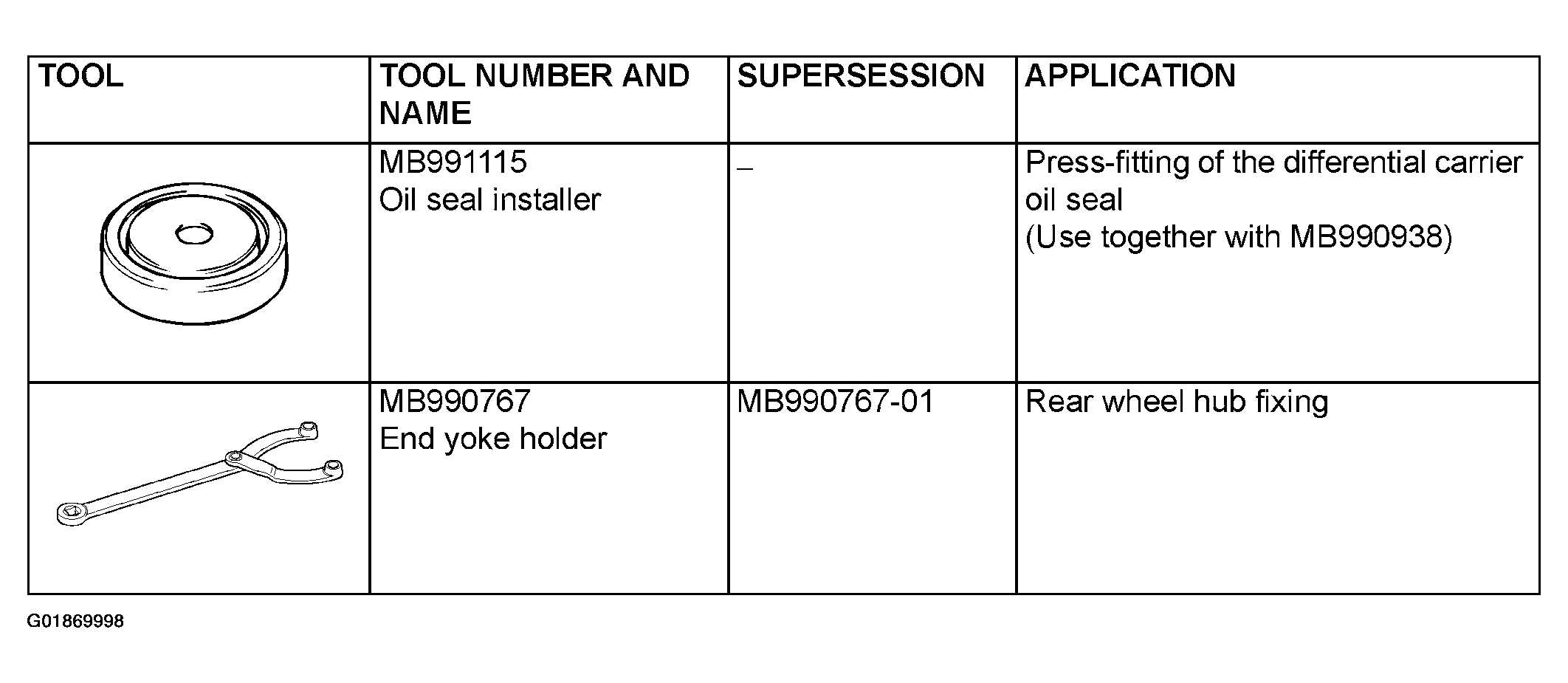

Fig 1: Identifying Special Tools (1 Of 4)
G01869998Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

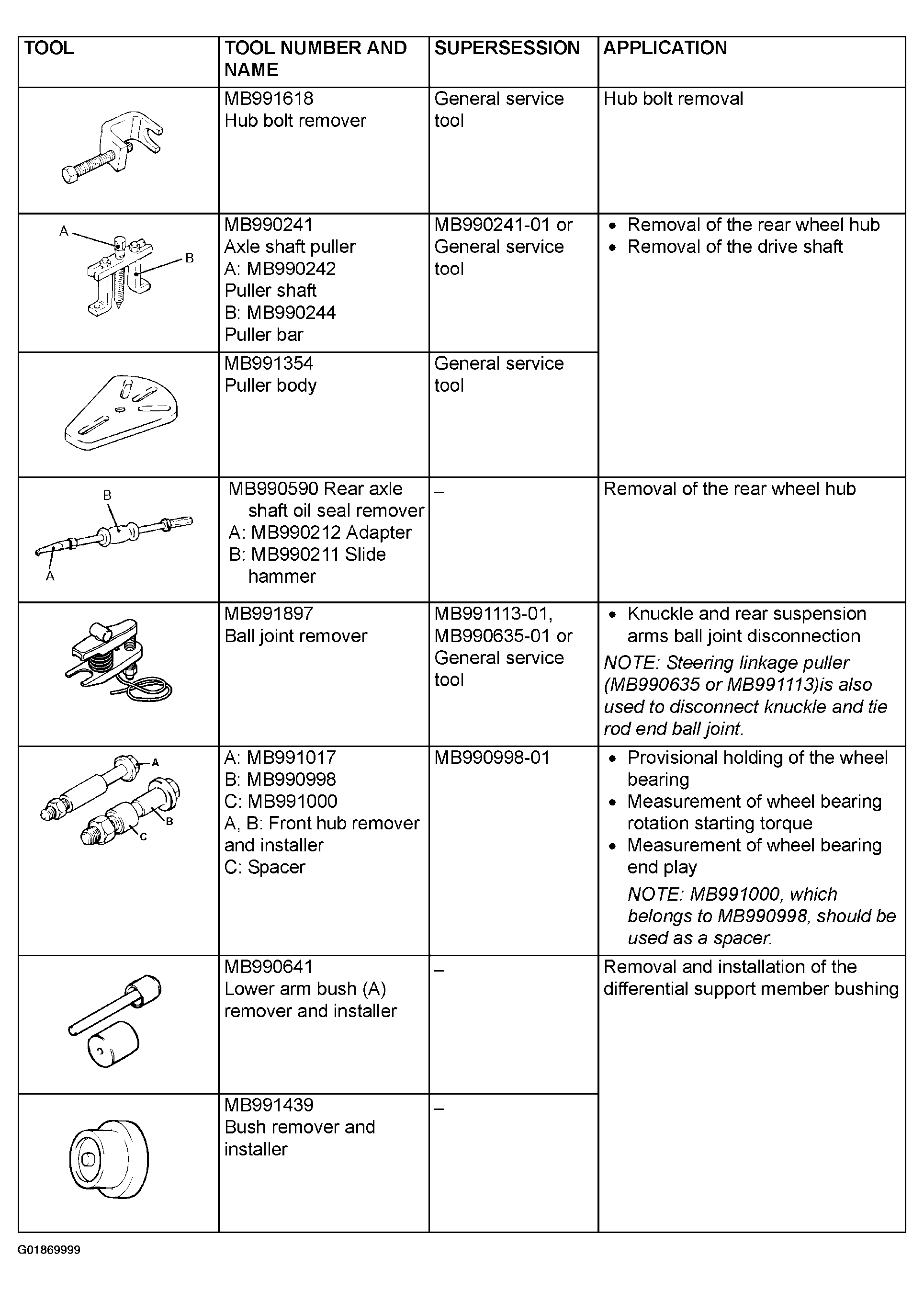

Fig 2: Identifying Special Tools (2 Of 4)
G01869999Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

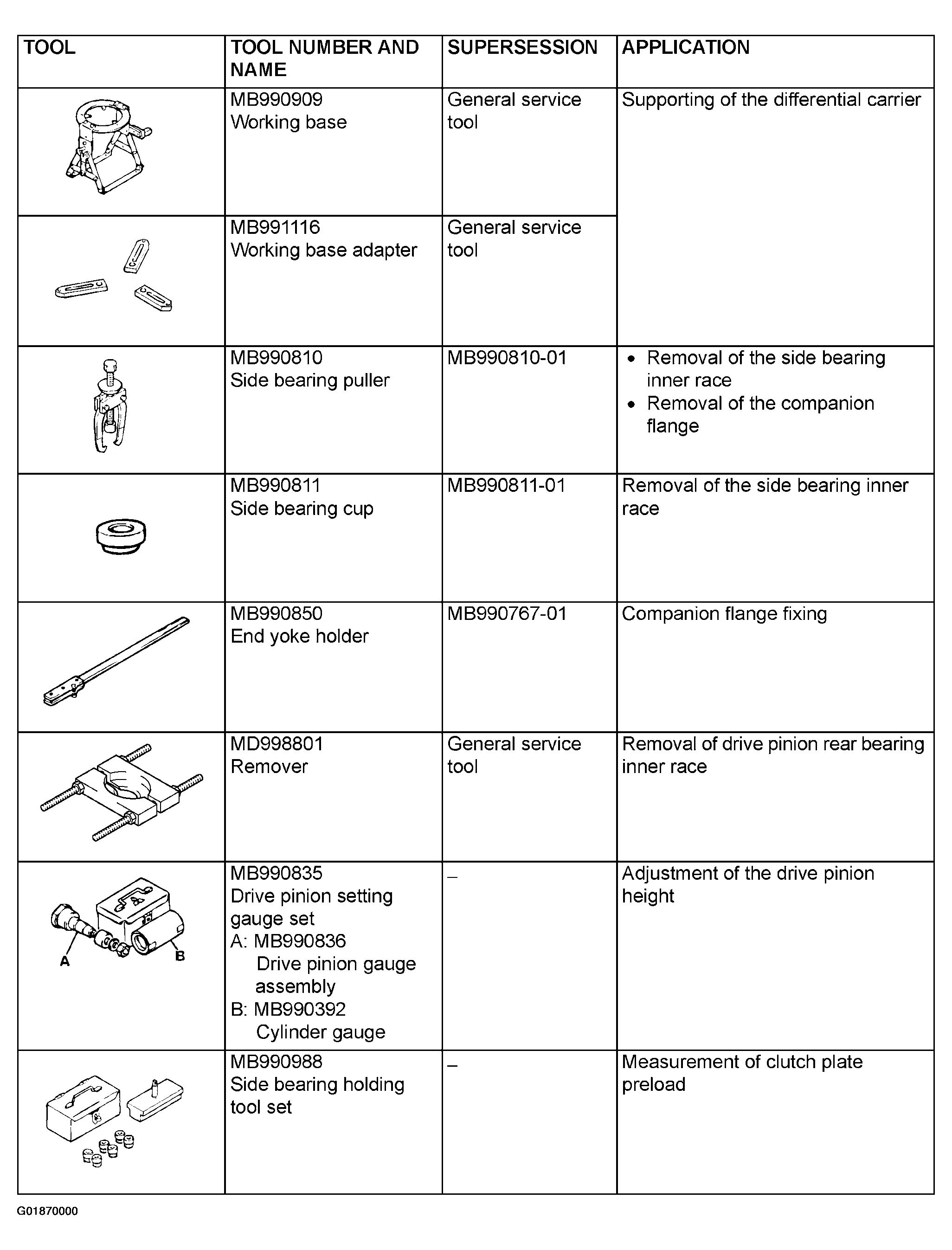

Fig 3: Identifying Special Tools (3 Of 4)
G01870000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

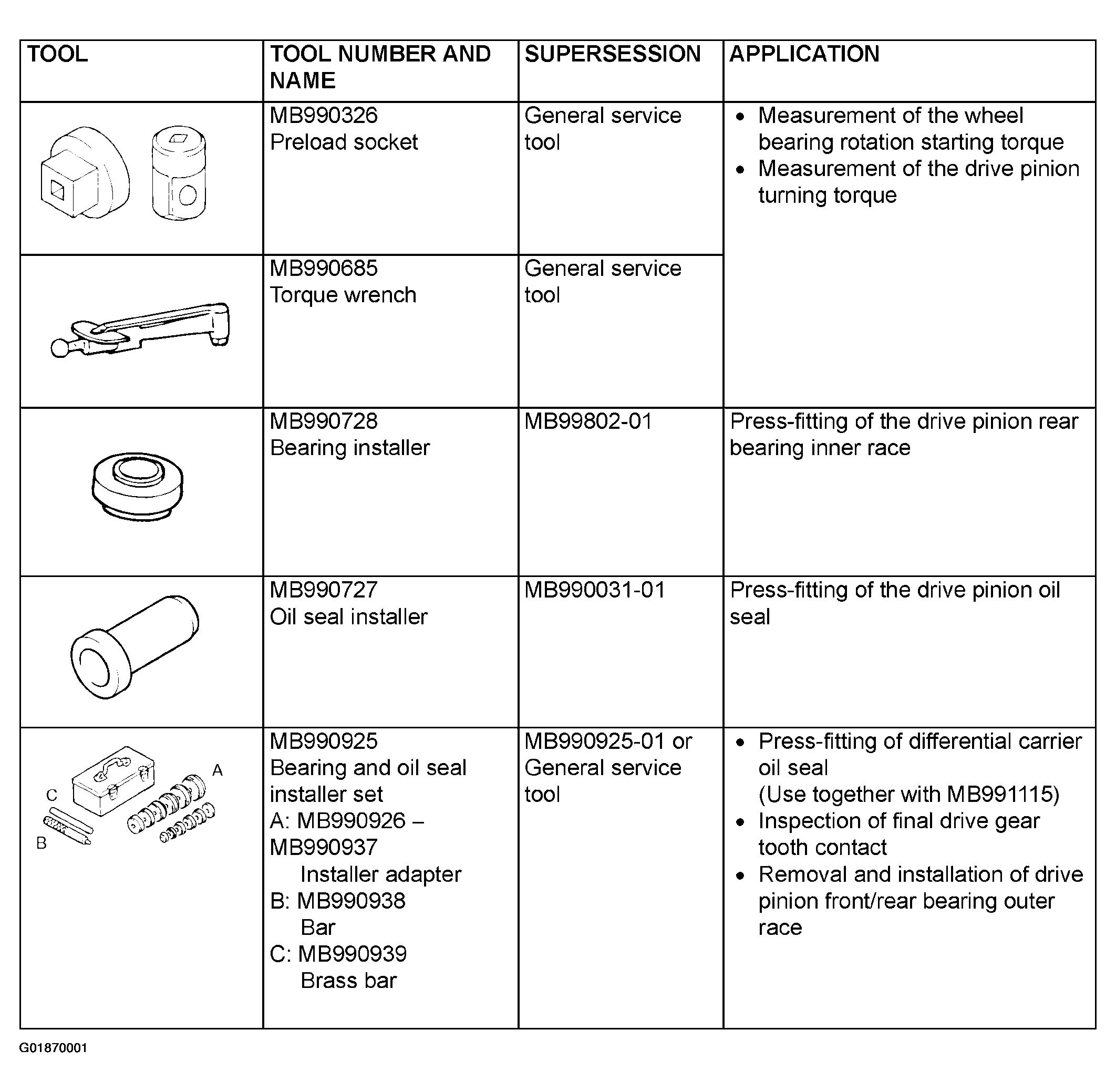

Fig 4: Identifying Special Tools (4 Of 4)
G01870001Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
